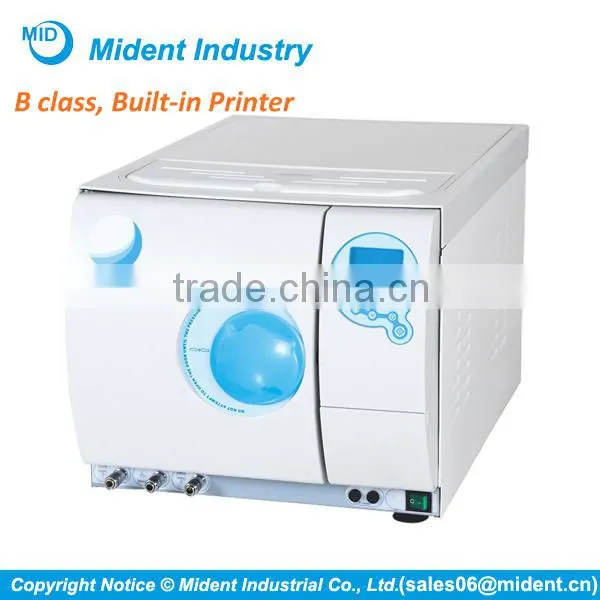

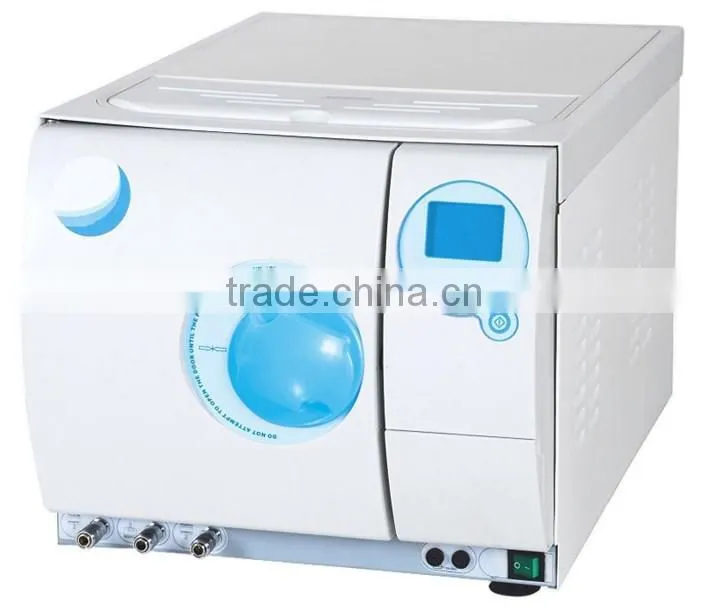

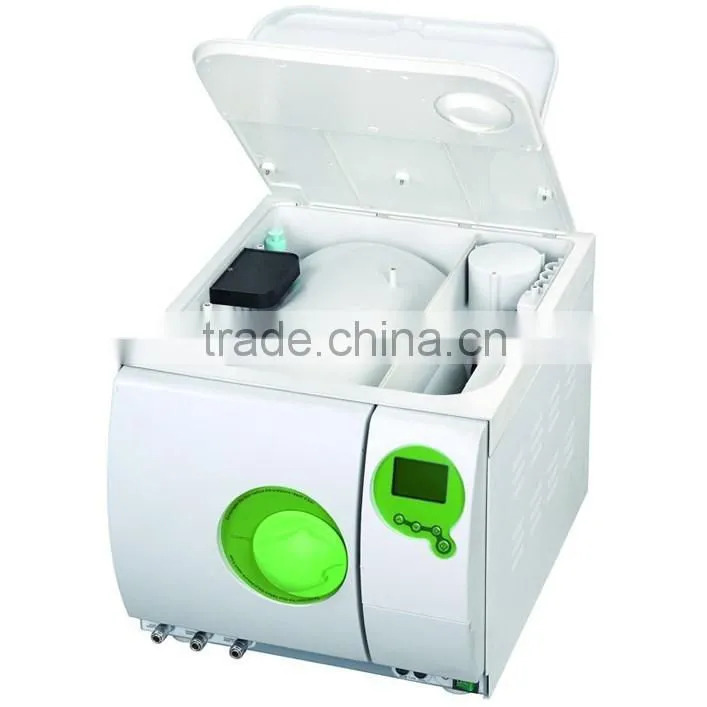

LCD display Dental Autoclave Class B, Medical Autoclave with Built-in Printer

What Features of our Dental Autoclave?

This sterilizer can be used for dental clinic, laboratory, surgical room, emergency room, ophthalmology, gynecology and steam, cosmetic hospital and so on, by doctors and professionals.

Use condition:
1. Power supply:230VAC 50Hz
2. Power supply electric current:10A
3. Ambient temperature:5-40 degree
4. Relative humidity: less than 85%
5. Atmosphere pressure:860Hpa 1060Hpa
6. An earth connection is essential

What Specifications of our Dental Autoclave?

What technical data of our Dental Autoclave?

Main technical specification
1. Inner capacity: 18L Ö245mmX352mm 23L (Ö245 450mm)
2. Rated Voltage: 110V/220V
3. Rated power: 1500VA
4. Pressure/Temperature: 0.90 1.30bar/121 ~122 degree; 2.00 2.30bar/134 ~135 degree
5. Fuse: T10A
6. Water storage tank capacity: 4L must use distilled water. And water temperature must under 40 degree
7. Water volume for one cycle: 0.16L (min) 0.18L (max)
8. Operation temperature: 5-40 degree
9. Outside size:18Liters,441mm width X389mm height X567mm(depth);
                          23liters, 441mm width X389mm height X667mm(depth).
10. Net weight: 18L,47KG; 23L,55KG
11. The board affording weight:4000 N/m2
12. Noise:<45db
13. Available space, size and capacity:190mmX190mmX310mm 12L
14. The maximum capacity of a plate:1000g
15. Water storage tank cleaning and the frequency of water adding: clean the water storage tank once per half a month, you need to add fresh water after every 20 cycles generally.
16. The frequency of water draining: once a day, drain the water once you find "waster water over" during operation.
17. The maximum duration of using loading test: 60min.
18. The maximum thermal radiation energy under the condition of 20 ~26 :<2000J.

Sterilizer chamber:
1. Material: stainless steel (for medical)
2. Max. Work Pressure: 2.5 bar
3. Min. Work Pressure: -0.9 bar
4. Max. Temperature: 145 ºC
5. Chamber volume: 18L(Φ245×320mm) 23L(Φ245×450mm)

Sterilizer steam safety valve:
1. Safety release pressure: 2.45 bar
2. Max. Working temperature: 160 ºC

Packing list

FAQ:

Q: Are you manufacturer, or trading company?

A: We are a OEM/ODM trading company.

Q: Your products are original or copy?

A: All products are original made in China,  or made in Korea, France.

Q: How can i order?

A: We will make quotation after you send us your purchase plan (including product name, model and quantity). If you agree with    the quotation, please send us your company name, address and telephone for goods delivery. We will make proforma invoice and inform you the payment way. Goods delivery details will also be informed accordingly.

Q: What is your payments mode?

A: Mostly payment should be completed by bank transferred T/T 100% in advance.

For sample order less than 1000USD, we will have to charge 30USD extra to compensate media bank charges. Western Union and MoneyGram are also acceptable. USD, EUR and CNY are acceptable.

Q: What is your shipment terms?

A: We often send goods by DHL, FedEx, UPS, TNT, EMS Express; usually 7-15 workdays you can receive goods after send; For the big weight goods, you can choose Air or Sea shipping, usually 30-45 workdays can arrive to your Port.(Exclude unforeseen circumstances, most shipping time is depend on clients country.)

Q: What about the warranty period and after-sale service?

A: Dental equipment, like dental unit, autoclave, air compressor, x-ray unit, has one year warranty period.
If you have problem in using, you can describe the problem details, we will ask technician to give your solution. Free spare parts can be provided if necessary.

Q: Do you supply OEM service?

A: Yes, we can supply OEM service for dental unit. Air compressor, X-Ray unit, dental handpiece,endo files, gutta percha, points, ect.
