competitive price galvanized gabion mesh/welded gabion box/gabion

Name: competitive price galvanized gabion mesh/welded gabion box/gabion
Brand: Zhuoxing
Price: USD $5.2 - 13 / Set

FOB Price

USD $5.2 - $13 / Set

100 Sets(Min.Order)

Supply Ability 3000 Set / Sets per Month
Port Tianjin
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Hebei, China	Brand Name:	Zhuoxing	Model Number:	Gabion Box
Material:	Other, Low-Carbon Iron Wire, Low-Carbon Iron Wire	Type:	Welded Mesh	Application:	Gabions
Hole Shape:	Hexagonal	Aperture:	60*80mm	Wire Gauge:	2.0mm-5.0mm

Product Description

competitive price galvanized gabion mesh/welded gabion box/gabion

Product Description

1.Gabion Basket

Gabion is Also known as double twisted Grid, Green Grid, honeycomb retaining wall, galvanized wire stone cage and so on and can be named gabion mattress , stone gabion box , Stone cage ,gabion mesh,gabion wall.

Welded gabion Wire Diameter:
(1) Mesh wire diameter range: 2mm-4mm
(2) Edge wire diameter range: 2.7mm-4.4mm
(3) Binding wire diameter range less than mesh wire, in 2.2mm generally.
Wire tensile strength: not less than 38kg/m2, 380N/mm.

2. Surface Treatment Power Coated:

a. Hot-dipped galvanized , Mass of Zinc Coating , Up to 300g/m²

b. PVC Coated Mattresses and gabion baskets are also available with a 0.5mm nominal thickness P.V.C. coating to enhance the resistance of the baskets to corrosion of the wire mesh. This provides a overall increase in diameter of 1mm to all wires used in the manufacturing process.

c. Galfan, 95% zinc, 5% aluminum

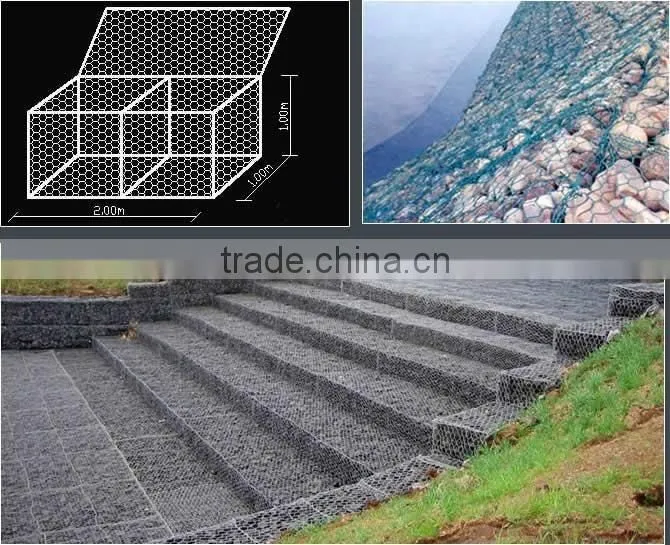

3.Gabion Basket Dimension in details

Accessories available for Assembling gabion basket
Lacing Wire, Spirals,U Clipses, Pliers, Manual C-Ring Tools, Pneumatic C-Ring Tools, C-Rings are available,if requested.

.WIRE THICKNESS SPECS

Characteristics	Metallic coated	PVC coated	Metallic coated	PVC coated
Mesh type	8*10cm		6*8cm
Mesh openings	83mm x 114mm 8 x 10	83mm x 114mm 8 x 10	64mm x 83mm 6x8	64mm x 83mm 6x8
Mesh wire	2.7mm (0.106 in.)	3.05mm( 0.120 in.)	2.2mm (0.087 in.)	2.2mm (0.087 in.)
Selvage wire	3.4mm (0.134 in.)	3.8mm (0.150 in.)	2.7mm (0.105 in.)	2.7mm (0.105 in.)
Lacing wire	2.2mm (0.087 in.)	2.2mm (0.087 in.)	2.2mm (0.087 in.)	2.2mm(0.087 in.)

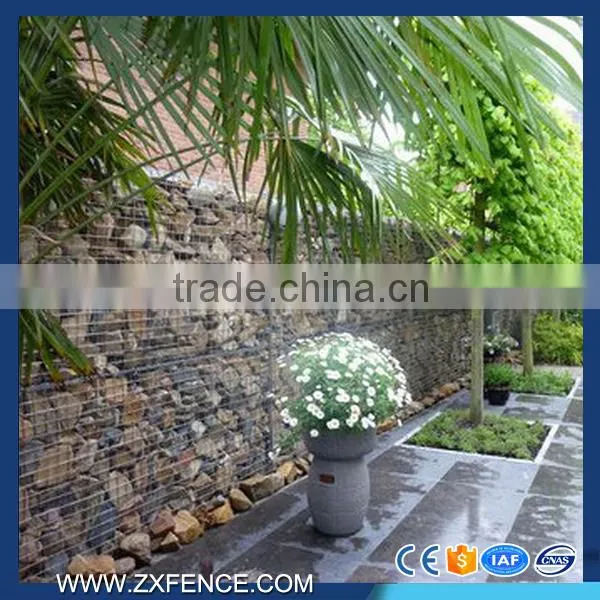

4.Gabion wire mesh application:

Gabion Box with its good corrosion resistance and oxidation resistance, serves well as strengthening,protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries

5.Gabion mattress specification:

Opening (mm)	Wire Diameter (Metal Wire) (mm)	Wire Diameter (PVC Coated) Inner/Outside(mm)
60X80	2.0-2.8	2.0/3.0-2.5/3.5
80X100	2.0-3.2	2.0/3.0-2.8/3.8
80X120	2.0-3.2	2.0/3.0-2.8/3.8
100X120	2.0-3.4	2.0/3.0-2.8/3.8
100X150	2.0-3.4	2.0/3.0-2.8/3.8
120X150	2.0-4.0	2.0/3.0-3.0/4.0

PVC Coated Gabion Basket/Gabion Box

Packaging & Shipping

Gabion basket and gabion box package:

Moisture paper and plastic paper, then into carton, or according the customer's requirement.

Our Services

1.We could make small samples for customer before the order according to your request.

2.We will choose high quality and low price the shipping company.

3.lf client come to visit the company, we shall pick you up at Beijing airport, arrange hotels, and send you return to the airport on time.

Contact Us

Hebei Zhuoxing Metal Wire Mesh Products Co., Ltd.: Contact nameYuejun Song; Phone86-318-8557702; Address500M South Cuianpu Village Anping County Hengshui,Hebei
