Welded gabion box/gabion mattress /gabion basket/gabion for philippines

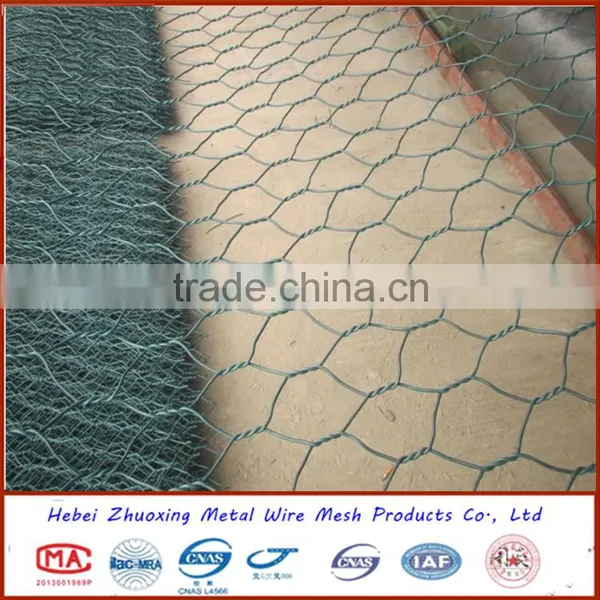

Are made of hexagonal double twist woven wire mesh
1.Gabion Basket
Our Gabion Basket mesh is hexagonal in shape meeting with the 80×100 mm mesh aperture for gabions, with a mesh wire diameter of 2.7mm and selvedge wire of 3.4mm diameter(standard dimension, other size is also avaible at your requirements). Contact us also for welded mesh gabion material as well.

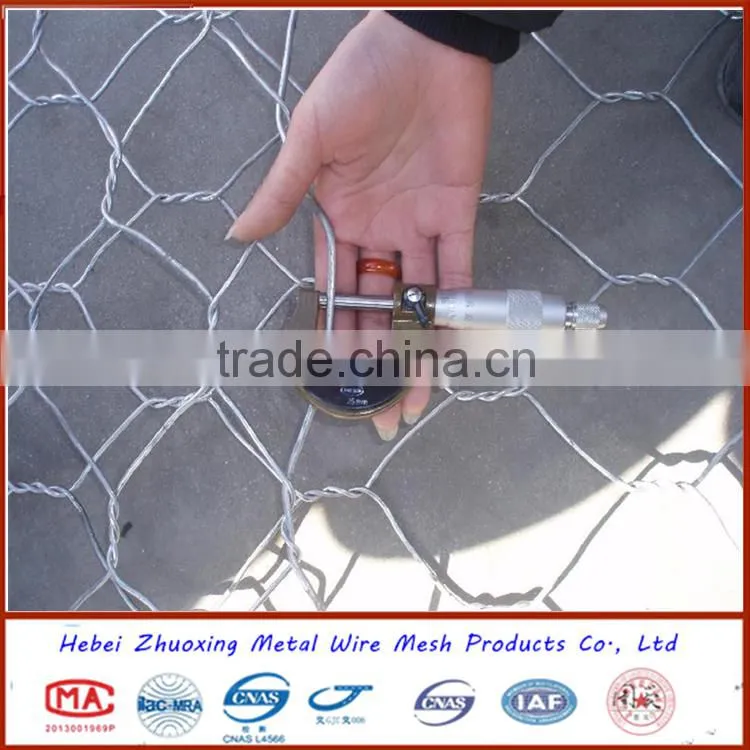

Welded gabion Wire Diameter:
(1) Mesh wire diameter range: 2mm-4mm
(2) Edge wire diameter range: 2.7mm-4.4mm
(3) Binding wire diameter range less than mesh wire, in 2.2mm generally.
Wire tensile strength: not less than 38kg/m2, 380N/mm.
2. Surface Treatment Power Coated:
a. Hot-dipped galvanized , Mass of Zinc Coating , Up to 300g/m2

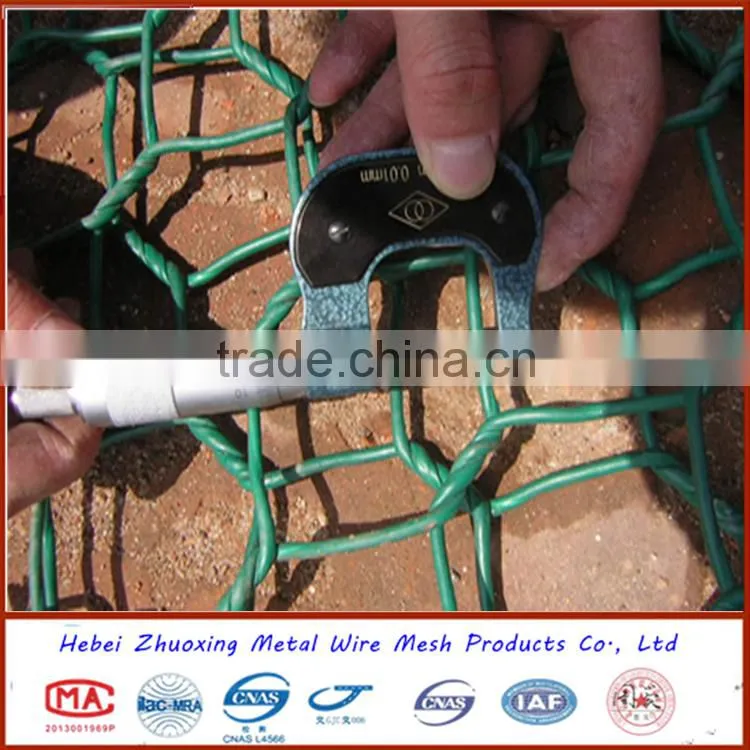

b. PVC Coated Mattresses and gabion baskets are also available with a 0.5mm nominal thickness P.V.C. coating to enhance the resistance of the baskets to corrosion of the wire mesh. This provides a overall increase in diameter of 1mm to all wires used in the manufacturing process.
c. Galfan, 95% zinc, 5% aluminum
3.Gabion Basket Dimension in details
Accessories available for Assembling gabion basket
Lacing Wire, Spirals,U Clipses, Pliers, Manual C-Ring Tools, Pneumatic C-Ring Tools, C-Rings are available,if requested.
.WIRE THICKNESS SPECS
Characteristics |
Metallic coated |
PVC coated |
Metallic coated |
PVC coated |
Mesh type |
8*10cm |
6*8cm |
||
Mesh openings |
83mm x 114mm 8 x 10 |
83mm x 114mm 8 x 10 |
64mm x 83mm 6x8 |
64mm x 83mm 6x8 |
Mesh wire |
2.7mm (0.106 in.) |
3.05mm( 0.120 in.) |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
Selvage wire |
3.4mm (0.134 in.) |
3.8mm (0.150 in.) |
2.7mm (0.105 in.) |
2.7mm (0.105 in.) |
Lacing wire |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
2.2mm (0.087 in.) |
2.2mm(0.087 in.) |
4.Gabion wire mesh box type:
Double twisted hexagonal

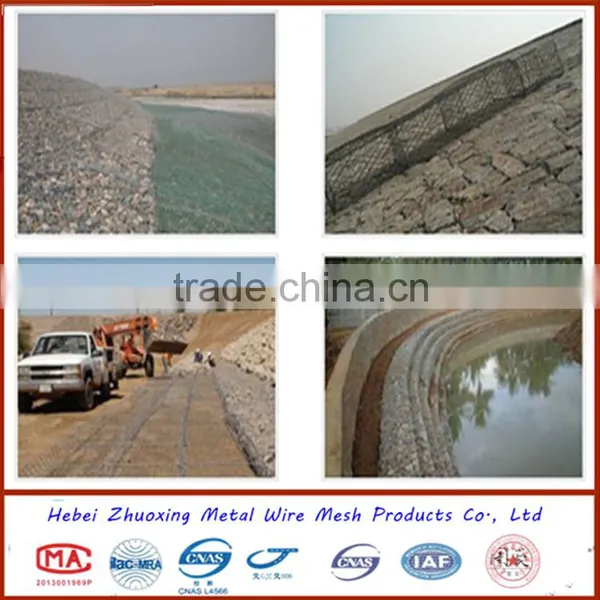

5.Gabion wire mesh application:

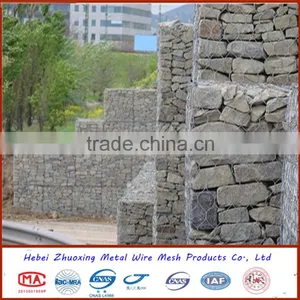

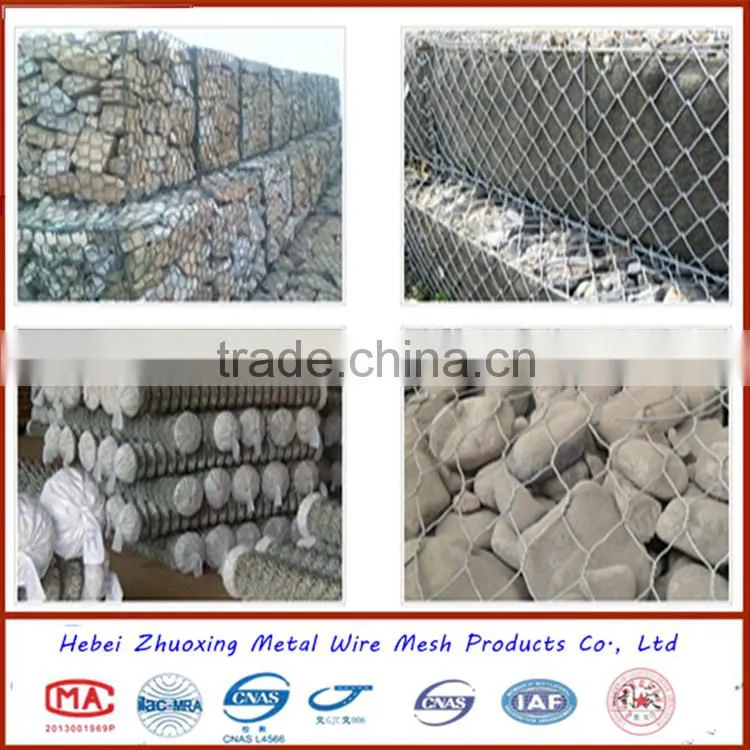

Gabion Box with its good corrosion resistance and oxidation resistance, serves well as strengthening,protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries
6.Gabion mattress specification:
Opening |
Wire Diameter (Metal Wire) (mm) |
Wire Diameter (PVC Coated) Inner/Outside(mm) |
60X80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
80X100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
80X120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
100X120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
100X150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
120X150 |
2.0-4.0 |
2.0/3.0-3.0/4.0 |

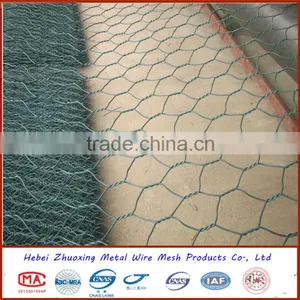

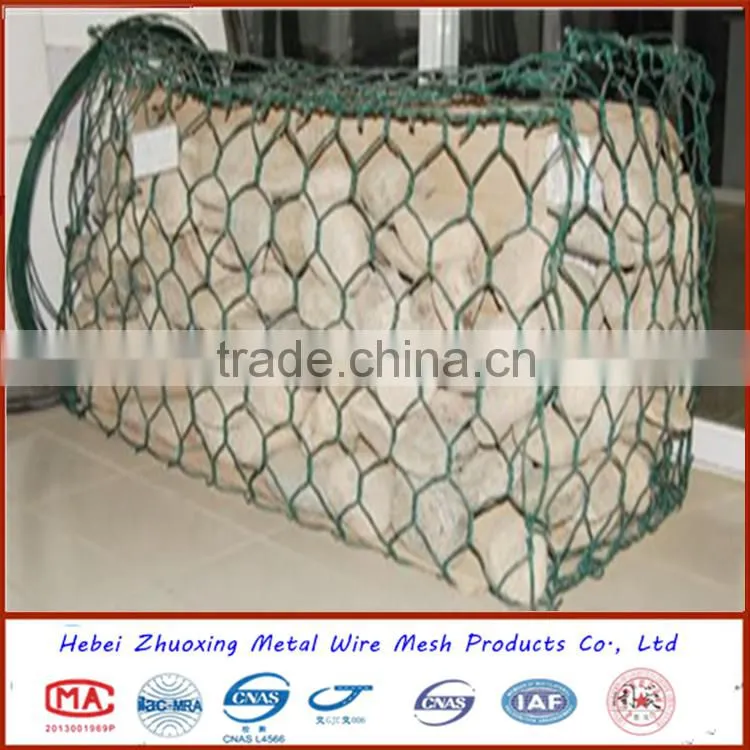

PVC Coated Gabion Basket/Gabion Box

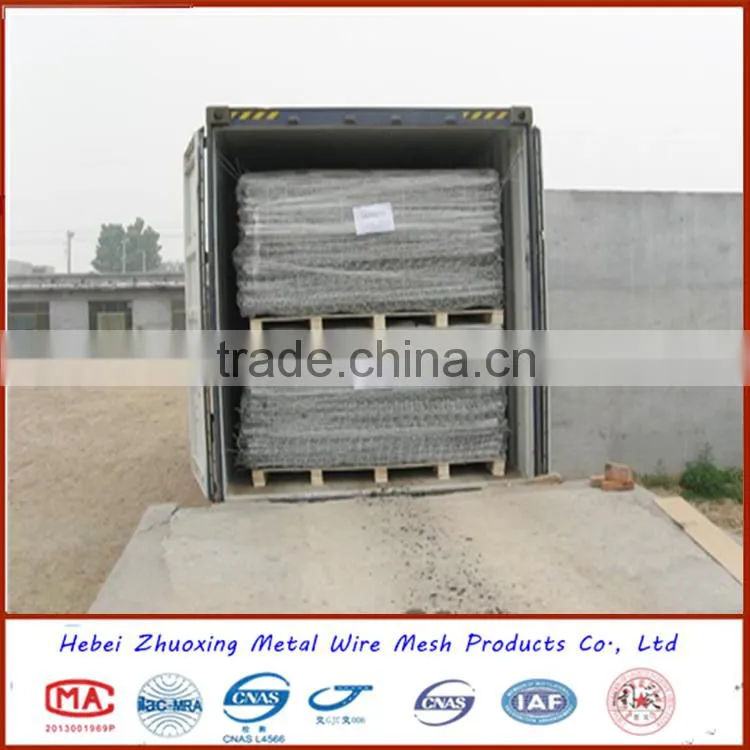

Gabion basket and gabion box package:
Moisture paper and plastic paper, then into carton, or according the customer's requirement.
- 15-18 hours on-line service
- High quality products with competitive price
- We could make small samples for customer before the order according to your request.
- Packing as your request, with photo before shipment
- We will choose high quality and low price the shipping company.
- Strict inspection before delivery,to ensure product safety,quick to arrive at the designated ports.
- lf client come to visit the company, we shall pick you up at Beijing airport, arrange hotels, and send you return to the airport on time
Hebei Zhuoxing Metal Wire Mesh Products Co.,ltd
Business type: |
Manufacturer / Exporter
|
||
Established time |
2011
|
Occupation Area(M²) : |
18000m2 |
R&D staff |
10 |
Number of employees |
120 |
Certification |
SGS,ISO9001,CE & TUV etc |
||
Main product |
Fence: Welded wire mesh fence, 358 fence, chain link fence, temporary fence, crowd control fence etc. Wire:black iron wire,galvanized iron wire,pvc coated wire and so on Mesh panel:welded wire mesh, reinforcing mesh ,building wire mesh and so on. |
||
Our principle |
Engaged, sincerely |
||
Main market |
Australia, Europe, Japan, USA, South American, etc.
|
||
Payment term:T/T,30% as deposit, the balance will against the copy of B/L.
MOQ: 200 sets. We can negotiate this.
Delivery time: within 15 days after receiving your deposit.
