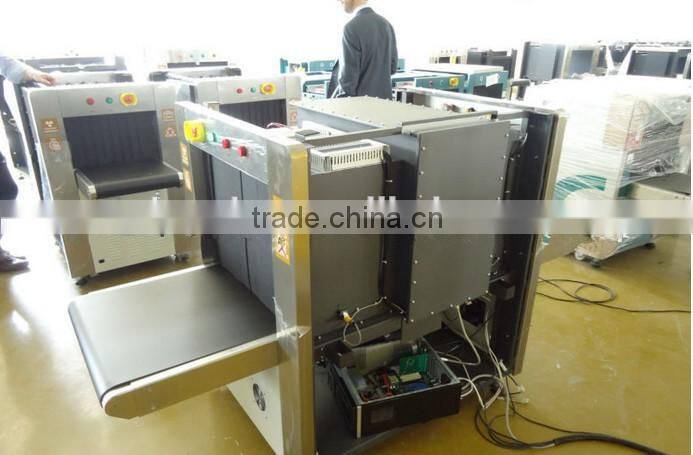

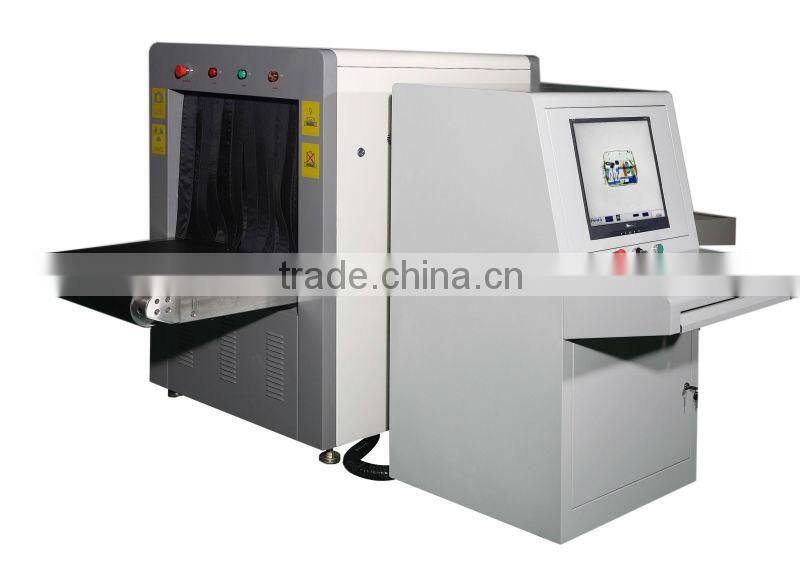

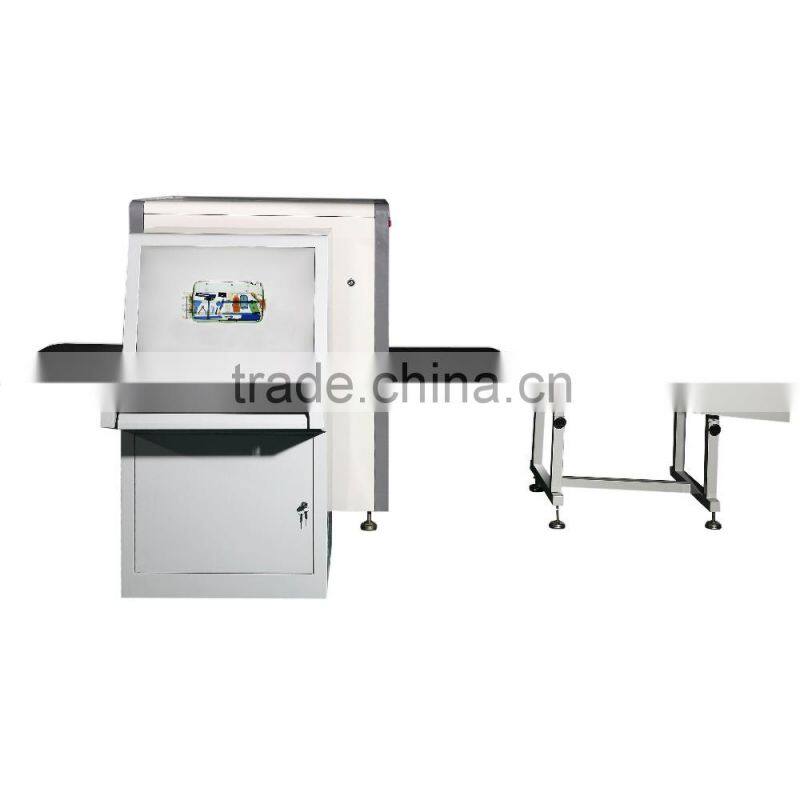

High Quality Airport&train Station Baggage/cargo Inspection X-ray Machine, x Ray Luggage Scanner PD-5030A

 X ray baggage scanner
Model: PD-6550 ------Typical Steel penetration 34mm

General Specification
 Tunnel Size: 650(W)*500(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170kg
Dose per Inspection <1.4Gy/h
Resolution < 0.0787mm Copper Wire
Spatial resolution Level: dia1.0mm, Vertical: dia1.0mm
Penetrate resolution: Dia 0.254mm
Penetration: 34mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)

X-ray Generator
Generate direct: Upward
Generate anger: 80 degree
Anode Voltage: 100~160Kv Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%

Image System
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image lightening,,    reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects : organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy : switch from high energy to low energy
Assist to detect drug and explosive powder

Installation Data
Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity:  -20℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.0 KW (max), 0.7KW(working)
Noise: <58db
