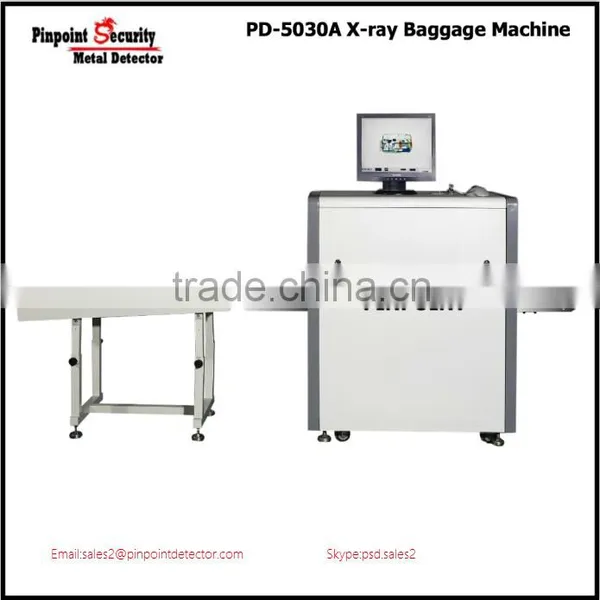

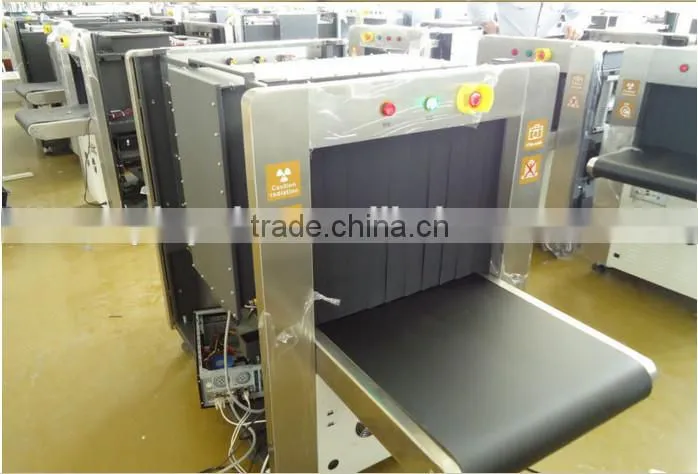

PinPoint brand model
PD-5030A- Typical Steel penetration 32mm
X RAY baggage scanner | X-RAY luggage scanner
Designed to thwart the cleverest attempts at hiding weapons, drugs, stolen goods and other contraband, PD-5030a X-ray inspection systems are ideal for screening everything from small packages to oddly shaped items and palletized loads.
Excellent system for schools, hotels, convention centers and event-based security requirements
Tunnel Size: 500(W)*300(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150kg
Dose per Inspection: <2.9 μGy/h
Resolution: <0.101mm Metal Wire
Spatial resolution: Level: dia1.0mm, Vertical: dia1.3mm
Penetrate resolution: Dia 0.511mm
Penetration: 32mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)
Image System
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor: 2 units, High Resolution Color, LCD Accord, 19 inch, operation desk(optional)

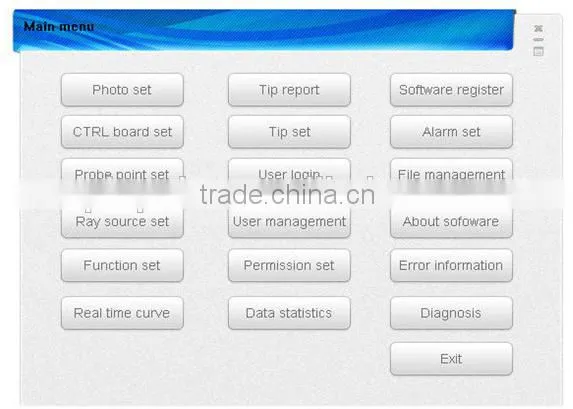

Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy: switch from high energy to low energy
Assist to detect drug and explosive powder
Installation Data
our other models:
We produce different size of X ray baggage scanner to satisfy various customers:
Tunnel Size:
1. 1000(Width) * 1000(Height)mm
2. 1000(Width) * 800(Height)mm
3. 800(Width) * 650(Height)mm
4. 650(Width) * 500(Height)mm
5. 500(Width) * 300(Height)mm
Advantages:
1. High penetration: range from 8mm to 34mm
2. Penetration: 0.0787 copper wire
3. Few leakage: 0.05 Gy/h (at a distance of 5cm From external housing)
4. Conveyor Max Load: 50kg to 200kg
5. Color image: Orgnaic in orange, Inorganic in blue, Mixture in green.
6. Protective cover on lead curtain to avoid lead pollution; 7. Sound and light alarm; 8. Local network supported;
Delivery time:
1. within 3 working days (When there is stock)
2. One week (When there is no stock)
Applications:
1. Commercial buildings;
2. Factories(to find needle in clothing, shoes, bags)
3. Courthouses;
4. Embassies;
5. Government buildings;
6. Military installations;
7. Prisons;
8. Hotels;
9. Schools;
10. Convention centers;
11. Security checkpoints.
