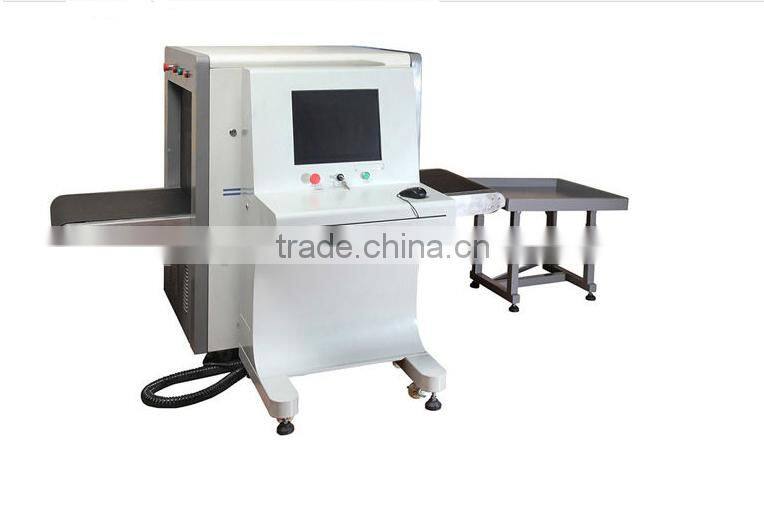

Airport x ray baggage scanner with competitive x ray machine price PD-6550

AT-6550 middle size x-ray baggage scanner for airport

The AT6550

is an advanced X-ray scanner machine capable of detecting organic

and inorganic items such as weapons,explosives and narcotics using different colour software

which significantly enhances the operator’s ability to identify suspicious item.

The SECU SCAN AT6550

has a tunnel of 65cm width and 50cm height that will easily

Accommodate the inspection of hand luggage and parcels. It uses a high resolution x ray detector array that increases detection sensitity, improves image resolution and optimizes image

Presentation.

Machine Specifications of x-ray baggage scanner:

Tunnel Size: 650(W)*500(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 170kg

Dose per Inspection: <1.4 μGy/h

Resolution: <0.0787mm Metal Wire

Penetration: 34mm Steel

Film Safety: Guarantee ISO1600 Film

X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)

Generate direct: Upward

Generate angle: 80 degree

Anode Voltage: 100-160Kv

Anode power: 0.4 to 1.2mA

Cooling / Duty Cycle: Oil Cooling /100%

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

Monitor: High Resolution Color, LCD Accord, 17 inch

Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

Image Grey Level: 4096

Image Max Resolution: 1024 * 1280 pixel

Image Processing: 24bit for processing real time

Image storage: Storage more than 100000 pictures in real time

Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)

Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)

Operation Power: 220VAC(±10%)50±3Hz

Power Consumption: 1.0 KW (max), 0.7KW(working)

Noise: <58db

Simple User-friendly operation and automatic Self-diagnostic.

Certificates of x-ray baggage scanner:

1. Strict Quality Control, Double Test In Engineering And Producing
2. Spare Parts Guaranteed
3. High Performance Network
4. Test Report From Inspection Center Of State Security Ministry
5. CE Certificate
6. ISO9001 Certificate
7. ISO14001 Certificate
8. Radiation Safety Certificate From Chinese Government
