Pinpoint factory 2016 Best fashion walk through metal detector gate with 33 zones.cheap walk through metal detector

Shenzhen Pinpoint Technology.,co.,ltd

Manufacturer for

33 Independent  zones Walk Through Metal Detectors

PD6500with wholesales price

Features:

• 33 pinpoint zones to precisely identify multiple target locations from head to toe on the left, center and right sides of the body.

• 22 standard programs for security application versatility.

• International security standards—The PD 6500i meets the world's highest test certifications.

• Dual detection: with transmitters and receivers in each panel, the
  PD 6500i is the equivalent of two detectors in one. By scanning from
  both sides, the PD 6500i provides superior detection, uniformity and
  performance.


• Advanced broadband detection technology provides superior target analysis, ferrous and non-ferrous weapons detection, discrimination and higher throughput.


• Directional counter with four settings for counting (forward, reverse, subtract in reverse, and bi-directional).

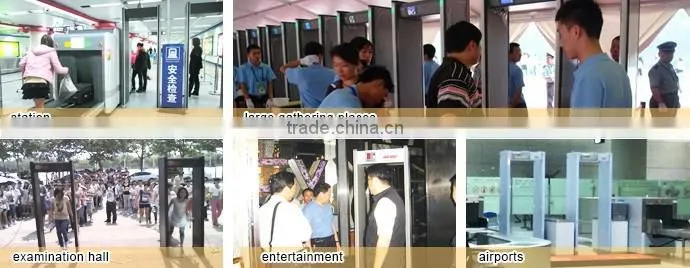

• Superior versatility: selectable settings designed for airports, courthouses, prisons, schools, facilities, special events, mass transit, loss prevention and many other applications.


• Networking ability: CMA provides networking, remote control, monitoring, data analysis and group management.


• Meets IP55 standards for moisture and foreign matte protection.


• Limited 24-month warranty: parts and labor.

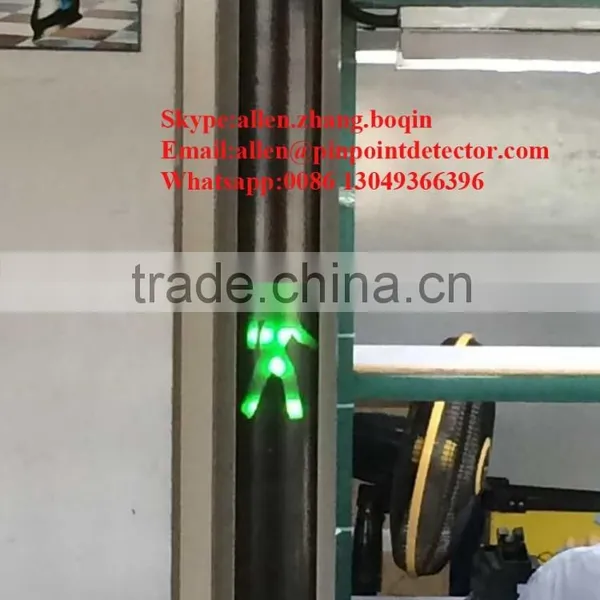

• Pacing lights at the entrance display universal  "wait" and "proceed" symbols for traffic
• Specifications



  Temperatures Operating: -4º F (-20º C) to +140º F (60º C) Humidity to 95% non condensing Storage: -40º F (-40º C) to 158º F (70º C) Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 55 watts; no rewiring, switching or adjustments needed. Weatherproofing / Foreign Object Protection Standards Meets IP 55, IEC Standard. "Degrees of Protection provided by Enclosures," IEC 529. *IP 65 optional. Target Pinpointing Lights Thirty-three (33) distinct zones are displayed with two (2) independent columns of LEDs located on exit side of PD 6500i. Programs Over Twenty (20) independent programs designed to meet all installation- specific requirements including ECAC requirements for European airports and TSA requirements for U.S. airports. Interference Suppression Advanced analog and digital filtering—as well as adjustable operating frequencies—eliminate the potential effects from x-ray units, radios and other electrical interference sources. Directional Counter Counter tracks the number of patrons that have passed through the  detector, the direction of patrons, the number of alarms and calculates alarm percentage. Four directional count settings (forward, reverse, subtraction reverse and bi-directional). Random Alarm Feature Provides ability to randomly alarm on a selected percentage of non-alarming persons; adjustable from 0 to 50 percent. Alarms Audible tone and volume adjustable. Bright LED visual alarm. Pacing Lights International symbols located at entrance. Tamper-Proof All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics. Control Outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices. Construction Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum. Warranty 12 months, Limited parts and labor




  Dimensions


  Passageway Interior Size

  Width 30" (0.76 m)

  Height 80" (2.03 m)

  Depth 23" (0.58 m)

  Overall Exterior Size

  Width 35" (0.90 m)

  Height 87" (2.21 m)

  Depth 23" (0.58 m)

   ;

•

•
