Compound Die Stamping

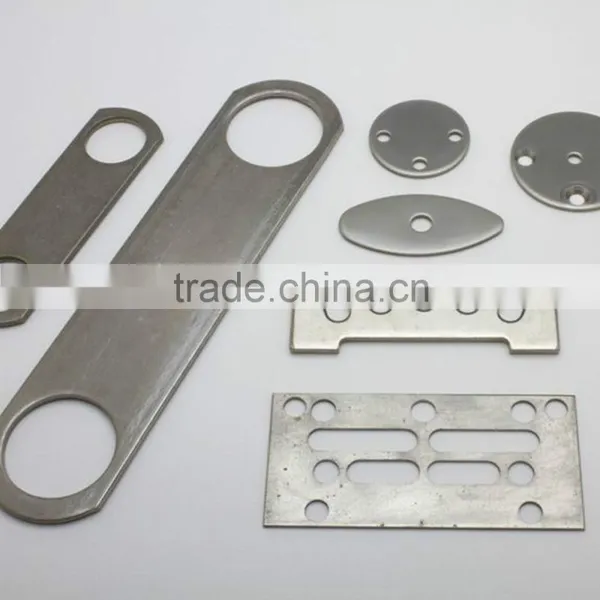

Compound Die Stamping photo-1

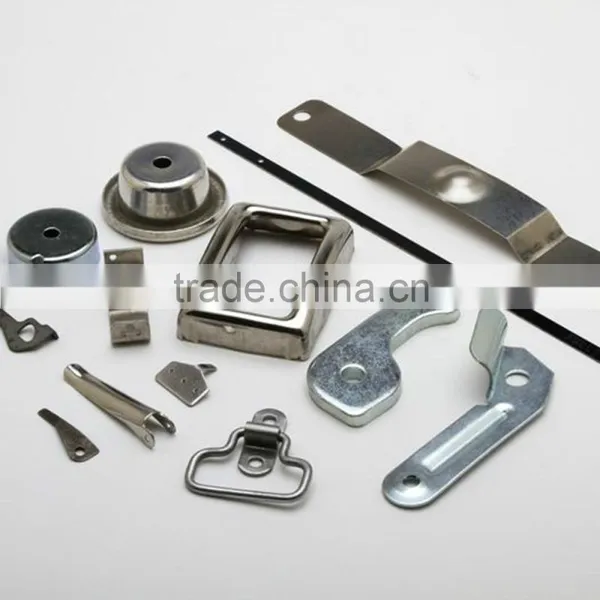

Compound Die Stamping photo-2
Negotiable MOQ: 3000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Aoerka
Model Number:
AS009
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Aoerka
Model Number AS009



Specifications
Press Rating
10 - 250 tons

Production Volume

100 to unlimited

Press Speed

80 cycles/min

Maximum Press Stroke

14”

Maximum Press Bed Length

42”

Maximum Press Bed Width

30”

Part Length

Max: 20”

Part Width

Max: 20”

Part Diameter

Max: 24”

Part Thickness

005" up to 7 Gauge

Part Weight

Max: 40 lbs

Tolerance (+/-)

+- 0.005”

General Capabilities

Contract Manufacturing
Custom
Production
Prototype

Industry Focus

Automotive
Disposal for Municipalities
Industrial air Filtration
Marine


Intended Application
Air Filters
Coining
Drag Chains
Garbage Can Lid Locks
Truck Mirrors

Industry Standards

ISO Compliant

Production Method

(The raw stock is fed into a single die that     has 2 or more stamping functions.)
5 Head Progressive Die
Compound Die

Finishing Capabilities

Anodizing
Drilling
Plating
Powder Coating
Tapping
              Bitmap
Materials
              Bitmap
Aluminum
Brass
Bronze
Carbon Steel
Cobalt Steel
Copper
Ferrous

Secondary Operations

We have a Full Tool and Die Design and     Fabrication Shop to Support Our Stamping Operations.

Stamping Features

Coated
Countersunk
Cruciform
Embossed
Enameled
Flat
Heat Treated
Numbering
Ornamental
Shape Critical
Strain Relief
Surface Critical
Tapped
Threaded

Additional Services Provided

Consulting
Design

File Formats

AutoCAD (DWG,DWZ)
PDF



Custom-made products according to your sample or drawing.
