PD-V6DN-A
TOP High Tech Military Inspection Camera
Contact skype now: psdsales2

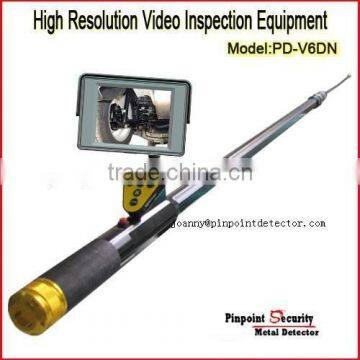

PD-V6DN-A, one of our latest developed High Resolution Video Inspection Equipment which is widely used for mining, earthquake and collapse rescue and used inside rusted pipe and container (e.g. oil tank); used nearby pipe and mechanical equipment; used under vehicle and under airplane and used to test underwatership. It makes invisible places visible to you in the form of video.
- It can reach whenever human being could not reach and view any place where human eyes could hardly observe.
- Its also could be used for anti-terrorist.
- It could locate the terrorists position and show you what weapons they are carrying.

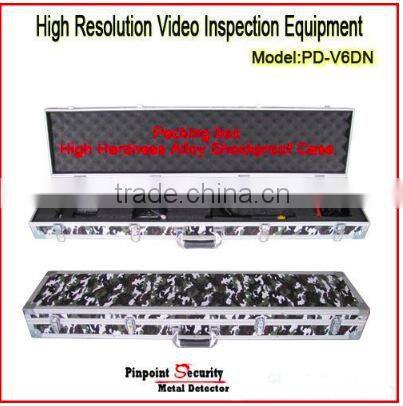

PD-V6DN-A,adopts high hardness alloy shockproof suitcase that could effectively prevent drop, collision and extrusion, etc.
Technology Parameter
A, Waterproof Camera
1. Camera size: 17mmx25mm.
2. Camera lens material: Sapphire
3. Camera case material: Stainless Steel
4. Sensor size: 1/4 inch CMOS
5. Camera light source: 10 pcs super high white LED light (adopted with NiteCore Extreme technology)
6. Camera level resolution: 700 line, sensor pixels: 728(h) *52(v)
7. Effective Pixels: PAL:720(H)*576(V),NTSC:720(H)*480(V)
9. The Lowest Illuminance: 0.01LUX
10. Adjustable camera angle: Any angle
11. Camera waterproof level : IP68
12. Camera working voltage: DC:5v
13. Camera working current: 90mA (not included the fill light source)
14. Camera flexible pipe: 655mm
15. Total length: 3.4 meter
16. Working temperature: -30~ 70
17. Storage temperature : -50~ 120
B, LCD display screen
- LCD size: 3.5inch 4:3
- Resolution: 320*240-RGB
- Working voltage: DC:5V
- LCD brightness : 300cd/m(Typ.)
- Contrast: 500:1(typ.) (Transmission)
- Viewing angle: 60/60/40/60(typ.)(CR10)(left/right/up/down)
- Scanning frequency:60 Hz
- Signal interface : Digital RGB (8/24-bit)+SPI, CCIR601/656
Packing List
- 3.5 inch display Built-in video recorder------1PC
- Camera---------------------------------------------1PC
- Telescopic rod -----------------------------------1PC
- Multi-function control handle ------------------1PC
- 8G mini SD card----------------------------------1PC
- SD reader------------------------------------------1PC
- Dedicated charger ------------------------------1PC
- Charger cable------------------------------------1PC
- 22650 Lithium Battery 5000mA-------------1PC
- Small sunshield ---------------------------------1PC
- Big sunshield-------------------------------------1PC
- Manual---------------------------------------------1PC
- Box key--------------------------------------------1PC
