Pinpoint Under Vehicle Search&Inspection Camera vehicle surveillance camera

PD-V6DN-A

TOP High Tech Military Inspection Camera

Contact skype now:  psdrobin

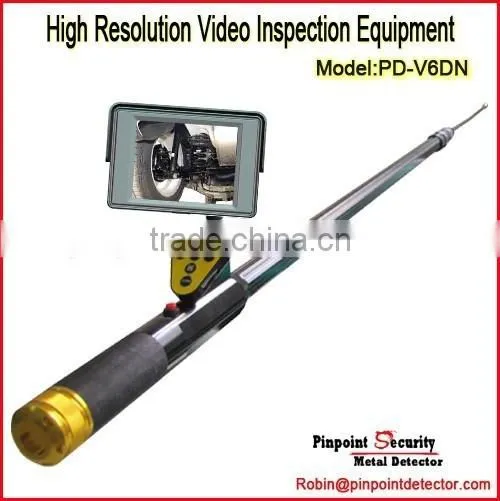

PD-V6DN-A, one of our latest developed High Resolution Video Inspection Equipment which is widely used for mining, earthquake and collapse rescue and used inside rusted pipe and container (e.g. oil tank); used nearby pipe and mechanical equipment; used under vehicle and under airplane and used to test underwater ship. It makes invisible places visible to you in the form of video.

• It can reach whenever human being could not reach and view any place where human eyes could hardly observe.
• Its also could be used for anti-terrorist.
• It could locate the terrorists position and show you what weapons they are carrying.

PD-V6DN-A,adopts high hardness alloy shockproof suitcase that could effectively prevent drop, collision and extrusion, etc.

Technology Parameter

A, Waterproof Camera

1.       Camera size: 17mmx25mm.

2.       Camera lens material: Sapphire

3.       Camera case material: Stainless Steel

4.       Sensor size:  1/4 inch CMOS

5.       Camera light source: 10 pcs super high white LED light (adopted with NiteCore Extreme technology)

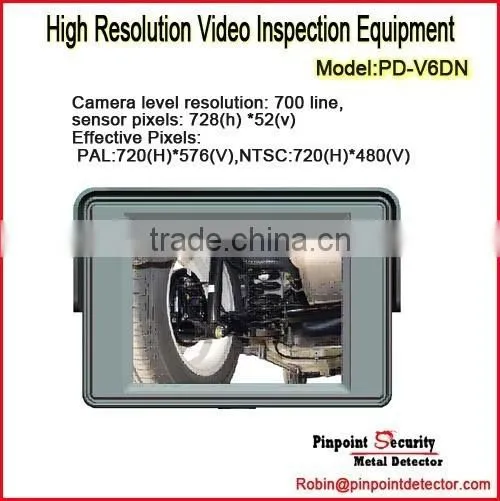

6.       Camera level resolution: 700 line, sensor pixels: 728(h) *52(v)

7.       Effective Pixels:      PAL:720(H)*576(V),NTSC:720(H)*480(V)

9.        The Lowest Illuminance: 0.01LUX

10.    Adjustable camera angle: Any angle

11.    Camera waterproof level : IP68

12.    Camera working voltage: DC:5v

13.    Camera working current: 90mA (not included the fill light source)

14.    Camera flexible pipe: 655mm

15.    Total length: 3.4 meter

16.    Working temperature: -30~ 70

17.    Storage temperature : -50~ 120

B, LCD display screen

1.  LCD size: 3.5inch 4:3
2.  Resolution: 320*240-RGB
3.  Working voltage: DC:5V
4.  LCD brightness : 300cd/m(Typ.)
5. Contrast: 500:1(typ.) (Transmission)
6. Viewing angle: 60/60/40/60(typ.)(CR10)(left/right/up/down)
7. Scanning frequency:60 Hz
8. Signal interface : Digital RGB (8/24-bit)+SPI, CCIR601/656

Packing List

•   3.5 inch display Built-in video recorder------1PC
•   Camera---------------------------------------------1PC
•   Telescopic rod -----------------------------------1PC
•   Multi-function control handle ------------------1PC
•   8G mini SD card----------------------------------1PC
•   SD reader------------------------------------------1PC
•   Dedicated charger ------------------------------1PC
•   Charger cable------------------------------------1PC
•   22650 Lithium Battery 5000mA-------------1PC
•   Small sunshield ---------------------------------1PC
•   Big sunshield-------------------------------------1PC
•   Manual---------------------------------------------1PC
•   Box key--------------------------------------------1PC

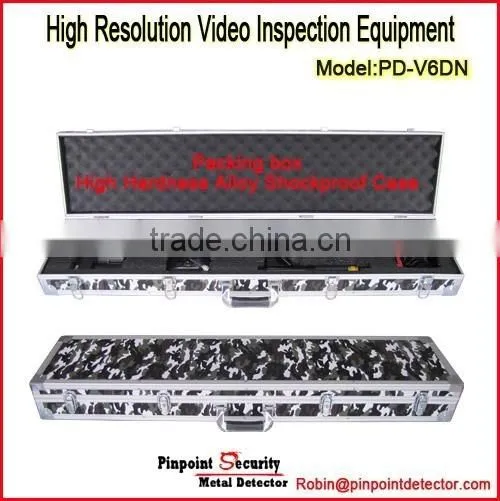

  Packing Box-----High Hardness Alloy Shockproof Suitcase

    Certificatin - CE / ISO /ROHs / Fcc
