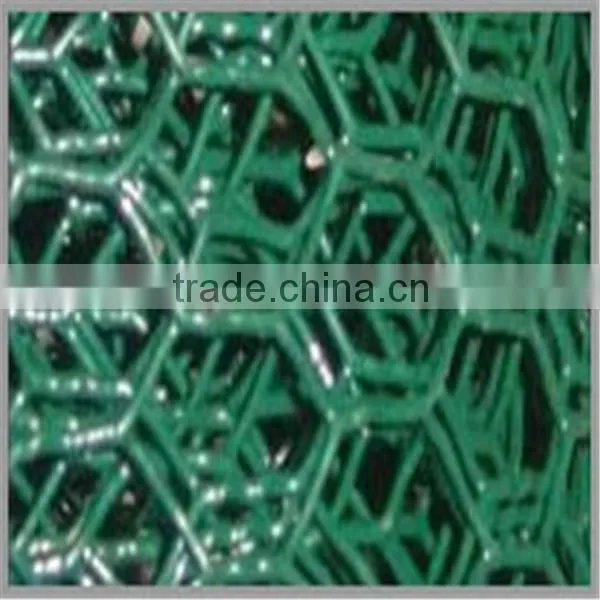

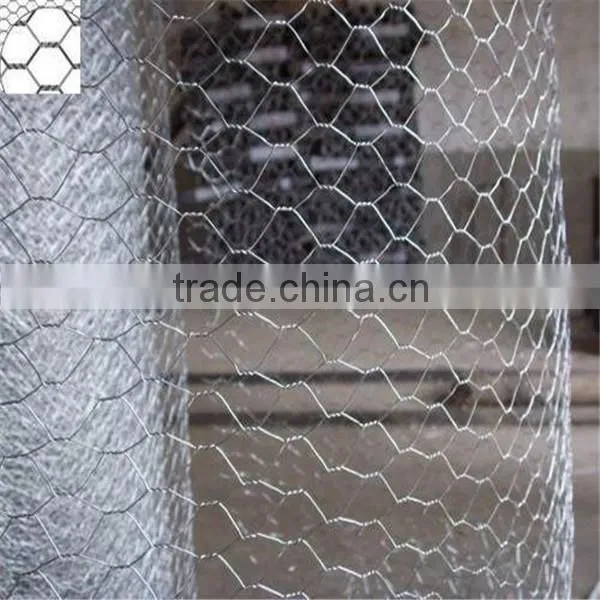

hot dipped Hexagonal wire mesh stainless/pvc hexagonal wire mesh

Specifications

Hexagonal wire mesh
Wire diameter:0.5-1.2mm
Mesh size:3/8",1/2",5/8",3/4",1",2",3",4"
Dimension:Height 1-3M
Length:20-100M

Hexagonal Wire Mesh:
Material: Low carbon steel wire, stainless steel wire;
Weaving: clock-wise twist, counterclockwise twist, twist double way, braid before plating, plate before braiding, hot dipping, electro-plating, PVC coating etc;
Features: It is featured of substantial structure, flat surface, good resistant to corrosion, antioxidant etc.

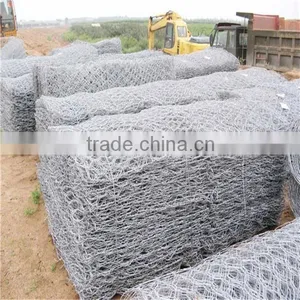

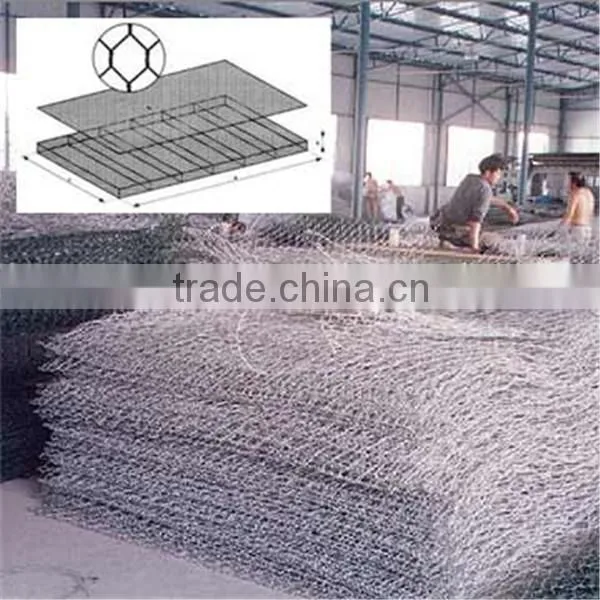

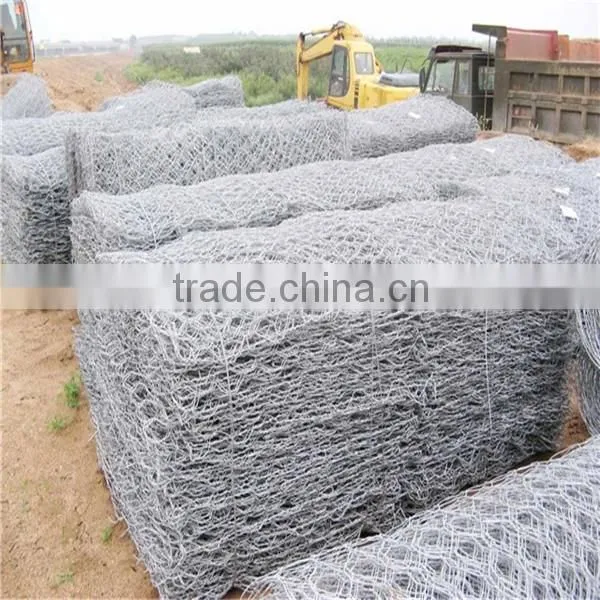

Application: Fence of poultry breeding such as chicken, duck, goose, rabbit, and fence for the zoo; Guardrail of machinery, high way, fence of stadium, landscaping on the road etc. The gabion made of this kind of mesh can be used for protection and supporting of coastal levee, mountain slope, road and bridge, reservoir, and other civil engineering, and is superior material for flood control.

Specifications of Hexagonal wire netting
Specifications			Twistable wire diameter		Twistable Width
Mesh (inch)	Size No. (inch)	Tolerance	British System No	Metric System wire diameter	British System	Metric System
3/8”	10	+0.5	BWG27-23	0.41-0.64mm	1’-6’	0.1-2m
1/2”	13	-1.5	BWG27-22	0.41-0.71mm	1’-6’	0.1-2m
5/8”	16	+1.0/-2.0	BWG27-22	0.41-0.71mm	1’-6’	0.1-2m
3/4”	19	+1.0/-2.5	BWG26-20	0.46-0.89mm	1’-6’	0.1-2m
1”	25	+1.5	BWG25-29	0.51-1.07mm	1’-6’	0.1-2m
1.25”	31	-3.0	BWG24-18	0.56-1.24mm	1’-6’	0.2-2m
1.5”	40	+2.0/-4.0	BWG23-16	0.64-1.65mm	1’-6’	0.2-2m
2”	51	+2.0/-4.0	BWG22-14	0.71-2.11mm	1’-6’	0.2-2m
3”	76	+2.0/-4.0	BWG21-14	0.81-2.11mm	1’-6’	0.3-2m
4”	100	+2.0/-4.0	BWG20-12	0.89-2.8mm	1’-6’	0.5-2m
The others could according to customers specific requirement to produce.
