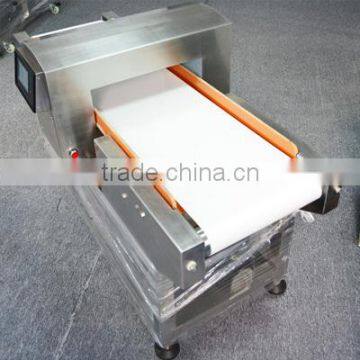

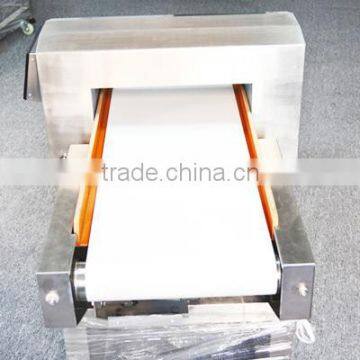

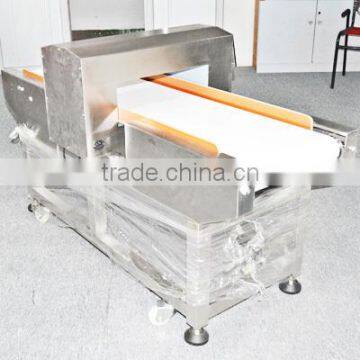

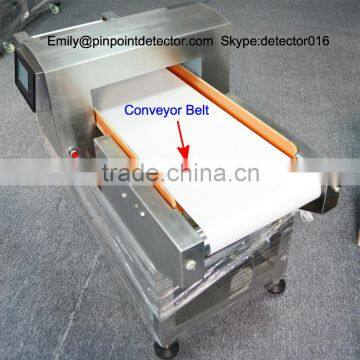

Food Production Line Conveyor Belt Metal Detector PD-F500QD Needle Detector

High Professional Food Metal Detector For Detecting The Metal Chips Inside The Food

When working with food, metal can contaminate
your product from a number of sources like:

» Machine components

» Knife tips

» Tie wraps

» Incoming raw materials ...and more!

Product Parameter:

Metal detector  material is  SS304

Detecting Method: Magnetic induction

Detecting width: 45-80CM

Detecting height:10-50CM

Sensitivity adjust:0-9

Detecting Sensitivity: 0.6mm-3.0mm iron ball (Fe)

                  1.2mm-5.0mm  non-fe (SUS)

Alarm Method:Buzzer&LED indicator twinkles and shutdown automatically

Conveyor Belt Speed:40m/min

Power Supply :AC100-265V ,50-60Hz (can be made as required)

Dimension size: 160(L)*75(W)*(90-120)(H)cm    (can be made as required)

It can work with 30 kg  packages

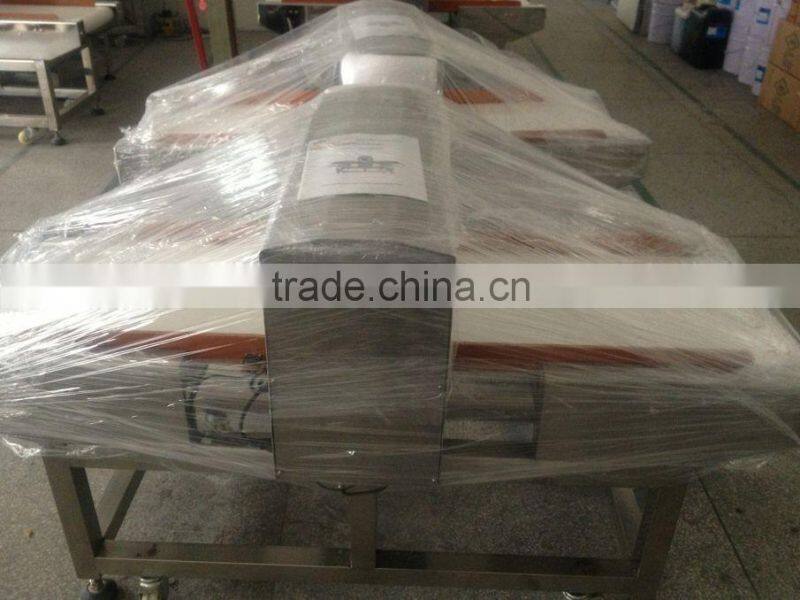

Package size:175*88*110cm,  about 230Kg, with wooden case packing

Feature and Application:

Making the outside shape beautiful and makes the weight of the machine light go adopt the ABS shell of good quality; Equipped with the auto-alarm and auto-return device;

It is featured by powerful anti-magnetic disturbance capability,high reliability and sensitivity.  Be used in food  ,medicine ,and toys detector of metal inside.

Performance:

1. Dual-loop design, can be detected separately iron and non-ferrous metal impurities, the high

detection sensitivity can be separately adjusted to operate a very convenient and can detect food

packaging aluminum platinum.
2. Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.
3. Detection accuracy over the corresponding provisions of HACCP system Detect indicators.
4. Can and weighing machines, sorting machines combination to form a pipeline automatically

detects weighing.
5. Production line can be used to connect supporting the implementation of automatic detection

pipeline.
6. Monitor the use of sound and light alarm, automatically exclude or shutdown, the operational

use of extremely reliable and user-friendly.
7. Machine using stainless steel material, anti-corrosion, easy to clean (which can be required

in accordance with the ordinary customers of steel stainless steel materials may be appropriate

to reduce costs).

Specification parameter:

Speed of transmission: 18-40 meter/minute

Normal height of inspection windowcm:10

Normal width of inspection windowcm:30

Alarm: Audible and visual with automatic stop

Can install with the auto-rejection equipment according customers requirement.

Power: AC110V/220V/380V 50/6 0Hz.

Note: The above sensitivity judged by the machine without bearing any parts, the actual detection sensitivity has relation with the nature and the temperature of the products etc., the different types of detection which the sensitivity of metal detectors is different too, the actual detection sensitivity should be at the base of the test-block verification

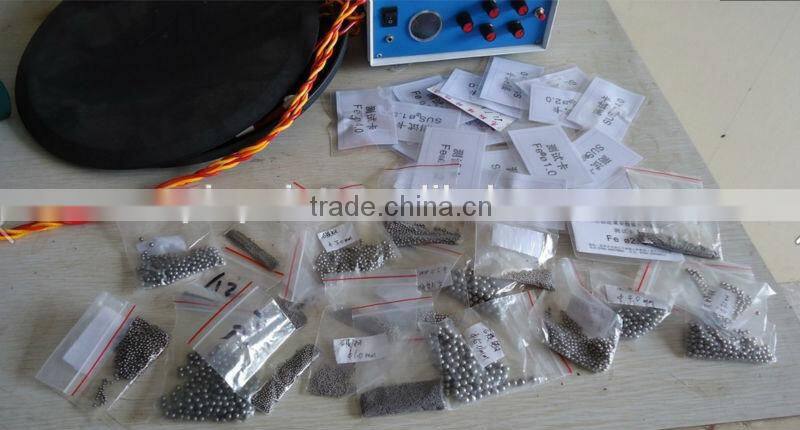

Test Card
