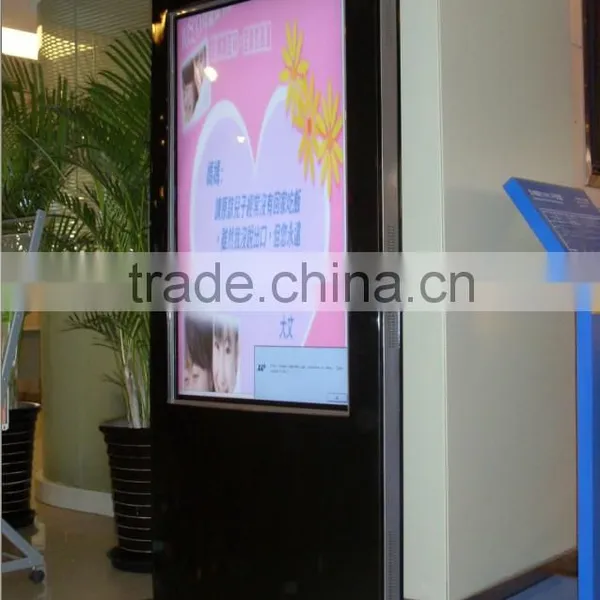

55 Inch Outdoor Advertising Display 2014 New Style

55 Inch Outdoor Advertising Display 2014 New Style thumbnail-1
55 Inch Outdoor Advertising Display 2014 New Style photo-1
US$ 1 - 50,000 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JDN
Model Number:
JDNWM82
Contact Supplier Request Quote Chat Now
Guangzhou Jindinuo Computer Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name JDN
Model Number JDNWM82
Type TFT
Application Outdoor
Panel Size 80
Max Resolution 1080
Viewing Angle 178
Pixel Pitch 556
Color 16.7
Contrast Ratio 4000:1
Brightness 450cd/m2
Response Time 5ms
Input Voltage 110v

Specifications

80 Inch LED screen wall panel advertising displayer for hotel
Over 8 years experience
3-15 days delivery
touch screen network

55 inch outdoor advertising display 2014 new style

LED outdoor advertising display_55"65"68"72" 80"Inch outdoor wall mounted floor stand lcd touch screen advertising displayer

player lcd advertising player LED advertising player .screen and color can be customized.from 46" to 82".

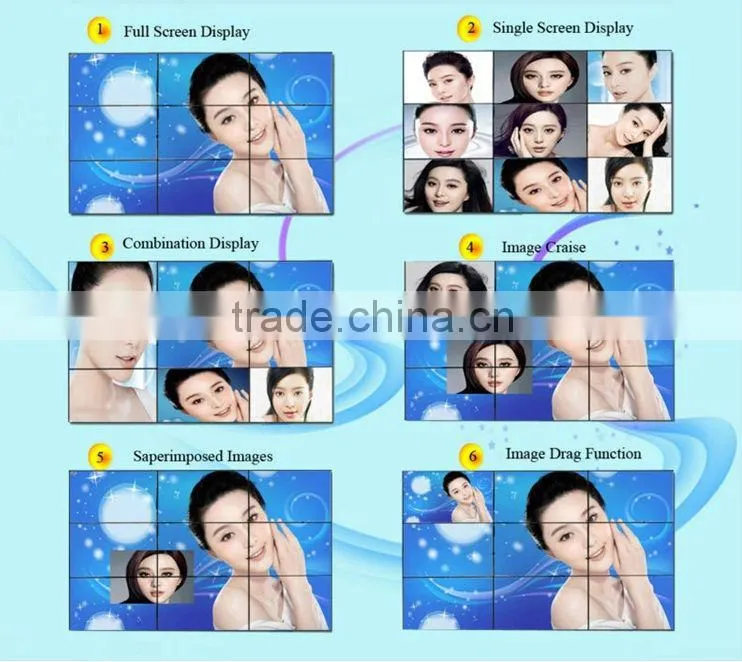

JDN LCD vidio wall can display signals sourced from PC, composite video, realize functions of signals switching overiapping, combination and so on.

Model NO                                                                         JDN460-V

Panel size                                                                        46' Samsung DID LCD Screen                                                                        (narrow bezel 6.7mm&5.3mm)

Aspect Ratio                                                                    16:9

Max Resolution Support                                               1920*1080

Color                                                                                 8Bit,16.7M

Brightness (nits)                                                            450cd/m2

Contrast                                                                           4000:1

viewing angle(HxV)                                                        178°

Response Time                                                              5ms

panle life                                                                           >50,000hours

Panel Brand                                                                    DID LCD Screen

Active Area                                                                       1018.08(H) x 572.67(V)

backlight                                                                           LED

INPUT and OUTPUT

HDMI Input                                                                         1

VGA Input                                                                            1

DVI Input                                                                              1

Composite Video Input/Output(AV)                             BNCx2

Control Signal input and loop out                                RS232(RJ45-8)

Split Screen Support                                                       Picture in Picture



D525

I3

I5

I7

CPU

Intel Atom D525 (Dual Core)

Inte i3  (Dual Core)

Intel i5 (Quad Core)

Intel i7, Quad Core

RAM

DDR III / 1333 / 2G (Up to 4GB)

DDR3 / 4GB / 1333MHz (Up to 16GB)

DDR3 / 4GB / 1333MHz (Up to 16GB)

DDR3 / 8GB / 1333MHz (Up to 16GB)

Chipset

NVIDIA ION2 Chipset

H61 Chipset

Graphics

NVIDIA GT218

                                            Integrated with CPU

H.D.D.

320G HDD or 64G SSD

NIC

10/100/1000M Auto-adjust Gigabit Ethernet Controller

Wi-Fi

150Mbps 802.11n Wi-Fi Integrated

Audio

HD 8 channel audio system

Speaker

2 build-in high quality stereo speakers (3w or 5w)

O.D.D

DVD-RW (Optional)

Mouse/Keyboard Bluetooth suit

Optional

Tv tuner

optional

Pre-Installed OS

Windows 8/ VISTA / 7 or Linux (Setting Official Version will be added extra cost)

Video Wall Processor Specifications

Input

CVBS

3*BNC inputs, support PAL/NTSC, 2*BNC loop outputs

VGA

1* D15 port, support SVGA/XGA/WXGA

YPbPr

1* YPbPr Input, Support PAL/NTSC

Y/C

2* BNC inputs, support PAL/NTSC

Output

LVDS

Support single or double LVDS output, and WUXGA(1920*1080)

Operate Mode

Panel key operation (Need customization)

Infrared Remote Control Operation

Standard RS232 port (provide free control software)

Engineering Software

Customized

Temperature

 -20°C ~ 50°C

Humidity

5% ~ 95%

Power Supply

AC 110V ~ 240V, 50/60Hz

Power Consumption

Max 300W, according to different screen models

Processor Size

307×282×53.8 (mm)

Weight

 19Kg to 45Kg

55 inch outdoor advertising display 2014 new style 55 inch outdoor advertising display 2014 new style 55 inch outdoor advertising display 2014 new style

 55 inch outdoor advertising display 2014 new style

1-Banks and other financial institutions (within the business point of advertising, services, promotion)

2-Telecommunication (business hall showcasing the latest consultation business letter, business promotion hall

3-Units of government agencies (public information dissemination, government affairs)

4-Shopping center

5-Fashion flagship store of goods, stores, chain stores

7-Reception room or meeting room (company presentations)

8-Exhibition, exhibition hall design

55 inch outdoor advertising display 2014 new style



55 inch outdoor advertising display 2014 new style
