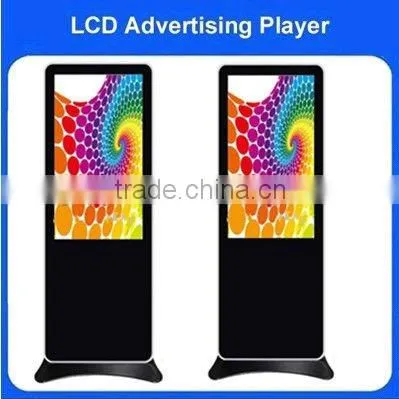

Electronic poster displays

Technical Specifications

1). Parameter for LCD Panel:

Panel Size: 42 inch Real Color LCD Screen Aspect Ratio: 9:16 Max. Resolution: 1920 x 1080

Active Area: 928mm x 522mm Dot Pitch: 0.4845mm x 0.4845mm

Number of Color: 16.7M Brightness: 550cd/m2 Contrast Ratio: 1200:1

Responsive Time: 8ms Panel Life: above 50000 hours

2). Compatible File Formats:

MP4(AVI: DIVX/XVID), MPG2(DVD: VOB/MPG2),MPEG1(VCD:DAT/MPG1),MP3,JPG etc.

3). Playing Media:

Update by USB or CF card

USB: High Speed USB 2.0 (Host)

4). Others:

Power Supply: AC100V-240V 50/60HZ; Power Adapter: DC 12V 5A

Output Voltage Adapter: DC 12V 5A

Working Temperature: -15’C-65’C; Working Humidity: 20%-80%

Storage Temperature: -20’C-60’C; Storage Humidity: 10%-95%

5). Packing Information:

Packing list: one unit 42” LCD Advertising Player, two Pieces of keys, English user Manual, Remote Controller

Packing Size: 2000mm x 600mm x 500mm

Net Weight: 100kg, Gross Weight: about 120kg Volume Weight: 120kg

Main Function:

1). Time Function: the player turns on/off at the same time everyday according to user setting.

2). No DVD style Mechanical movement, hence more durable and suitable for long-hour advertising playing.

3). Support 5 groups of auto power-on/off timer, and can set 5 groups of time one day and 7 days in one week.

4). Build-in Flash memory card decoding function, which support CF card or USB

5). Flash memory card can be supported from 1GB to 16GB on the LCD player

6). Support software upgrade function via USB port.

7). Build-in Clock and calendar function in the system of player.

8). Playing advertising file automatically and circularly after insert CF card/USB etc.

9). Support playing list function: user can set different folders, copy all target files to those different folders via software, system would default to play your target file one by one.

10). Support Sub-screen or small window playing mode.

11.)Multi-language function:Chinese,English,France,Spanish,Korea etc.

12).It is available with Horizontal OSD and Vertical OSD.

Product Features:

1). Adopts high transparent tempered glass as protection layer to prevent LCD panel being broken and distorted.

2). Full Metal outer shell and Frame Design;

3). Color for metal outer frame is available with Black color, Shinning-silver color, cream-white color; also we accept customizing color according to color code.

4). Adopts Samsung, LG, AUO brand as LCD Panel, Full New A grade standard.

5). Locking system for anti-thieves, prevented the player and storage devices from being stolen.

6). Password can be set to protect the contents and lock the keyboard of the remote controller.

7). New function can be upgraded by blank U-sticker via USB port.

8). Build-in High Quality speakers Stereo

9). Fixing Method: Support back fixing method.

Applicable field:

Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops

Non-profit Organizations: Telecommunications, post offices, hospital, schools

Public Places: subway, airports, stations, bookstores, parks, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers, exhibition halls, toll stations, , gas stations.

Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers

Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
