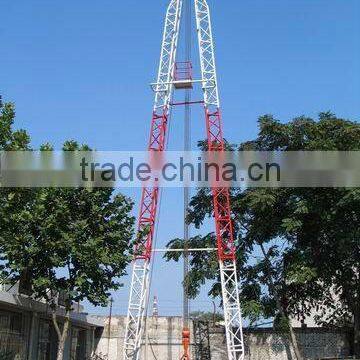

Well Drilling Rig

Specifications

Applicable to Quaternary alluvium layer of gravel and bedrock drilling, widely used in wells, hydro-geological reconnaissance ho

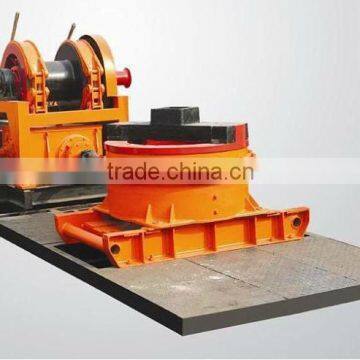

Applicable to Quaternary alluvium layer of gravel and bedrock drilling, widely used in wells, hydro-geological reconnaissance holes, holes of geothermal development, engineering and construction perfusion hole drilling. The drilling machine applies mechanical transmission, features : a large diameter turntable, strong torque, good hoist capacity, simple operation, easy disassembly and maintenance



Diameter of borehole	650mm	Maximum output torque	25kN.m
depth of drilling hole	600-800m	Mud Pump Model	BW850/50
rotate speed	F/R 160.89.41.23r/min	Motor model	Y250M-4
hoist capacity	50X6kN	rig specification	A15m
power of drilling machine	kW	Host weight	5250kg
drill pipe specification	OD89mm or OD127mm	Host Dimension	4500X1750X1500mm
