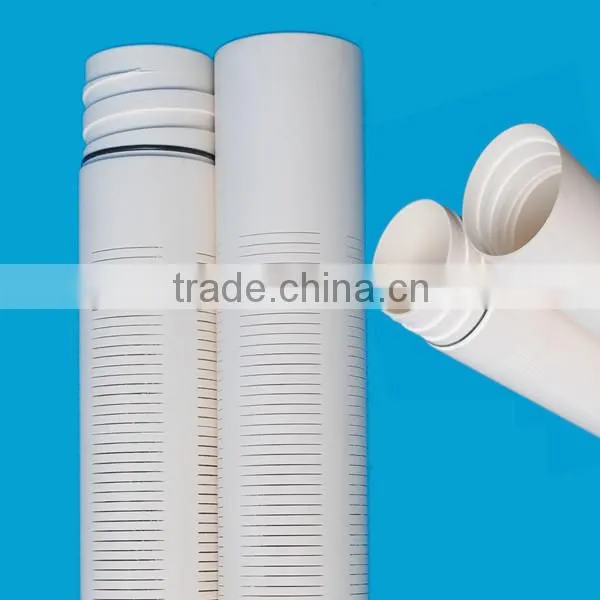

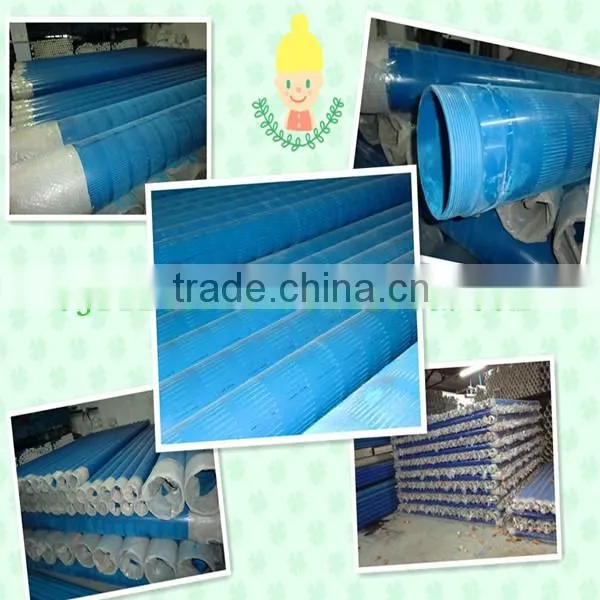

BJF good quality food grade cut slotted pvc casing pipe
PVC -u pipe performance overview
Compared with the traditional pipe, PVC -u pipe has the following features:
1) light weight, easy to transport and install.PVC -u plastic pipe proportion slightly greater than 1, between 1.35 1.46, pipe is slightly greater than the buoyancy of mud weight, in turn off the tube does not need a lot of lifting force can smooth tube under, safe and reliable, labor intensity is small, the well pipe transportation more convenient save Labour.
2) corrosion resistance is strong, good durability.Plastic polymer is a very stable, almost not with acid and alkali salt chemical reactions, such as ultraviolet irradiation in less than a few water in the sun, at least 50 years service life and suitable for all kinds of water Wells, especially of the submersible electric pump is widely used in recent years, the induced current in the water to accelerate the traditional well pipe corrosion, and the plastic tube well is unaffected by this.
3) joint length, less well pipe joint.Plastic pipe length is 6 meters commonly, also can according to the required by the hirer, greatly reduced the number of joints, saves time and joint pipe material, more important is reduced because of poor joint appeared fault, sand leakage and scrap Wells, also avoid the secondary pollution of water well pipe.
4) good water quality.The health level of PVC - U pipes health, non-toxic, do not breed bacteria, do not pollute the water quality.
5) pipe cheap, suppling low cost.
6) the lining is smooth, good hydraulic conditions.The friction coefficient is only 00008, small energy consumption.
7) flexibility, high impact strength.
8) wear resistance.
Technical parameter
Slotted tube processing is on high strength steel body with cold or hot working methods, cutting out hundreds of thousands of longitudinal cracks, cracks commonly used specifications for: seam width 0.15 3 mm, even more wide, gap length 50-200 mm.Cross section types are: rectangular, ladder shaped, specific and various, also has a circular groove screen, aperture diameter specifications range 5-20 mm in meters.Slotted sieve tube hole seam cutting quality mainly depends on the precision of seam width, hole seam cross-section shape neat degree, on the edge of the hole seam smoothness and the degree of corrosion resistance of hole seam.
Application
Beijing Filter Trade Company Limited, Integrated supplier of drilling engineering industry chain.
Highlight of service and downstream manufacturers:
1. Business range covers the whole industry chain of well drilling, including casing pipe and tube, well screens, drilling rig and pipe, industrial additives, logistics service
2. Professinal manufactory
3. Industrialized automatical manufacturing line
4. Export oriented factory
5. Production supplier of large-scale projects, including stadium construction for Olympic Beijing 2008, subway construction in Beijing and Shanghai, government procurement for Africa reconstruction, etc.
