Factory of cold rolled C/Z section steel factory using

FOB Price

USD $650 - $880 / Ton

10 Tons(Min.Order)

Supply Ability 100000 Ton / Tons per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Standard:	ASTM, GB	Grade:	Q235	Place of Origin:	Sichuan, China
Brand Name:	BAOYE	Model Number:	BY27	Shape:	C Channel
Application:	Construction	Perforated Or Not:	Is Perforated

Product Description

Detailed Product Description

C/Z Type Purlin

Light steel structure is newly international fashionable structure system. low cost ,strong and light weight.
even wall thickness, adjustable size and high compressive strength. C/Z purlin are reasonable and economic.

1.Easy installation
2.Good anti-bending performance
3.Good straightness
4.Excellent authenticity performance

Definition

C/Z steel is made from hot rolled boards by being cold bended. With the advantages

of thin section ,light weight, high strength, It can save materials by 30% with the equal

Strength, compared with traditional channels.

Specialties

It is good in anti-bending performance and compression with high degree of straightness; fully-automatic fixed length cutting makes installation quick and easy for its high authenticity.

Use

It can be used as the main force-bearing structure for large and medium industrial and residential constructions such as

Workshops, warehouses, plane, sheds,exhibition halls, gymnasium and locomotives sheds.

Grade: Q195, Q235, Q345
Standard: JIS, ASTM, GB
Thickness: 2.5mm

Size of C shape purlins:
1) No. 1 model:
A) Size: 80 x 40 x 15
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 166mm
2) No. 2 model:
A) Size: 80 x 40 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 176mm
3) No. 3 model:
A) Size: 100 x 50 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 216mm
4) No. 4 model:
A) Size: 100 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 236mm
5) No. 5 model:
A) Size: 120 x 50 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 236mm
6) No. 6 model:
A) Size: 120 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 256mm
7) No. 7 model:
A) Size: 140 x 50 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 256mm
8) No. 8 model:
A) Size: 140 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 276mm
9) No. 9 model:
A) Size: 160 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 296mm
10) No. 10 model:
A) Size: 160 x 70 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 316mm
11) No. 11 model:
A) Size: 180 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 316mm
12) No. 12 model:
A) Size: 180 x 70 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 336mm
13) No. 13 model:
A) Size: 200 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 336mm
14) No. 14 model:
A) Size: 200 x 70 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 356mm
15) No. 15 model:
A) Size: 220 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 356mm
16) No. 16 model:
A) Size: 220 x 70 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 376mm
17) No. 17 model:
A) Size: 240 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 376mm
18) No. 18 model:
A) Size: 240 x 70 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 396mm

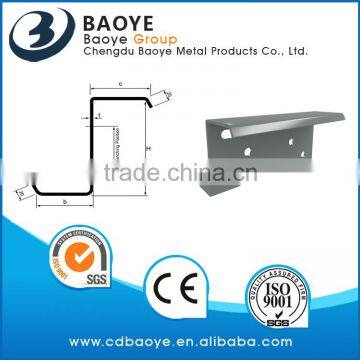

Size of Z shape purlins:
1) No. 1 model:
A) Size: 80 x 40 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 179mm
2) No. 2 model:
A) Size: 100 x 40 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 199mm
3) No. 3 model:
A) Size: 100 x 50 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 219mm
4) No. 4 model:
A) Size: 120 x 40 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 219mm
5) No. 5 model:
A) Size: 120 x 50 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 239mm
6) No. 6 model:
A) Size: 140 x 50 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 259mm
7) No. 7 model:
A) Size: 140 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 279mm
8) No. 8 model:
A) Size: 160 x 50 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 279mm
9) No. 9 model:
A) Size: 160 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 299mm
10) No. 10 model:
A) Size: 180 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 319mm
11) No. 11 model:
A) Size: 180 x 70 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 339mm
12) No. 12 model:
A) Size: 200 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 339mm
13) No. 13 model:
A) Size: 200 x 70 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 359mm
14) No. 14 model:
A) Size: 220 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 359mm
15) No. 15 model:
A) Size: 220 x 70 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 379mm
16) No. 16 model:
A) Size: 240 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 379mm
17) No. 17 model:
A) Size: 240 x 70 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 399mm
18) No. 18 model:
A) Size: 250 x 60 x 20
B) Thickness: 2. 0 - 3. 0mm
C) Coil width: 389mm
