Product Details

Place of Origin	Sichuan, China	Brand Name	Baoye
Model Number	EPS	Panel Material	Metal
Type	EPS Sandwich Panels

Product Description

EPS sandwich panel features

1. EPS sandwich panel is made of two layer color coated steel sheet and an EPS layer in the middle.
2. EPS sandwich panels are flush shapes&peak and valley shapes available. The joint connection can be teeth shape and clip shape.
3. Thickness(mm) of sandwich panel: 20, 40, 50, 75, 100, 150, 200.
4. Length of sandwich panel: Depend on the construction demand and generally it is less than 12000mm.

Color steel EPS sandwich panel

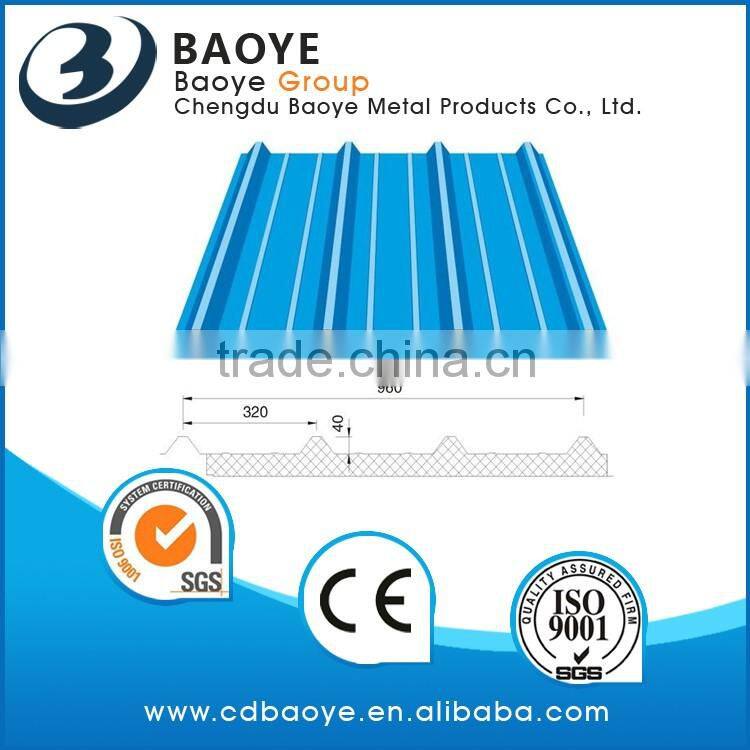

It is made of e expandable polystyrene (EPS) foam board with two sides galvanized steel plate covered. The surface can be made one side flat, other side corrugated for roofing or both sides flat for wall. It is now widely used in large-span factory, purification plant, villas.

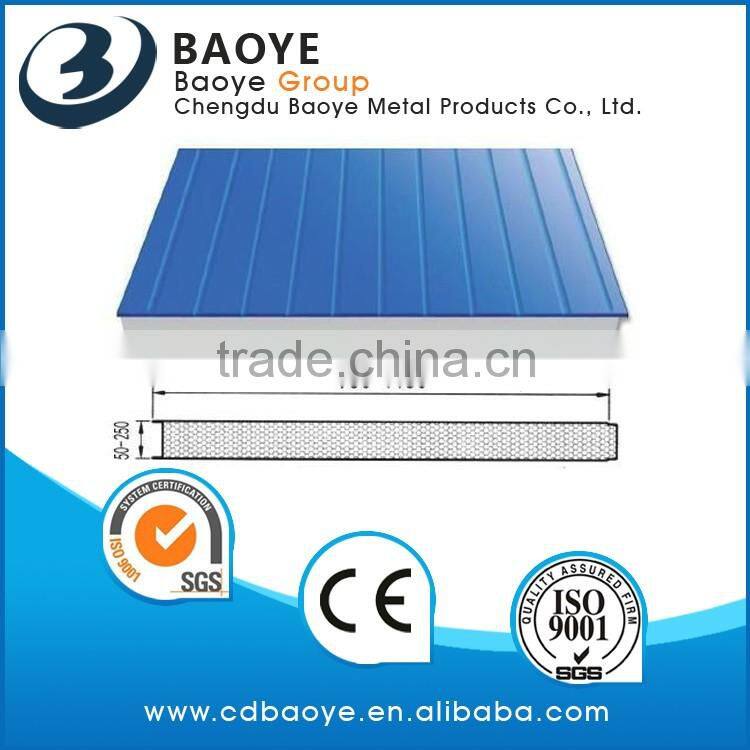

950 wall sandwich panel
Type	EPS sandwich panel (self-insert connection) All the screw and accessories are available
Dimensions	Total thickness	50,75,100,150,200mm
	Width	950mm ,1150mm
	Length	Less than 11.8m
External face	Material	Galvanized
	Thickness	0.15-0.8mm
	Thickness of the zinc	80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	20 micron
	Color	According to the RAL
	Pattern	Nearly Plain
Insulation	Material	EPS
	Thickness	50,75,100,150,200mm
	Density	6-24kg/m3
	Thermal conductivity	0.02~0.03w/mk
Internal face	Material	ppgi
	thickness	0..15-0.8mm
	Thickness of zinc	80g/m2
	Corrosion protection	Galvanized
	Coating	Polyester
	Thickness of coating	7micron
	Pattern	Plain
Shipping terms
Package	Craft paper or wooded pallet
Delivery time	Within 5-10 days after your prepaid
Payment terms	T/T ,L/C at sight
