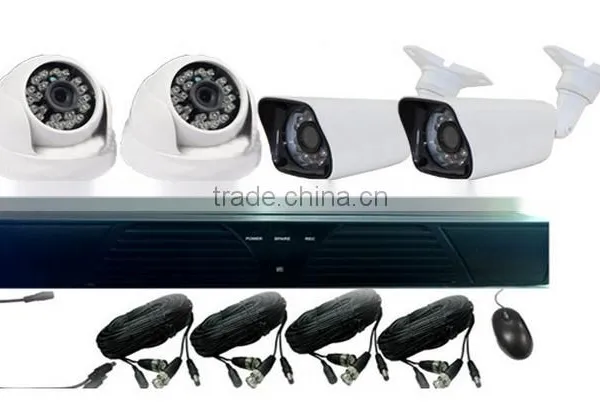

2014 Latest 3 in 1 Security Camera for Analog High Definition With Cloud AHD DVR Kit and Support Onvif

Name: 2014 Latest 3 in 1 Security Camera for Analog High Definition With Cloud AHD DVR Kit and Support Onvif
Brand: Tollar
SKU: 132312773

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Tollar

Model Number:

AHD-KIT

Shenzhen Tollar Security Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Tollar

Model Number AHD-KIT

Type Other, Analog Camera, AHD Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

Specifications

1.4channel P2P AHD DVR Kit
2.IR distance 30m night vision
3.720P Dome and bullet camera
4.4pcs 15meters cable
5.CE,ROHS,

2014 Latest 3 in 1 security camera for Analog High

Definition with Cloud AHD DVR Kit and support Onvif

AHD DVR kit Parameters

Dome camera

Camera	MODEL	TL-MB50-001
	Signal system	PAL/NTSC
	Min Illumination	COLOR:0.6Lux @(F1.2,AGC ON),0 LUX with IR White and black 0.08Lux @ (F1.2,AGC ON),0 LUX with IR
	Shutter	1/50(1/60)"- 1/100,000"
	Day &Night System	IR-CUT
	Lens	3.6mm Lens 36pcs F5mm IR leds
	Camera interface	CS
vedio	Vedio Compression	H.264 High Profile
vedio	compressed output	100 Kbps~8Mbps
Image	Pixel	720P
	Frame Rate	50Hz:25fps/30fps
	Image setting	Saturation,brightness,contrast can ajust by IE browser and client-side
I/O	Remote	Remote full access via IE&Client software
	Smart Analytics	Auto
	Network Transmission	TCP/IP,HTTP,DHCP,DNS,DDNS,PPPOE,SMTP,NTP(HTTPS, RTP/RTSP, SIP ,802.1x,IPv6)
	Access Protocol	onvif
	Universal Utilities	Scintillation, double stream, heartbeat, password protection
Output	PIF out	1pcs RJ45 10M/100M
Output	vedio out	1Vp-p Composite Output(75Ω/BNC)

Bullet data:

Camera	MODEL	TL-MB50-001
	Signal system	PAL/NTSC
	Min Illumination	COLOR:0.6Lux @(F1.2,AGC ON),0 LUX with IR White and black 0.08Lux @ (F1.2,AGC ON),0 LUX with IR
	Shutter	1/50(1/60)"- 1/100,000"
	Day &Night System	IR-CUT
	Lens	3.6mm Lens 24pcs F5mm IR leds
	waterproof rate	IP66
	Camera interface	CS
vedio	Vedio Compression	H.264 High Profile
vedio	compressed output	100 Kbps~8Mbps
Image	Pixel	720P
	Frame Rate	50Hz:25fps/30fps
	Image setting	Saturation,brightness,contrast can ajust by IE browser and client-side
I/O	Remote	Remote full access via IE&Client software
	Smart Analytics	Auto
	Network Transmission	TCP/IP,HTTP,DHCP,DNS,DDNS,PPPOE,SMTP,NTP(HTTPS, RTP/RTSP, SIP ,802.1x,IPv6)
	Access Protocol	onvif
	Universal Utilities	Scintillation, double stream, heartbeat, password protection
Output	PIF out	1pcs RJ45 10M/100M
Output	vedio out	1Vp-p Composite Output(75Ω/BNC)

AHD DVR Data:

Model	TL-AD7004	TL-AD7008
Main Prcessor	Embedded processor
Video Input	4 channel,BNC	8channel,BNC
Standard	NTSC(525Line,60f/s),PAL(625Line,50f/s)
Audio Input	4 channel,BNC
AUDIO Output	1 channel,BNC
Display Interface	1 HDMI,1VGA,1BNC
Resolution	19201080,12801024,1280720,1024768,800*600
Display Split	1//4	1/4/8/
Privacy Masking	4 rectangular zones(each camera)
OSD	camera title,Time,Video loss,Camera lock,Motion detection,Recording
Resolution	720P(1280720/1280600)/960h(960576/960480)/D1/4CIF (704576/704480)/CIF(352288/352240)/QCIF(176144/176120)
