Specifications
High quality terrace glazing with competitive price.
You Need a Service
System features for Finzone10 window
Latest system: Finzone10 used for most kinds of balcony shape, special for terrace glazing.
Compensation profile: There is a compensation profile for upper profile that can adjust the gap between the window and ceiling.
Best Rollers: Use big ball bearing wheels and slide smoothly.
Big glass panels: The max width of Finzone10 is 750mm and the max height is 2800mm for each glass panel. Hinge axles: Use SS304 for the whole hinge axles so that can stand big weight and avoid the glass panels falling down.
Protection cap: Apply nylon protection cap on glass profiles to avoid hurting.
Connection hardware: Use two parts of Zinc that easy to connect two track profiles with any angles.
Mechanical properties for Finzone10window
The guide profiles are made in compliance with 6063T5 as special profiles
Tensile strength of the frame from the guide profile: 860 kg
Guide profile deflection 80 kg / 3.8 m:
Perpendicular: 3.5 cm
Horizontal: 7.5 cm
No permanent changes in shape

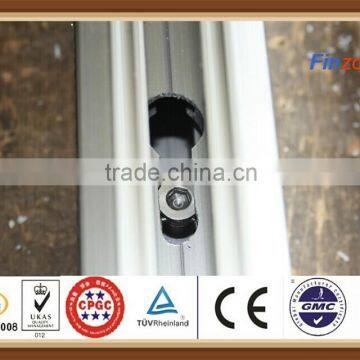

Each glass element is supported by four 8 mm hinge axles, featuring a total of 10 horizontal wheels
Durability of Nylon bearing wheel in random profile loading: undamaged over 600 kg Gearing heat resistance (POM): approx +90 Degree C
Frost resistance: over -30 Degree C
All metal parts are non-corrodible: only aluminum and stainless steel
Installation on concrete and brick surface is by 8 mm stainless steel bolts and brass anchor
Sound insulation for Finzone10 window
For 100 Hz Reduction 6.7 dB
For 2400 Hz Reduction 13.5 dB
Measured according to international standards ISO 140-5 & ISO 717-1
Wind pressure for Finzone10window
terrace glazing can support the wind speed according to the panel height and glass thickness
| wind speed | Beaufort scale description | Equivalent pressure | Maxiumum height for 8mm terrace glazing |
| 121km/h | Hurricane | 700Pa | 1.85m |
| 112km/h | Violent storm | 600Pa | 2m |
| 102km/h | Storm | 500Pa | 2.2m |
| 79km/h | Severe gale | 300Pa | 2.5m |
Show room for window
User Experience for window
Exhibition for window
Packaging & Shipping for window
