ISO9001:2008 Aluminum Frameless Window

ISO9001:2008 Aluminum Frameless Window thumbnail-1
ISO9001:2008 Aluminum Frameless Window photo-1
US$ 20 - 100 MOQ: 600 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Finzone
Model Number:
Finzone 09
Contact Supplier Request Quote Chat Now
Shanghai Finzone Windows & Doors Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Finzone
Model Number Finzone 09
Frame Material Aluminum Alloy
Open Style Sliding
Type Sliding Windows
Opening Pattern Horizontal

Specifications

aluminum frameless window
a.Apply protection cap
b.Use SS304 for hinge axles
c.Stronger glass profile, no rivets
d.Best seal

There are no frames between glass panels and each glass panel can freely slide to the left or right to open for ventilation or cleaning purpose with Finzone09 aluminum frameless window . Total or partial balcony enclosure or opening is achieved.The characteristics of Finzone09 aluminum frameless window makes the cleaning of the windows to be very easy,you can clean the reverse and facade with every glass panel.

The balcony installed with Finzone09  aluminum frameless window looks like a transparent package balcony,which not only doesn't damage the appearance and style of the building,but also contributes a lot to the integral beauty of the balcony.

System features for Finzone09  aluminum frameless window 1. Stronger profiles: The upper track is 3mm thickness and importance of the point is 5mm thick.

                                    The width of glass profile is 29mm and the height is 41mm, the importance of the point is 2.5mm thick.

2. Best Rollers: Use big bearing wheels and slide smoothy. The width of one bearing wheel is 36mm and the height is 11mm.

3.  Hinge axles: Use SS304 for hinge axles so that can stand big weihgt, advoid the glass panels falling down.

4. Protection cap: Apply nylon protection cap on glass profiles to avoid hurting.The protection is laddy-like and the sealing is better for glass panels.

5. Best sealing: There is no gap between track profiles and glass profiles. There is no gap between the first and last glass panels with side pforiles.

6. Easy adjustment: F70300 is a spring roller, using the spring round of movements can control the gap between the glass panel;F70400 is an eccentric, using the eccentric structural to adjust the dislocation of before and after between the glass panel.

7. Glass: Use 8mm or 4+0.38+4 laminated glass.

8. Connection hardware:Use SS304 to connect the track profiles to ensure the stablity of connection.

9. No rivets: Apply specially glue to connect glass and glass profile, there is no any rivets and holes in glass profile.

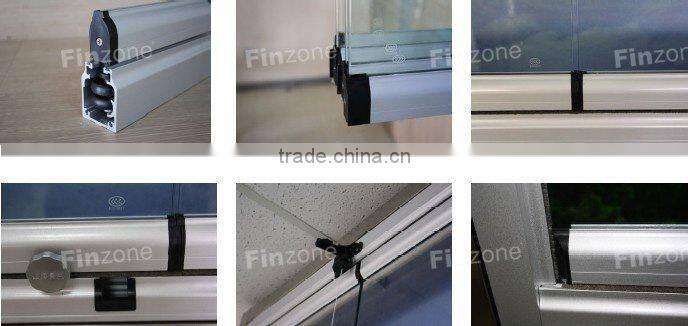

Product Photos for Finzone09 aluminum frameless window ISO9001:2008 aluminum frameless window

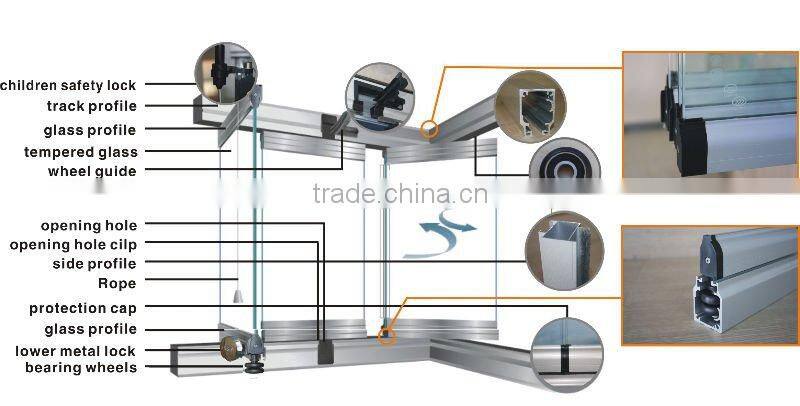

Structure drawing for Finzone09 aluminum frameless window ISO9001:2008 aluminum frameless window


Mechanical properties for Finzone09 aluminum frameless window
The guide profiles are made in compliance with 6063T5 as special profiles
Tensile strength of the frame from the guide profile: 860 kg
Guide profile deflection 80 kg / 3.8 m:
Perpendicular: 3.5 cm
Horizontal: 7.5 cm
No permanent changes in shape

Each glass element is supported by four 8 mm hinge axles, featuring a total of 10 horizontal wheels
Durability of Nylon bearing wheel in random profile loading: undamaged over 600 kg

Gearing heat resistance (POM): approx +90 Degree C
Frost resistance: over -30 Degree C

All metal parts are non-corrodible: only aluminum and stainless steel
Installation on concrete and brick surface is by 8 mm stainless steel bolts and brass anchor



Sound insulation for Finzone09 aluminum frameless window
For 100 Hz Reduction 6.7 dB
For 2400 Hz Reduction 13.5 dB

Measured according to international standards ISO 140-5 & ISO 717-1



Wind pressure for Finzone09 aluminum frameless window
aluminum frameless window  can support the wind speed according to the panel height and glass thickness
wind speed Beaufort scale description Equivalent pressure Maxiumum height for 8mm aluminum frameless window
121 km/h Hurricane 700 Pa 1.85m
112 km/h Violent storm 600 Pa 2m
102 km/h Storm 500 Pa 2.2m

79 km/h

Severe gale

300 Pa

 2.5m





Showroom for aluminum frameless window ISO9001:2008 aluminum frameless window

ISO9001:2008 aluminum frameless window

ISO9001:2008 aluminum frameless window

Production for aluminum frameless window

ISO9001:2008 aluminum frameless window

ISO9001:2008 aluminum frameless window

 Exhibition for aluminum frameless window



ISO9001:2008 aluminum frameless window

ISO9001:2008 aluminum frameless window

ISO9001:2008 aluminum frameless window

ISO9001:2008 aluminum frameless window

Packaging & Shipping for aluminum frameless window

ISO9001:2008 aluminum frameless window
