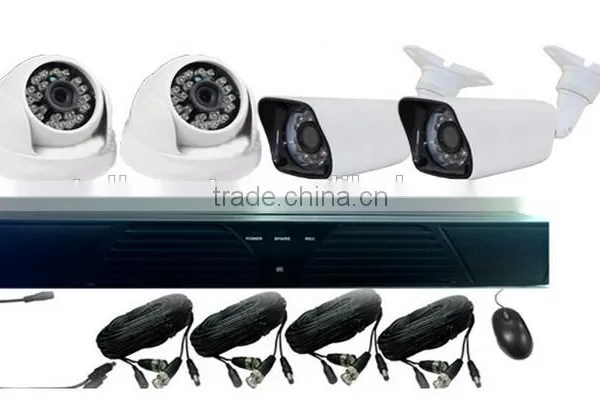

Security Surveillance Cheap Cctv Ahd Camera Kit 4ch Cctv Camera System 4ch 720p Ahd Camera

Name: Security Surveillance Cheap Cctv Ahd Camera Kit 4ch Cctv Camera System 4ch 720p Ahd Camera
Brand: Tollar
SKU: 132304755

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Tollar

Model Number:

AHD-KIT

Shenzhen Tollar Security Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Tollar

Model Number AHD-KIT

Type Other, Analog Camera, AHD Camera

Style Other, ahd camera kit

Sensor Other, ahd cmos module 720p

Technology Infrared

Special Features Other, 720P Dome and bullet CCTV camera

2014 Latest 3 in 1 security camera for Analog High

Definition with Cloud AHD DVR Kit and support Onvif

AHD DVR kit Parameters

Dome camera

Camera	MODEL	TL-MB50-001
	Signal system	PAL/NTSC
	Min Illumination	COLOR:0.6Lux @(F1.2,AGC ON),0 LUX with IR White and black 0.08Lux @ (F1.2,AGC ON),0 LUX with IR
	Shutter	1/50(1/60)"- 1/100,000"
	Day &Night System	IR-CUT
	Lens	3.6mm Lens 36pcs F5mm IR leds
	Camera interface	CS
vedio	Vedio Compression	H.264 High Profile
vedio	compressed output	100 Kbps~8Mbps
Image	Pixel	720P
	Frame Rate	50Hz:25fps/30fps
	Image setting	Saturation,brightness,contrast can ajust by IE browser and client-side
I/O	Remote	Remote full access via IE&Client software
	Smart Analytics	Auto
	Network Transmission	TCP/IP,HTTP,DHCP,DNS,DDNS,PPPOE,SMTP,NTP(HTTPS, RTP/RTSP, SIP ,802.1x,IPv6)
	Access Protocol	onvif
	Universal Utilities	Scintillation, double stream, heartbeat, password protection
Output	PIF out	1pcs RJ45 10M/100M
Output	vedio out	1Vp-p Composite Output(75Ω/BNC)

Bullet data:

Camera	MODEL	TL-MB50-001
	Signal system	PAL/NTSC
	Min Illumination	COLOR:0.6Lux @(F1.2,AGC ON),0 LUX with IR White and black 0.08Lux @ (F1.2,AGC ON),0 LUX with IR
	Shutter	1/50(1/60)"- 1/100,000"
	Day &Night System	IR-CUT
	Lens	3.6mm Lens 24pcs F5mm IR leds
	waterproof rate	IP66
	Camera interface	CS
vedio	Vedio Compression	H.264 High Profile
vedio	compressed output	100 Kbps~8Mbps
Image	Pixel	720P
	Frame Rate	50Hz:25fps/30fps
	Image setting	Saturation,brightness,contrast can ajust by IE browser and client-side
I/O	Remote	Remote full access via IE&Client software
	Smart Analytics	Auto
	Network Transmission	TCP/IP,HTTP,DHCP,DNS,DDNS,PPPOE,SMTP,NTP(HTTPS, RTP/RTSP, SIP ,802.1x,IPv6)
	Access Protocol	onvif
	Universal Utilities	Scintillation, double stream, heartbeat, password protection
Output	PIF out	1pcs RJ45 10M/100M
Output	vedio out	1Vp-p Composite Output(75Ω/BNC)

AHD DVR Data:

Model	TL-AD7004	TL-AD7008
Main Prcessor	Embedded processor
Video Input	4 channel,BNC	8channel,BNC
Standard	NTSC(525Line,60f/s),PAL(625Line,50f/s)
Audio Input	4 channel,BNC
AUDIO Output	1 channel,BNC
Display Interface	1 HDMI,1VGA,1BNC
Resolution	19201080,12801024,1280720,1024768,800*600
Display Split	1//4	1/4/8/
Privacy Masking	4 rectangular zones(each camera)
OSD	camera title,Time,Video loss,Camera lock,Motion detection,Recording
Resolution	720P(1280720/1280600)/960h(960576/960480)/D1/4CIF (704576/704480)/CIF(352288/352240)/QCIF(176144/176120)
