Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > Cctv Camera hd Cvi Camera 8ch 720P CVI Kit HDMI 1 Mp 4 Indoor Dome and 4 Outdoor Bullet CCTV Video Cameras Kit

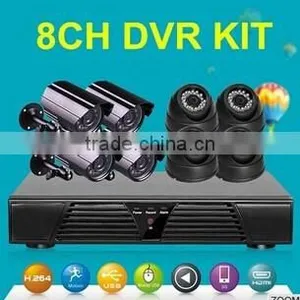

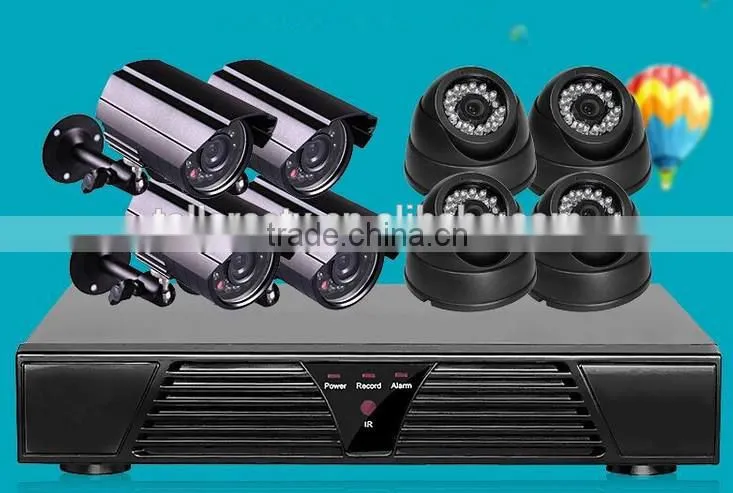

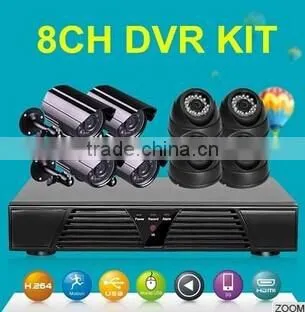

Cctv Camera hd Cvi Camera 8ch 720P CVI Kit HDMI 1 Mp 4 Indoor Dome and 4 Outdoor Bullet CCTV Video Cameras Kit
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Tollar
Model Number:
TL-N80DB-8H1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Security Camera Set Used Day Night Kit Dvr 4 Cameras 4ch HD 720p Cctv Kit Camera hd SystemNegotiableMOQ: 1 Set -
Cctv Housing Video Camera With Dvr Used Day Night Cctv Camera 4ch HD 720p Cctv Kit Security Camera SystemNegotiableMOQ: 1 Set
-
Dvr H.264 Factory Waterproof Camera Used Day Night Cctv Camera PTZ 4ch HD 720p Cctv Kit Security Camera SystemNegotiableMOQ: 1 Set
-
Cctv Housing Supplier of Camera ip Security System HD H.264 P2p 720P 16ch IP Kits With 10pcs Domer&6pcs Bullet P2p ip CameraNegotiableMOQ: 1 Set
-
Underwater ip Camera hd Camera Network P2p HVR Cms Free P2p 720P IP Onvif Wifi Camera KitNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Tollar
Model Number
TL-N80DB-8H1
Type
Digital Camera
Style
Other, 4 indoor dome and 4 outdoor bullet video cameras
Sensor
Other, HD 720P CVI Camera + 720P CVI DVr
Technology
Infrared
Special Features
Other, Waterproof / Weatherproof, H.264 8CH 720P CVI KIT support cloud p2p plug and play
Specifications
Specifications Security Camera System:1.HD camera kit 8ch CVI
2.4pcs Indoor CVI Cameras + 4pcs outdoor CVI Cameras+8CH 720P
P2P dvr system 8ch 720P CVI kit HDMI DVR 1 Mp 4 indoor dome and 4 outdoor bullet CCTV Security Camera System
Product Description
CVI KIT Specification:
| Image Sensor | 1/3" 1 Megapixel CMOS HD CVI 720P |
| Resolution | 1280*720 |
| Video Frame Rate | 720p 25/30fps |
| Synchronization | internal |
| Min.illumination | 0.002Lux F1.2(AGC ON),0Lux IR on |
| Video Output | 1-channel BNC HD CVI high definition video output/CVBS standarddefinition video output(can switch) |
| camera Features | |
| Lens | 3.6mm MP MRT |
| LED | 24pcs F5 LEDS |
| IR Range | 10-25M |
| Day/Night | Auto(ICR)/Color/ B/W |
| General | |
| Power supply | DC12V±10% |
| Working Environment | -30℃~+60℃/Less than 95%RH(no condensation) |
| Transmission Distance | Over 500M via 75~3 Coaxial Cable |
| Ingress Protection | IP67 |
CVI DVR Data:
| Model | TL-CVD7004 | TL-CVD7008 |
| Main Prcessor | Embedded processor | |
| Operating system | Embedded LINUX | |
| Video Input | 4 channel,BNC | 8channel,BNC |
| Standard | NTSC(525Line,60f/s),PAL(625Line,50f/s) | |
| Display Interface | 1 HDMI,1VGA,1BNC | |
| Resolution | 1920*1080,1280*1024,1280*720,1024*768,800*600 | |
| Display Split | 1/4 | 1/4/8/ |
| Privacy Masking | 4 rectangular zones(each camera) | |
| OSD | camera title,Time,Video loss,Camera lock,Motion detection,Recording | |
| Video/Audio compression | H.264/G.711 | |
| Resolution | 720P(1280*720/1280*600)/960h(960*576/960*480)/D1/4CIF(704*576/704*480)/CIF(352*288/352*240)/QCIF(176*144/176*120) | |
| Record Rate Main stream Extra Stream |
720P/960H/D1/HD1/2CIF/CIF(1-25/30fps) | |
| CIF/QCIF(1-25/30fps) | ||
| Bit Rate | 48-6144kb/s | |
| Record Mode | Manual,Schedule(Regular(continuous),MD),Stop | |
| Record Interval | 1-120min(default;60min),Pre-record;1-30sec,Post-record:10-300 | |
| Trigger Events | Recording,PTZ,Tour,Video Push,Email,FTP,Spot,Buzzer&Screen | |
| Video Detection | Motion Detection,MD Zones:396(22/8),Video loss&camera Blank | |
| Alarm Input | 4 channel | 8 channel |
| Sync Playback | 1/4 | 1/4/8/ |
| Search Mode | Time/Date,MD&Exact search(accurate to second) | |
| Playback Functions | Play,Pause,Stop,Rewind,Fast play,Slow play,Next file,Previous file | |
| Backup Mode | USB Device/network | |
| Network Ethernet | RJ-45 port(10/100M/1000M) | |
| Network Functions | HTTP,IPv4/IPv6,TCP/IP,UPNP,RTSP,UDP,SMTP,NTP,DHCP,DNS | |
| Max User Access | 128 users | |
| Smart Phone | iphone,ipad,Android,Windows,Phone | |
| Power supply | DC12V | |
Picture:
Packaging & Shipping
Our Services
1.After-sale service
All our products have 2 years warranty
Welcome to VIST OUR FACTORY AND TEST OUR samples!
2. Faster delivery:
Within 1-3 days for sample payment received
Within 3-7 days for medium & large order after payment received
3.Delivery term:
By Express(DHL/FEDEX/TNT/UPS/EMS).By Air ,By Sea.
