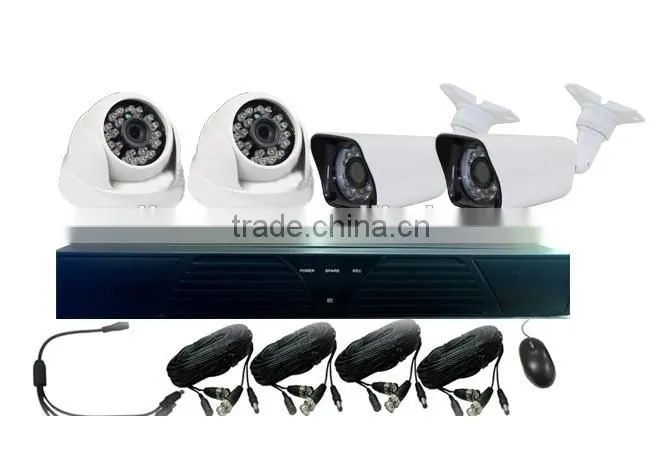

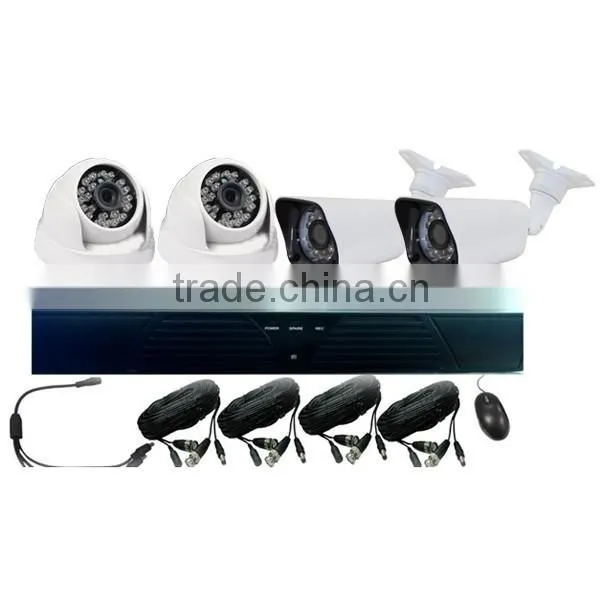

Help CenterHD 720P Full D1 4ch AHD Kit, 4channel P2P AHD DVR Kit H.264 DIY DVR Kit
Related Products
-
HD DIS 1.3MP AHD SONY Super Camera High Definition Bullet CCTV CameraUS$ 0.5 - 1MOQ: 1 Piece -
AHD Sony Surveillance Camera High Resolution Outdoor Bullet CCTV Camera Long DistanceUS$ 0.5 - 1MOQ: 1 Piece
-
HD 1.3MEGE PIXEL AHD Sony 238 Surveillance Camera High Resolution Bullet CCTV Camera Long DistanceUS$ 0.5 - 1MOQ: 1 Piece
-
2015 Best Selling Security Surveillance Full hd Cctv Camera Used Day Ninght Cctv Camera 4ch 720p Indoor Outdoor ir CameraNegotiableMOQ: 1 Set
-
Hot New Products for 2015 Video Camera Security Camera Outdoor 4CH FULL 720P CVI Kit Outdoor Camera P2P 3G 720P hd Cvi CameraUS$ 112 - 210MOQ: 1 Set
AHD (Analog High-Definition) analog HD System / Economy 4CH 720P Realtime AHD DVR
Features:
AHD (Analog High-Definition) analog HD System features:
1. Continuation of the existing analog system connections, resolution up to 720P or 1080P;
2. Adopt 75-3 (or more) coaxial, transmission distance up to 500 meters; Low-cost, long distance, without delay, high efficiency, noise immunity and easy installation.
3. Easily upgrading the old analog systems to the Mega high-definition system without changing the installed coax cables and equipment
4. Supports 4 channel 720P real-time recording and 4 channel 720P real-time playback.
5. The AHD cameras should work with the AHD DVR
Products Feature:
1.Use the standard H.264 video compression format stream lower ,high quality, longer recording time, taking up less bandwidth resources
2. GUI OSD interface, USB Mouse controller, more intuitive, easier to use for user-friendly
3. Support 4ch 720P realtime recording resolution
4. Dual-stream design, network remote view effects and local recording effects parameters can be set separately, independently of each other.
5. Hexaplex operation simultaneously: Preview, recording, playback, backup, network live, mobile phone view
6 .Multiple record mode: Auto, timer, motion and alarm recording mode
7. Recording playback support: Normal play, Speed play, Fast back play, Manual single-frame slow play
8. Support drag the progress bar can be targeted playback time directly
9. Support 4CH 720P playback, each channel can be enlarge to full screen
10. Support Network function: one IE browser centralized monitoring and CMS Software for multiple DVR
11. Support DHCP, DDNS, PPPoE and NTP network service
12. Supports remote surveillance up to 10 users simultaneously via the Ethernet Explorer web browser
13. Support more than 17 kinds protocol of the PTZ control
14. Supports Multiple backup mode: USB flash drive, USB hard disk and network backup
15. Support pre-alarm recording (before 10 sec),not lose any suspicious screen
16. Support Mobile phone remote view by Android, Iphone
17. Support High-Definition VGA/HDMI output(VGA and HDMI can work at the same time)
18. Support alarm triggered recording will send alerts matter to the designated email.
19. Support one HDD
20. Support super cloud service (specialized website for super cloud service: ), one step to do remote control easily & conveniently without any complicated setting.
21. Support 3G & WIFI extension
22. System auto recovery to power after power reconnected, and return to the pre-power-down state
Specifications:
Model |
REK-7104M |
Video Compression Format |
H.264 |
Video System |
NTSC / PAL |
GUI OSD |
YES |
Video Input |
4CH BNC input(composite video signal 1Vp-p 75Ω BNC) |
Video Output |
1CH VGA/1CH HDMI/1CH BNC |
Audio Input/Output |
1CH audio input,1CH audio output(RCA) |
Maximum Recording Rate |
720P:1280×720 pixels with 30FPS <NTSC> /1280×720 pixels with 25FPS <PAL> |
Image Quality Setting |
Supper Best, Well, Good, Medium, Normal and Bad |
Hard Disk Storage |
Support 1 SATA HDD |
Alarm Input/Output |
NO |
Multiplex Operation |
Live display/record/playback/backup/network transmit |
Recording Mode |
Manual/Timer/Motion/Alarm |
Playback Mode |
Multiple slow and rapid play speeds, manual and single-frame play modes, and support of drag the sliding bar to set. |
Backup Device |
USB flash drive, USB hard disk and network backup |
Pre-alarm Recording |
Recording for 10 seconds before alarming |
Network Protocol |
TCP/IP, PPPOE , DDNS and NTP |
Ethernet remote view |
Support remote surveillance up to 10 users simultaneously |
CMS software |
YES |
Mobile phone View |
YES |
Electronic zoom |
YES |
VGA Interface |
YES |
Log record function |
YES |
Image Tour |
YES |
IR Remote control |
YES |
Video Loss Detection |
YES |
Video Adjustable |
Hue /Saturation /Contrast /Brightness adjust |
PTZ Control |
YES |
USB Mouse |
YES |
Power Source |
12V/2A |
Key Lock(Password Protection) |
YES |
Power-down recovery function |
YES |
Size(mm) |
260(L) x 44(H) x 221(W) |
Package: 25pcs in a pallet; 500pcs in a carton, Size: 30*30*37CM Weight: 6.5kgs.
Shipping: We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS.
