Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > Cctv Housing Full hd Cctv Camera Cctv ip Camera HD H.264 P2p 720P 16ch IP Kits With 10pcs Domer&6pcs Bullet P2p ip Camera

Cctv Housing Full hd Cctv Camera Cctv ip Camera HD H.264 P2p 720P 16ch IP Kits With 10pcs Domer&6pcs Bullet P2p ip Camera

Name: Cctv Housing Full hd Cctv Camera Cctv ip Camera HD H.264 P2p 720P 16ch IP Kits With 10pcs Domer&6pcs Bullet P2p ip Camera
Brand: TOLLAR
SKU: 132304455
Availability: InStock

Cctv Housing Full hd Cctv Camera Cctv ip Camera HD H.264 P2p 720P 16ch IP Kits With 10pcs Domer&6pcs Bullet P2p ip Camera thumbnail-1

Cctv Housing Full hd Cctv Camera Cctv ip Camera HD H.264 P2p 720P 16ch IP Kits With 10pcs Domer&6pcs Bullet P2p ip Camera photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

TOLLAR

Model Number:

TL-720PK1006

Contact Supplier Request Quote Chat Now

Shenzhen Tollar Security Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name TOLLAR

Model Number TL-720PK1006

Type Other, Digital Camera, Digital Camera,IP Camera

Style Other, 10pcs domer&6pcs bullet, Dome Camera

Sensor Other, CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

Specifications

1.16channel P2P IP camera Kit with 3g
2.IR distance 30m night vision
3.720P Plastic dome&Bullet
4.16pcs cable
5.CE,ROHS,

cctv housingsupplier of camera ip security system HD h.264 p2p 720P 16ch IP Kits with 10pcs domer&6pcs bullet p2p ip camera

Product Description

1080p/720p hd ip camera

support high resolution 1 Mega 2mp,3mp

Support H.264 Video compression

Support Ptz controlling,Alarm I/O,Two-way Intercom

support ONVIF agreements.

support system functions updating

support(Iphone,Windows Mobile,BlackBerry,Symbian,Android)

Product Description

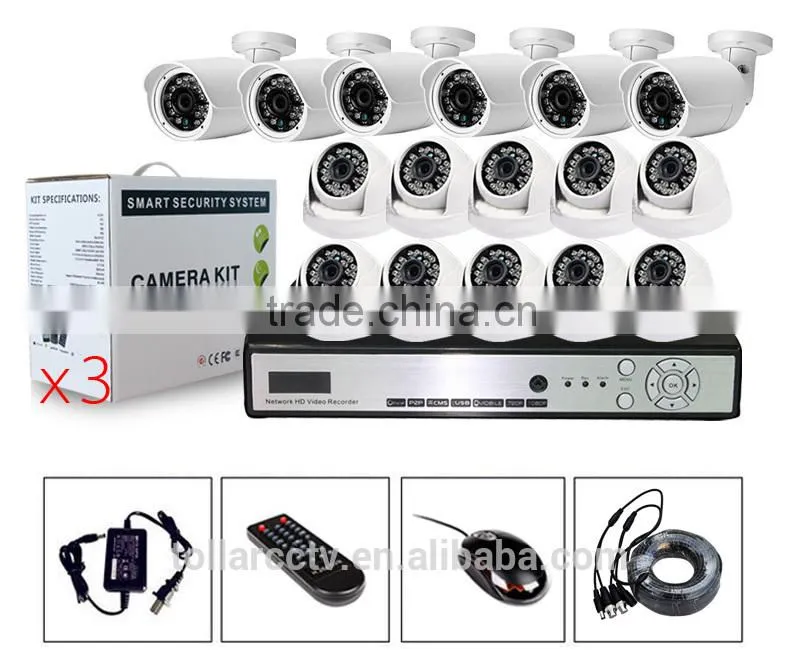

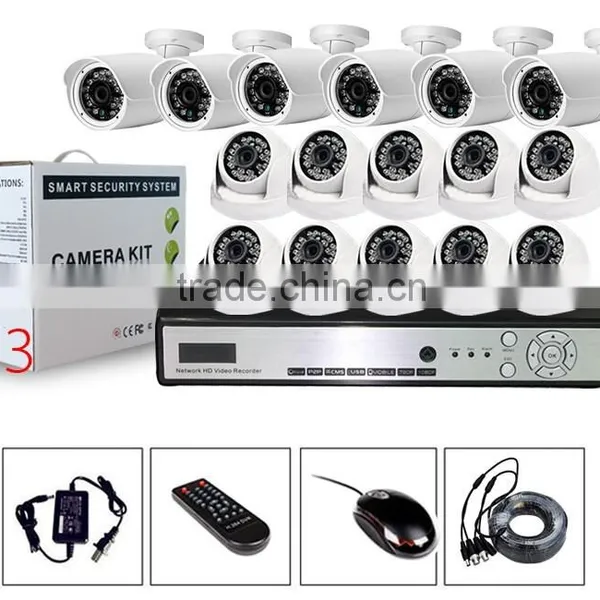

PICTURES:

Picture shown reality

IP CAMERA DATA

Model	TL-MDR-01
Lens	3.6/6/8MM MP lens optional
LED	pcs F5 Leds
IR Range	20-35m
Chipset	HI3518E+OV9712/720P HI3218C+AR0130/960P H3516C+IMX222/1080P
Video	H.264 main profile,support dual stream,AVI format
Resolution	1280720P 1280960 1920*1080P(Optional)
Stream	1MP/1.3MP/2.0MP 25fps(PAL)/30fps(NTSC)
Audio	1CH Input&Output(optional)
CMS System	64pcs 32-ch NVR connetc,256-ch preview,maximum 1080p, PTZ control,Network playback,Network backup,Network Menu setup,Snapshot,PC record,AVH file playback,AVH file transform to AVI file,etc
Network	1*RJ45,10/100;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/Upnp
WDR	Optional
Auto IRIS	1*Audio iris port,support DC driver auto iris camera(optional)
Bastic Function	support WEB remote config,OSD,Motion detect,record, snapshot(MJPEG),CMS,Mobile surveillance
ONVIF	ONVIF V2.4
Mobile surveillance	support(Iphone,Android,BlackBerry,Symbian&Windows Mobile etc.)
Browser	Google chrome/Firefox/Safari/Exploer
Power	DC 12V Power supply/POE(Optional)
3G	Support(optional)
Wifi	Support(optional)
Alarm output	Support(optional)
Storage Card	Support(optional)

NVR

Model	TL-NX7004	TL-NX7008
Main Prcessor	Embedded processor
Operating system	Embedded LINUX
Video Input	4 channel,BNC	8channel,BNC
Standard	NTSC(525Line,60f/s),PAL(625Line,50f/s)
Audio Input	4 channel,BNC
AUDIO Output	1 channel,BNC
Audio Two-way Talk	Reuse audio input/output channel 1
Display Interface	1 HDMI,1VGA,1BNC
Resolution	19201080,12801024,1280720,1024768,800*600
Display Split	1/4	1/4/8/
Privacy Masking	4 rectangular zones(each camera)
OSD	camera title,Time,Video loss,Camera lock,Motion detection,Recording
Video/Audio compression	H.264/G.711
Resolution	720P(1280720/1280600)/960h(960576/960480)/D1/4CIF(704576/704480)/CIF(352288/352240)/QCIF(176144/176120)
Record Rate Main stream Extra Stream	720P/960H/D1/HD1/2CIF/CIF(1-25/30fps)
	CIF/QCIF(1-25/30fps)
Bit Rate	48-6144kb/s
Record Mode	Manual,Schedule(Regular(continuous),MD),Stop
Record Interval	1-120min(default;60min),Pre-record;1-30sec,Post-record:10-300
Trigger Events	Recording,PTZ,Tour,Video Push,Email,FTP,Spot,Buzzer&Screen
Video Detection	Motion Detection,MD Zones:396(22/8),Video loss&camera Blank
Alarm Input	4 channel	8 channel
Sync Playback	1/4	1/4/8/
Search Mode	Time/Date,MD&Exact search(accurate to second)
Playback Functions	Play,Pause,Stop,Rewind,Fast play,Slow play,Next file,Previous file
Backup Mode	USB Device/network
Network Ethernet	RJ-45 port(10/100M/1000M)
Network Functions	HTTP,IPv4/IPv6,TCP/IP,UPNP,RTSP,UDP,SMTP,NTP,DHCP,DNS
Max User Access	128 users
Smart Phone	iphone,ipad,Android,Windows,Phone
Power supply	DC12V

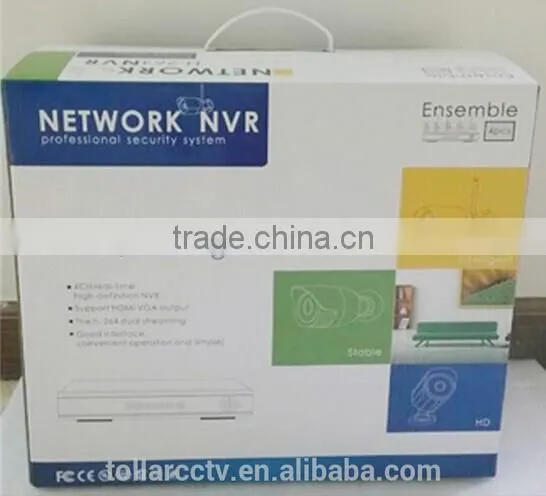

Packaging & Shipping

Our Services

1.Warraty: 2 years warranty

2.Service: supply OEM order

3.Packing: all products will be strictly inspected before packing ,the packing will be

neutral packing or as your request

4.Delivery: sample order in stock ,2-7days after payment ,delivery time on the quantity

5.Shipment: by express(DHL/FEDEX/TNT/UPS/EMS).By Air ,By Sea.

6.Payment: T/T,Western Union .L/C

FAQ

Q: How long is the warranty?
A: 2 -years-warranty since delivered out.

Q: What's the MOQ?
A: 1pc for sampe, at least 10pcs after sample order.

Q: How long is the delivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.

Q: Why do you choose us?
A: Choose Tollar security equipment co.,ltd; Choose a qualified CCTV Products manufacturer!
We will try our best to satisfy the products you need, we will provide you with the most satisfactory service.

If you want to know more, You can contact us. We also welcome you to visit our factory in Shenzhen.
