Specifications
1. 1/4 CMOS 9712 HD 720P2. 1.0megapixel resolution(1280*720P)
3. 0LUX IR ON
HD AHD 1.0MP Camera module
AHD is innovative technology which is able to reach HD performance like HD-SDI.
AHD is the abbreviation for Analog High Definition. This system provides the advantage of what SDI can not achieve - not enough transmission distance.
AHD can transmit up to 500 meters and no special requirement for cabling.
*What is AHD?
Analog High Definition
*What if AHD's features:
Oaxial transmission,super long range,convenience for users
FEATURES
1,Using the high performance sensor, image is clear and delicate;
2,Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial and distortion;
3,Analog HD 720P/ 960P@AHD video output;
4,Support OSD menu options, can be freely adjusted image and function;
5,The transmission distance over 500 meters;
6,Need to access AHD DVR;
7,Support the ultra low illumination;
8,Support automatic electronic shutter function, adapt to different monitoring environment;

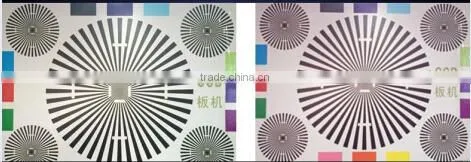

Why chose AHD ?
HD AHD 1 Megpixel 700TVL AHD 100W 960H
BLC ON BLC OFF WDR ON WDR OFF
W/B AHD Camera W/B Other Camera Demist ON Demist Off
Technical parameters
Specifications |
AHG-5010PL-L |
sensor |
1/4 OV9712 |
definition |
PAL/NTSC :AHD-L definition(TVL)≤720P |
Mini illumination |
Color:0. 1Lux@(F1.2,AGC ON),0Lux with IR |
Black white:0.01Lux@(F1.2,AGC ON),0Lux with IR | |
Photosensitive resistance mouth |
1 photoresistor interface, support of photosensitive resistance input signal and image, IR - CUT, the linkage of the lamp |
The shutter |
1/50(1/60)s to 1/100,000s |
Day and night functionality |
Support IR-CUT |
lens parameters |
C/CS port,M12 optional |
synchronization |
internal synchronization |
Signal to noise |
>58dB |
Working temperature humidity |
"-10℃ ~ 60℃,humidity≤90%(no condensation) |
Power supply |
DC12V±10% |
Power Dissipation |
<5W |
size |
38*38mm |
Comparison with HD-CVI and other cameras as the following:
Comparisons |
AHD |
TVI |
CVI |
NTSC/PAL |
Yes |
No |
Yes |
Compatible with 960H&D1 |
Yes |
No |
Yes |
ISP & TX Combo |
Yes |
No |
Yes |
HD Reslution |
720P@25/30 960P@50/60
|
720P@25/30 960P@50/60 1080P@25/30 |
720P@25/30 960P@50/60 1080P@25/30 |
|
Transmission Distance (75-3 Coax@720P) |
500m |
300m |
500m |
Audio |
Yes |
No |
Yes |
|
Coaxial Transmission Control Signal |
Yes |
Yes |
Yes |
Analog Matrix |
Yes |
No |
No |
Analog Video Divider |
Yes |
No |
No |
Open Standards |
Yes |
No |
No |
