Place of Origin Guangdong, China
Brand Name TL,OEM/ODM order is welcomed !
Model Number TL-CVI101
Type Digital Camera
Style Other, FULL HD CMOS camera board
Sensor Other, HD Megpaixel CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

Specifications

1.full hd camera module 1.3 MP CVI board;
transmission with any video quality loss ;
2.HD CVI BNC interface.

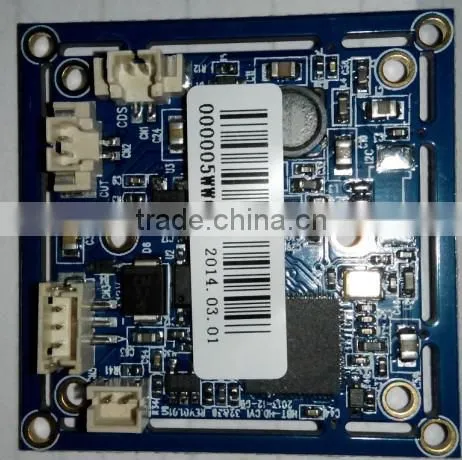

full hd camera module 1.3 megapixel CVI security camera board




Product Description
  •   Main features of HD CVI Camera:

1. 1.3Megapixel 720P CMOS Sensor HD CVI CCTV Camera ;

2. High resolution: 1280*720 pixels, Real-time preview, Compare with the HD-SDI and IPCam, without delay,  trailing and lossing image ;

3. High speed, Long distance real-time transmission, Over 500 meter via 75-3 coaxial cable  ;

4. Easy  to  install,  instead of the Old Analog Security System do not need rewiring.

  • Specification of HD CVI Camera module:
Signal System PAL
Main processor High-performance ISP processor
Image Sensor 1/3"1.3 Megapixel CMOS
Horizontal Resolution 1280(H)*720(V)
Video Output HDCVI interface output
Function White Balance Manual ATW:ON/OFF
Day/Night IR CUT(automatic switch)
BLC/HLC ON/OFF/ATW
DNR 3D-DNR
Image Control Mirror/Reverse
Motion Detection ON/OFF(Optional)
Privacy Mask ON/OFF(Optional)
Audio Through coaxial transmission
RS485 Through coaxial transmission
Digital image stabilization ON/OFF
Digital Zoom 10X
Electronic Shutter Manual/Auto/Aperture Priority (interval adjustable
support slow shutter,1-1/10000)
Power input DC12V+--10%
Consumption <8W
Operate temperature -10°C-+50°C
Storage temperature -20°C-+60°C

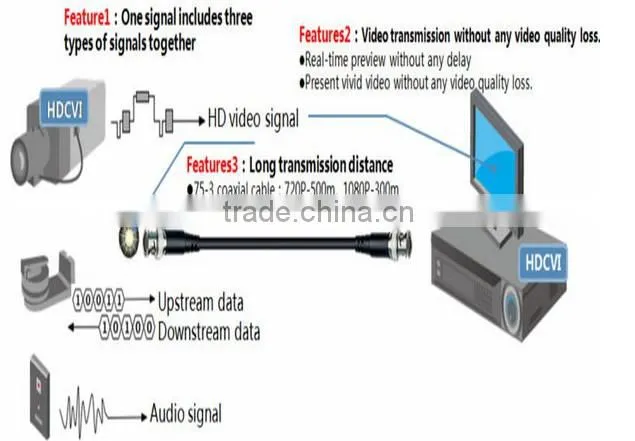

  • HD CVI --Technology Advantage:

full hd camera module 1.3 megapixel CVI security camera board

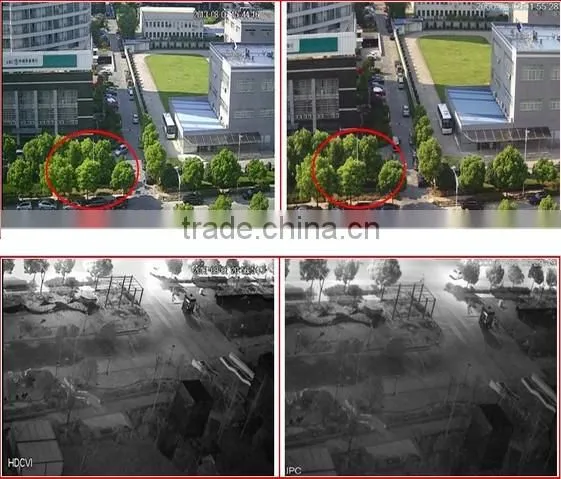

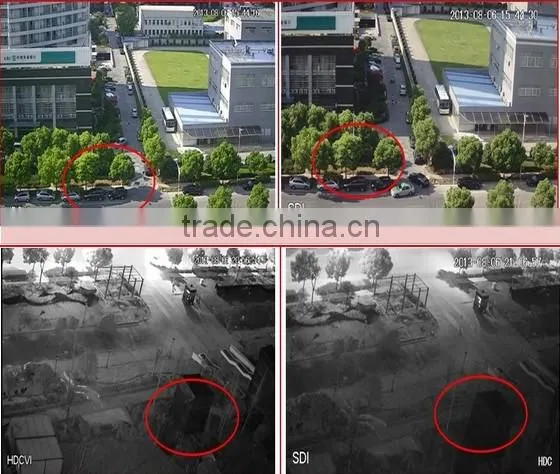

  • HD-CVI  VS  HD-SDI

1. Longer Transmission Distance

2. Better Anti-Interference Capability

full hd camera module 1.3 megapixel CVI security camera board

  • HD-CVI  VS IP

1. Reliability

HDCVI adopts P2P transmission to ensure a smooth and reliable transmission; while the transmission of network camera is based on Ethernet and thus may lead to network jitter and packet loss;



2. Real-time

The network HD features video buer technology and the delay is controlled within 300 milliseconds in the general and fair networking environment; However, HDCVI features no latency capability for an outstanding real-time performance;



3. No Compression

For HDCVI, there is no compression processed to maintain its original eect and thus present in vivid image quality.

full hd camera module 1.3 megapixel CVI security camera board



  • Application:

full hd camera module 1.3 megapixel CVI security camera board
