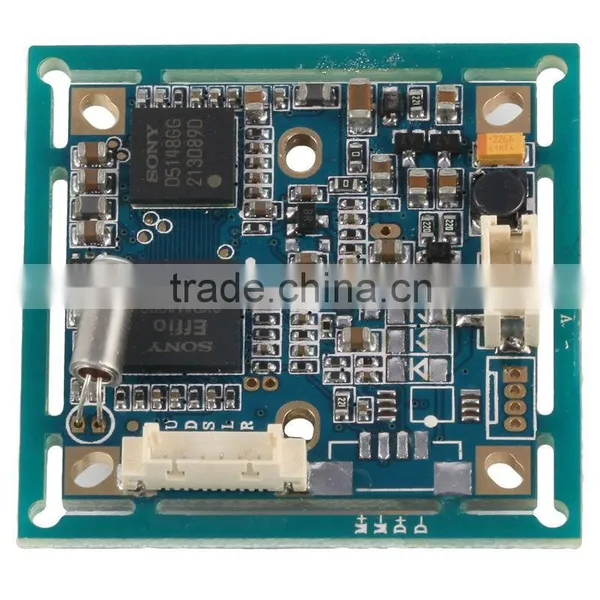

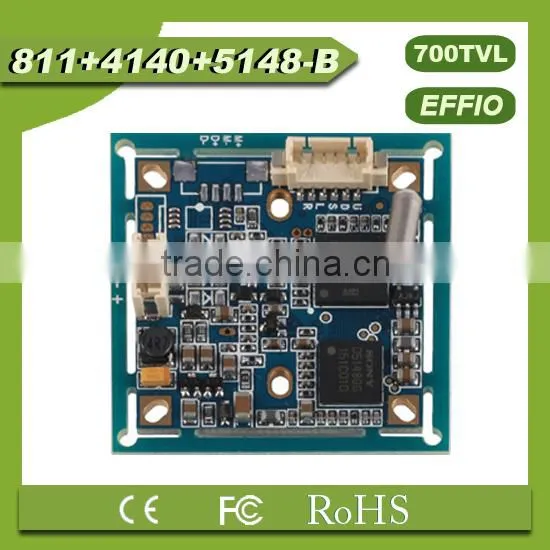

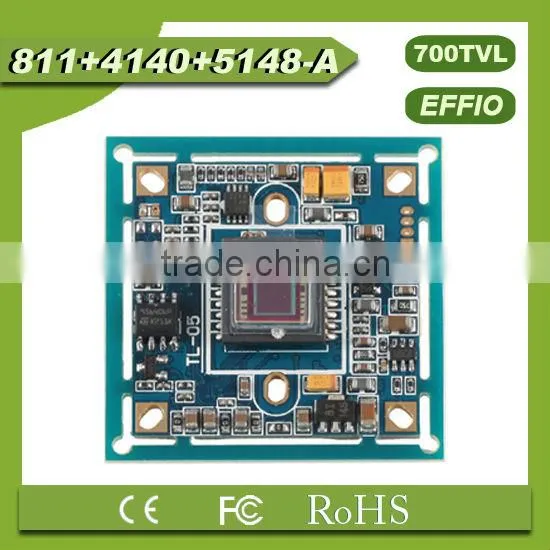

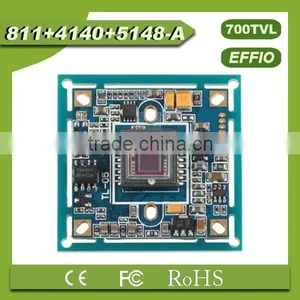

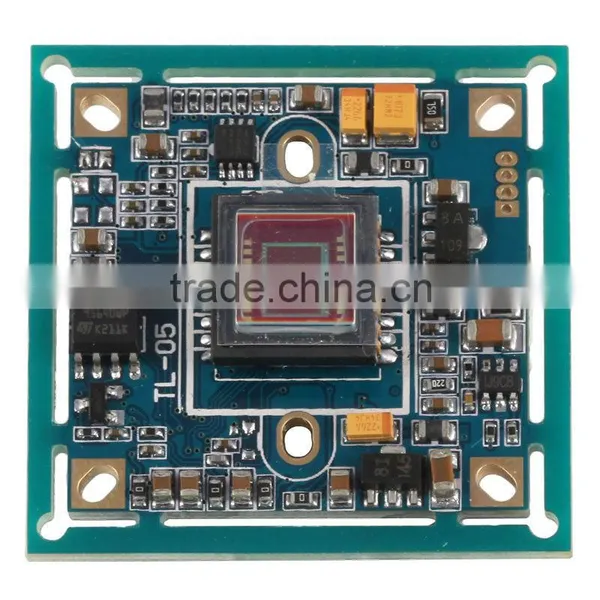

Sony Effio 1/3 700tvl CCD Board Camera 811+4140

US$ 7.5 - 8.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

05005--811

Shenzhen Tollar Security Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number 05005--811

Type Analog Camera

Style Other

Sensor CCD

Technology Infrared

Special Features Waterproof / Weatherproof

Sony effio 1/3 700tvl CCD Board Camera 811+4140

Product Description

1.1/3 sony effio 700tvl ccd module

2.We are the manufacture of ccd board with good quality and best price

Technical Specification

1/3 Sony Effio CCD Board 4140+811 700TVL

Model Number	05005-811
Image Sensor	1/3 Sony 960H CCD Sensor
DSP	CXD4140GG
CCD	ICX811AK
AFE	D5148GG
Horizontal Resolution	700TVL
Signal System	PAL/ NTSC
Effective Pixels	PAL: 976H× 582V ; NTSC: 976H× 494V
Day / Night Mode	Color to Black-white
Min. illumination	0.01Lux/ F 1.2 (IR ON)
Video Output	1.0Vp- p75Ω
Sync System	internal
OSD Menu	English / Chinese
Shutter Speed	1/50(1/60) ~1/100,000 Sec.
Gain Control	Auto
Backlight Compensation	Auto , HLC / Backlight Compensation
Digital Noise Reduction	2DNR
Digital Wide Dynamic	0-60
Aperture Control	Yes
SNR Ratio	≥48dB (AGC OFF)
Gamma Characteristics	45%
White Balance	On / OFF Switch
Power Supply	DC12V ±5%
Operating Current	83mA ±5%
Operating Temperature	-20° C~+60° C
Max. Relative Humidity	0.95
Net Weight	20g
Size	38×38 mm; 32×32 mm
