TL-720PK1006 HD H.264 P2p 960P 16ch IP Kits With 10pcs Nvr&6pcs Dome H.264 Wifi Nvr Kits

TL-720PK1006 HD H.264 P2p 960P 16ch IP Kits With 10pcs Nvr&6pcs Dome H.264 Wifi Nvr Kits thumbnail-1
TL-720PK1006 HD H.264 P2p 960P 16ch IP Kits With 10pcs Nvr&6pcs Dome H.264 Wifi Nvr Kits photo-1
US$ 1 - 775 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TOLLAR
Model Number:
TL-960PK1006
Contact Supplier Request Quote Chat Now
Shenzhen Tollar Security Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TOLLAR
Model Number TL-960PK1006
Type Other, Digital Camera, IP Camera
Style Dome Camera
Sensor CMOS
Technology Other, Infrared, Infrared
Special Features Waterproof / Weatherproof

Specifications

1.16channel P2P IP Kit with 3g
2.IR distance 30m night vision
3.720P Plastic dome&Bullet
4.16pcs cable
5.CE,ROHS,FCC

Product Description

TL-720PK1006 HD h.264 p2p 960P 16ch IP Kits with 10pcs Nvr&6pcs Dome h.264 wifi nvr kits



1080p/720p hd ip camera

support high resolution 1 Mega 2mp,3mp

Support H.264 Video compression

Support Ptz controlling,Alarm I/O,Two-way Intercom

support ONVIF agreements.

support system functions updating

support(Iphone,Windows Mobile,BlackBerry,Symbian,Android)

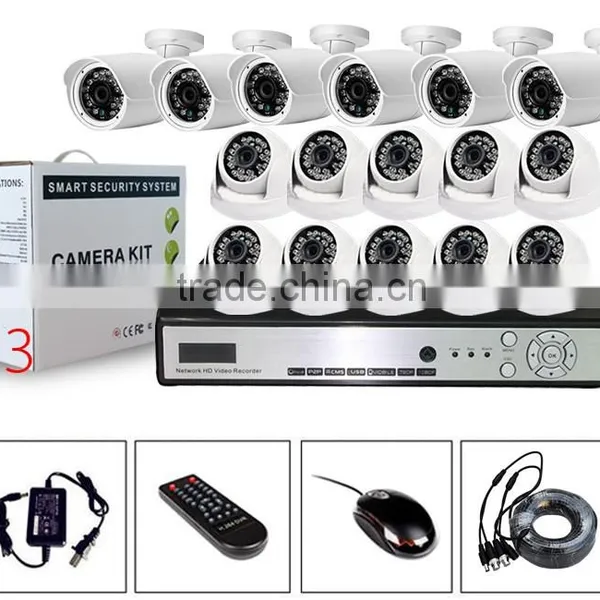

PICTURES:

 TL-720PK1006 HD h.264 p2p 960P 16ch IP Kits with 10pcs Nvr&6pcs Dome h.264 wifi nvr kits



Picture shown reality



TL-720PK1006 HD h.264 p2p 960P 16ch IP Kits with 10pcs Nvr&6pcs Dome h.264 wifi nvr kits



IP CAMERA DATA

Model TL-MDR-01
Lens 3.6/6/8MM MP lens optional
LED  pcs F5 Leds
IR Range 20-35m
Chipset HI3518E+OV9712/720P   HI3218C+AR0130/960P  H3516C+IMX222/1080P
Video H.264 main profile,support dual stream,AVI format
Resolution 1280*720P 1280*960 1920*1080P(Optional)
Stream 1MP/1.3MP/2.0MP  25fps(PAL)/30fps(NTSC)
Audio 1CH Input&Output(optional)
CMS System 64pcs 32-ch NVR connetc,256-ch preview,maximum 1080p,
PTZ control,Network playback,Network backup,Network Menu setup,Snapshot,PC record,AVH file playback,AVH file transform to AVI file,etc
Network 1*RJ45,10/100;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/Upnp
WDR Optional
Auto IRIS 1*Audio iris port,support DC driver auto iris camera(optional)
Bastic Function support WEB remote config,OSD,Motion detect,record,
snapshot(MJPEG),CMS,Mobile surveillance
ONVIF ONVIF V2.4
Mobile surveillance support(Iphone,Android,BlackBerry,Symbian&Windows Mobile etc.)
Browser Google chrome/Firefox/Safari/Exploer
Power DC 12V Power supply/POE(Optional)
3G Support(optional)
Wifi Support(optional)
Alarm output Support(optional)
Storage Card Support(optional)





 NVR

Model TL-NX7004 TL-NX7008
Main Prcessor Embedded processor
Operating system Embedded LINUX
Video Input 4 channel,BNC 8channel,BNC
Standard NTSC(525Line,60f/s),PAL(625Line,50f/s)
Audio Input 4 channel,BNC
AUDIO Output 1 channel,BNC
Audio Two-way Talk Reuse audio input/output channel 1
Display Interface 1 HDMI,1VGA,1BNC
Resolution 1920*1080,1280*1024,1280*720,1024*768,800*600
Display Split 1/4 1/4/8/
Privacy Masking 4 rectangular zones(each camera)
OSD camera title,Time,Video loss,Camera lock,Motion detection,Recording
Video/Audio compression H.264/G.711
Resolution 720P(1280*720/1280*600)/960h(960*576/960*480)/D1/4CIF(704*576/704*480)/CIF(352*288/352*240)/QCIF(176*144/176*120)
Record Rate   Main stream
              Extra Stream		 720P/960H/D1/HD1/2CIF/CIF(1-25/30fps)
CIF/QCIF(1-25/30fps)
Bit Rate 48-6144kb/s
Record Mode Manual,Schedule(Regular(continuous),MD),Stop
Record Interval 1-120min(default;60min),Pre-record;1-30sec,Post-record:10-300
Trigger Events Recording,PTZ,Tour,Video Push,Email,FTP,Spot,Buzzer&Screen
Video Detection Motion Detection,MD Zones:396(22/8),Video loss&camera Blank
Alarm Input 4 channel 8 channel
Sync Playback 1/4 1/4/8/
Search Mode Time/Date,MD&Exact search(accurate to second)
Playback Functions Play,Pause,Stop,Rewind,Fast play,Slow play,Next file,Previous file
Backup Mode USB Device/network
Network Ethernet RJ-45 port(10/100M/1000M)
Network Functions HTTP,IPv4/IPv6,TCP/IP,UPNP,RTSP,UDP,SMTP,NTP,DHCP,DNS
Max User Access 128 users
Smart Phone iphone,ipad,Android,Windows,Phone
Power supply DC12V




Packaging & Shipping

 Netural Hardboard box outside with air pocket for each one,for the box,we can design and print as your requirement.

first,you can take the sample from our aliexpress to order,for the large quantity,you can email or call me online,i'll give you more clear picture and lowest price.



TL-720PK1006 HD h.264 p2p 960P 16ch IP Kits with 10pcs Nvr&6pcs Dome h.264 wifi nvr kits

Our Services

 products manufacturing
24 hours online technical support
customised product sourcing
free technical training
2 years product warranty after-sale service

Company Information

tollar security equipment co.,ltd is one of the fast growing cctv manufactures in china,We are a modernized Hi-tech enterprise that specializes in developing high quality security products,combining both manufacturing and sales.
We deal in all kinds of CCTV cameras such as camera module,different types analog cameras,HD-Analog(CVI,AHD,TVI),IP,PTZ Speed Dome camera,dvr,nvr knit etc cameras,all our products have been certified by CE,FCC,ROHS.
Now our products have been successfully exported to over 100 countries,obtained full OEM/ODM experience,gained huge share of the market and popularity.we have more than 100 skilled workers are able to produce 30,000pcs of high-Quality CCTV camera and more than 100,000pcs chipset monthly.
We wish to serve different levels of organizations and customers in all kinds of sectors and make our best effort to meet clients' satisfaction.

TL-720PK1006 HD h.264 p2p 960P 16ch IP Kits with 10pcs Nvr&6pcs Dome h.264 wifi nvr kits





 TL-720PK1006 HD h.264 p2p 960P 16ch IP Kits with 10pcs Nvr&6pcs Dome h.264 wifi nvr kits

FAQ



Q: How long is the warranty?
A: 2 -years-warranty since delivered out.

Q: What's the MOQ?
A: 1pc for sampe, at least 10pcs after sample order.

Q: How long is the delivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.

Q: Why do you choose us?
A: Choose tollar security; Choose a qualified CCTV Products manufacturer!
We will try our best to find the products you need, we will provide you with the most satisfactory service. If you want to know more, You can contact us. We also welcome you to visit our factory in Shenzhen.
