Top quality best sell curtain poles glass ball finial
You Need a Service!
There are no frames between glass panels and each glass panel can freely slide to the left or right to open for ventilation or cleaning purpose with Finzone10 terrace glazing. Total or partial balcony enclosure or opening is achieved.The characteristics of Finzone10 terrace glazing makes the cleaning of the windows to be very easy,you can clean the reverse and facade with every glass panel.The balcony installed with Finzone10 terrace glazing looks like a transparent package balcony,which not only doesn't damage the appearance and style of the building,but also contributes a lot to the integral beauty of the balcony.
System features for curtain poles glass ball finial
Latest system: Finzone10 used for most kinds of balcony shape, special for terrace glazing.
Compensation profile: There is a compensation profile for upper profile that can adjust the gap between the window and ceiling.

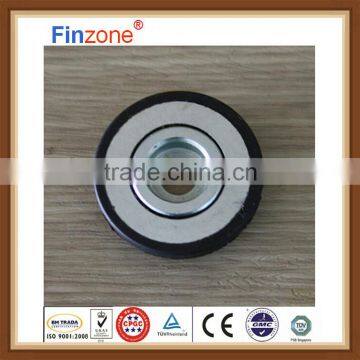

Best Rollers: Use big ball bearing wheels and slide smoothly.
Big glass panels: The max width of Finzone10 is 750mm and the max height is 2800mm for each glass panel.
Hinge axles: Use SS304 for the whole hinge axles so that can stand big weight and avoid the glass panels falling down.

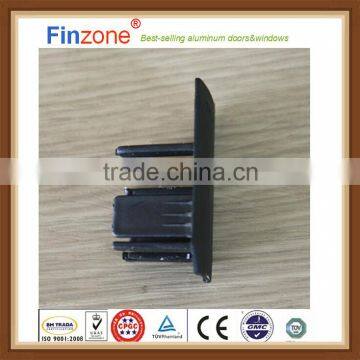

Protection cap: Apply nylon protection cap on glass profiles to avoid hurting.
Connection hardware: Use two parts of Zinc that easy to connect two track profiles with any angles.
Structure drawing for curtain poles glass ball finial
Mechanical properties for curtain poles glass ball finial
The guide profiles are made in compliance with 6063T5 as special profiles
Tensile strength of the frame from the guide profile: 860 kg
Guide profile deflection 80 kg / 3.8 m:
Perpendicular: 3.5 cm
Horizontal: 7.5 cm
No permanent changes in shape
Each glass element is supported by four 8 mm hinge axles, featuring a total of 10 horizontal wheels
Durability of Nylon bearing wheel in random profile loading: undamaged over 600 kg Gearing heat resistance (POM): approx +90 Degree C
Frost resistance: over -30 Degree C
All metal parts are non-corrodible: only aluminum and stainless steel
Installation on concrete and brick surface is by 8 mm stainless steel bolts and brass anchor
Sound insulation for curtain poles glass ball finial
For 100 Hz Reduction 6.7 dB
For 2400 Hz Reduction 13.5 dB
Measured according to international standards ISO 140-5 & ISO 717-1
Wind pressure for curtain poles glass ball finial
Finzone10 terrace glazing can support the wind speed according to the panel height and glass thickness
| wind speed | Beaufort scale description | Equivalent pressure | Maxiumum height for 10mm terrace glazing |
| 121km/h | Hurricane | 700Pa | 1.85m |
| 112km/h | Violent storm | 600Pa | 2m |
| 102km/h | Storm | 500Pa | 2.2m |
| 79km/h | Severe gale | 300Pa | 2.5m |
Function for curtain poles glass ball finial's shapes
Color choice for curtain poles glass ball finial:
Customers coming for curtain poles glass ball finial
Exhibitions for curtain poles glass ball finial
Users' projects for curtain poles glass ball finial
Effective Factory for curtain poles glass ball finial
Our Package for curtain poles glass ball finial
Certificates for curtain poles glass ball finial
curtain poles glass ball finial
