High quality competitive price professional tempered frameless glass window
You Need a Service!

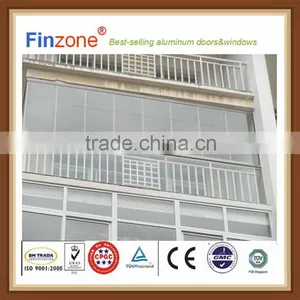

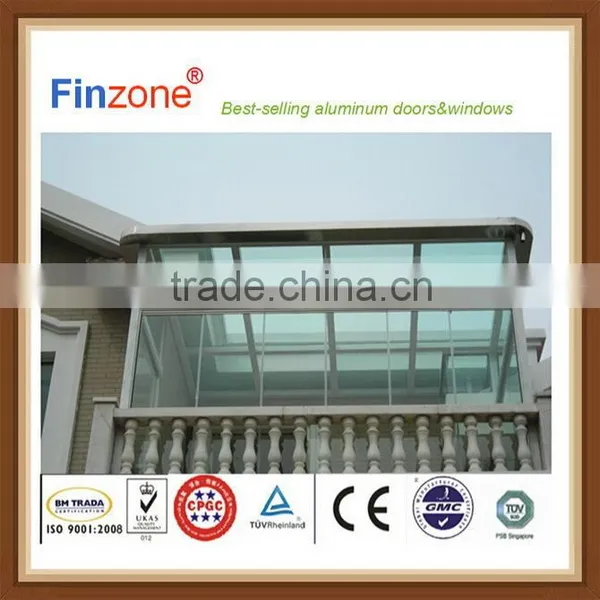

There are no frames between glass panels and each glass panel can freely slide to the left or right to open for ventilation or cleaning purpose with Finzone04 balcony glazing. Total or partial balcony enclosure or opening is achieved.The characteristics of Finzone04 balcony glazing makes the cleaning of the windows to be very easy,you can clean the reverse and facade with every glass panel.The balcony installed with Finzone04 balcony glazing looks like a transparent package balcony,which not only doesn't damage the appearance and style of the building,but also contributes a lot to the integral beauty of the balcony.
System features for tempered frameless glass window
Structure drawing for tempered frameless glass window
Mechanical properties for tempered frameless glass window
The guide profiles are made in compliance with 6063T5 as special profiles
Tensile strength of the frame from the guide profile: 860 kg
Guide profile deflection 80 kg / 3.8 m:
Perpendicular: 3.5 cm
Horizontal: 7.5 cm
No permanent changes in shape
Each glass element is supported by four 8 mm hinge axles, featuring a total of 10 horizontal wheels
Durability of Nylon bearing wheel in random profile loading: undamaged over 600 kg Gearing heat resistance (POM): approx +90 Degree C
Frost resistance: over -30 Degree C
All metal parts are non-corrodible: only aluminum and stainless steel
Installation on concrete and brick surface is by 8 mm stainless steel bolts and brass anchor
Sound insulation for tempered frameless glass window
For 100 Hz Reduction 6.7 dB
For 2400 Hz Reduction 13.5 dB
Measured according to international standards ISO 140-5 & ISO 717-1
Wind pressure for tempered frameless glass window
Finzone04 balcony glazing can support the wind speed according to the panel height and glass thickness
| wind speed | Beaufort scale description | Equivalent pressure | Maxiumum height for 8mm balcony glazing |
| 121km/h | Hurricane | 700Pa | 1.85m |
| 112km/h | Violent storm | 600Pa | 2m |
| 102km/h | Storm | 500Pa | 2.2m |
| 79km/h | Severe gale | 300Pa | 2.5m |
Function for tempered frameless glass window's shapes
Color choice for tempered frameless glass window
Customers coming for tempered frameless glass window
Exhibitions for tempered frameless glass window
Users' projects for tempered frameless glass window
Effective Factory for tempered frameless glass window
Our Package for tempered frameless glass window
Certificates for tempered frameless glass window
tempered frameless glass window
