Hot Sell Aluminium Window

Hot Sell Aluminium Window photo-1

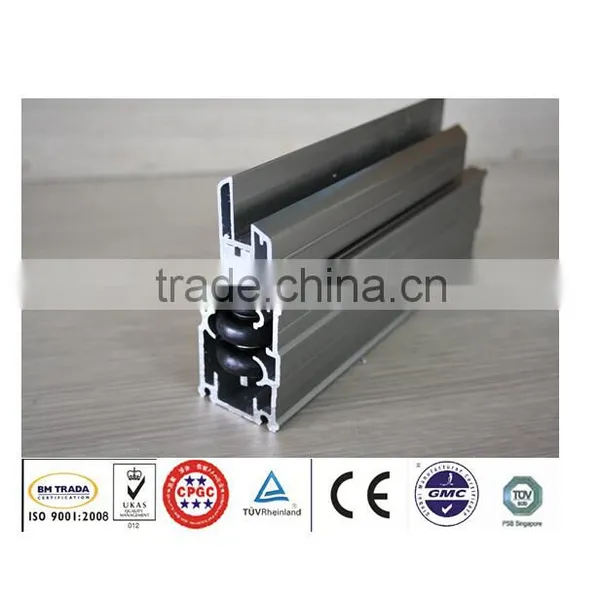

Hot Sell Aluminium Window photo-2

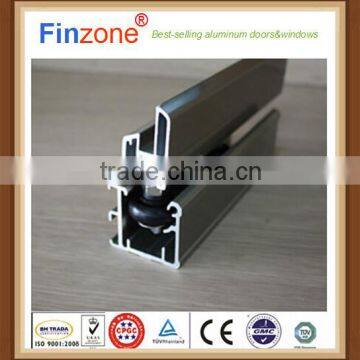

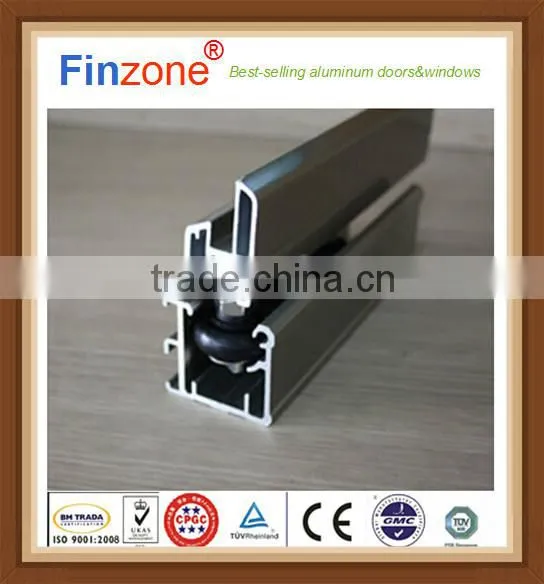

Hot Sell Aluminium Window photo-3

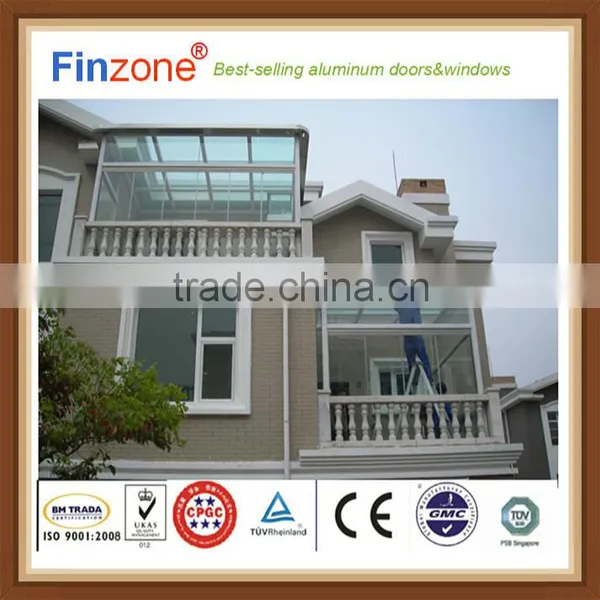

Hot Sell Aluminium Window photo-4

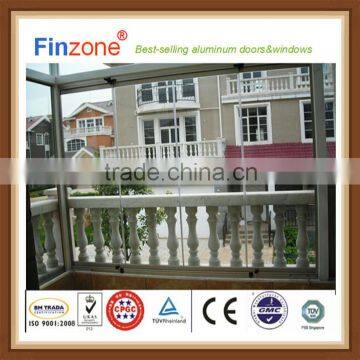

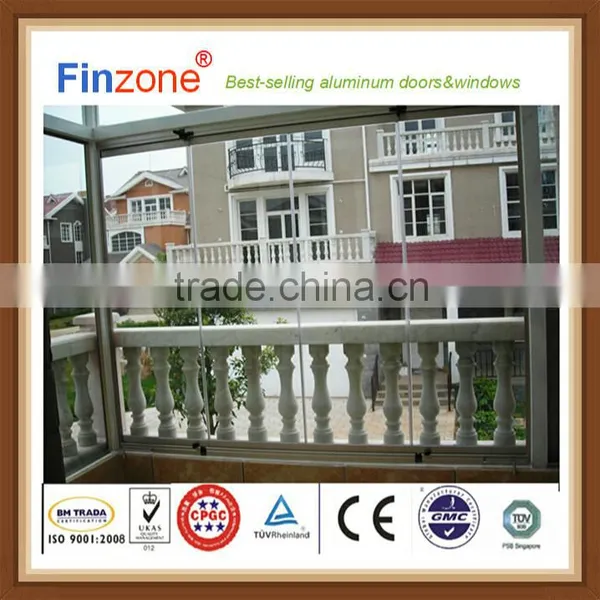

Hot Sell Aluminium Window photo-5
Hot Sell Aluminium Window photo-6
US$ 30 - 100 MOQ: 600 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Finzone
Model Number:
Finzone04
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name Finzone
Model Number Finzone04
Frame Material Aluminum Alloy
Open Style Sliding
Type Sliding Windows
Opening Pattern Horizontal

You Need a Service!

Hot sell aluminium window

There are no frames between glass panels and each glass panel can freely slide to the left or right to open for ventilation or cleaning purpose with Finzone04 balcony glazing. Total or partial balcony enclosure or opening is achieved.The characteristics of Finzone04 balcony glazing makes the cleaning of the windows to be very easy,you can clean the reverse and facade with every glass panel.The balcony installed with Finzone04 balcony glazing looks like a transparent package balcony,which not only doesn't damage the appearance and style of the building,but also contributes a lot to the integral beauty of the balcony.




System features for Finzone04 balcony glazing

Economical system:Finzone04 used for all kinds of balcony shape.
Cheaper price:The price is low, but the quality is good.
POM Rollers:Use POM wheel and slide stablity.
Hinge axles:Use SS304 for hinge axles so that can stand big weight, avoid the glass panels falling down.
Glass panels:The max width for glass panel is 650mm and the height is 2300mm.

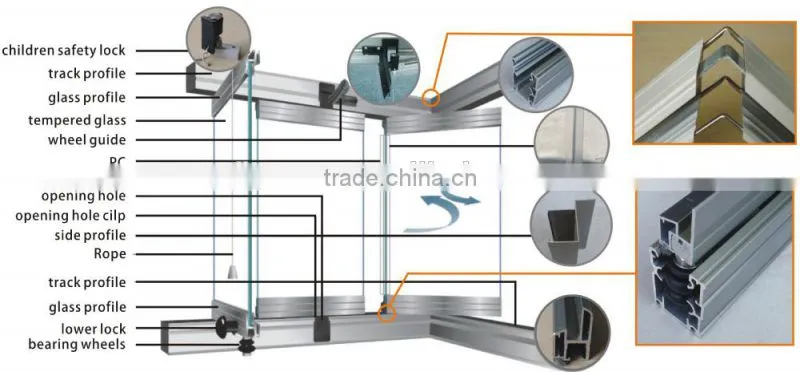

Structure drawing for Finzone04 balcony glazing

 Hot sell aluminium window





Mechanical properties for Finzone04 balcony glazing

The guide profiles are made in compliance with 6063T5 as special profiles

Tensile strength of the frame from the guide profile: 860 kg

Guide profile deflection 80 kg / 3.8 m:

Perpendicular: 3.5 cm

Horizontal: 7.5 cm

No permanent changes in shape

Each glass element is supported by four 8 mm hinge axles, featuring a total of 10 horizontal wheels

Durability of Nylon bearing wheel in random profile loading: undamaged over 600 kg Gearing heat resistance (POM): approx +90 Degree C

Frost resistance: over -30 Degree C

All metal parts are non-corrodible: only aluminum and stainless steel

Installation on concrete and brick surface is by 8 mm stainless steel bolts and brass anchor



Sound insulation for Finzone04 balcony glazing

For 100 Hz Reduction 6.7 dB

For 2400 Hz Reduction 13.5 dB

Measured according to international standards ISO 140-5 & ISO 717-1



Wind pressure for Finzone04 balcony glazing

Finzone04 balcony glazing  can support the wind speed according to the panel height and glass thickness

wind speed    Beaufort scale description                          Equivalent pressure                                Maxiumum height for 8mm balcony glazing
121km/h         Hurricane               700Pa    1.85m
112km/h      Violent storm               600Pa    2m
102km/h          Storm               500Pa    2.2m
79km/h      Severe gale               300Pa    2.5m



Function for Finzone04 balcony glazing's shapes







Color choice for Finzone04 balcony glazing

Hot sell aluminium window



Customers coming for Finzone04 balcony glazing

Hot sell aluminium window



 Exhibitions for Finzone04 balcony glazing



Users' projects for Finzone04 balcony glazing

Hot sell aluminium window



Effective Factory for Finzone04 balcony glazing



Our Package for Finzone04 balcony glazing



Certificates for Finzone04 balcony glazing

Hot sell aluminium window
