Special hotsell laminated glazing balcony
You Need a Service!
There are no frames between glass panels and each glass panel can freely slide to the left or right to open for ventilation or cleaning purpose with Finzone05 frameless window. Total or partial balcony enclosure or opening is achieved.The characteristics of Finzone05 frameless window makes the cleaning of the windows to be very easy,you can clean the reverse and facade with every glass panel.The balcony installed with Finzone05 frameless window looks like a transparent package balcony,which not only doesn't damage the appearance and style of the building,but also contributes a lot to the integral beauty of the balcony.
System features for laminated glazing balcony

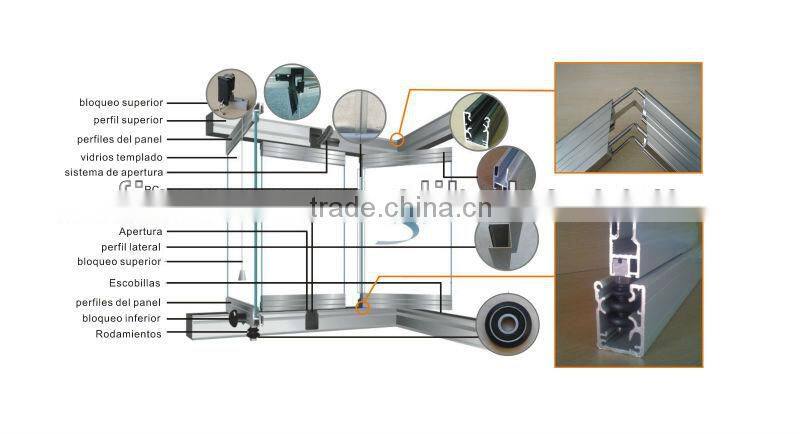

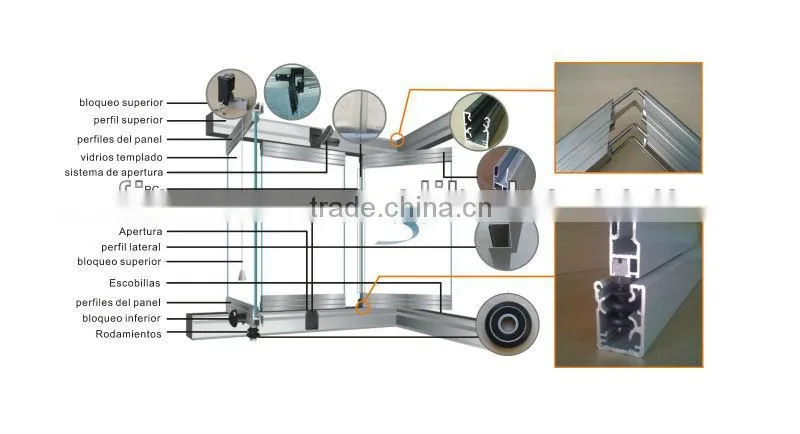

Structure drawing for laminated glazing balcony
Mechanical properties for laminated glazing balcony
The guide profiles are made in compliance with 6063T5 as special profiles
Tensile strength of the frame from the guide profile: 860 kg
Guide profile deflection 80 kg / 3.8 m:
Perpendicular: 3.5 cm
Horizontal: 7.5 cm
No permanent changes in shape
Each glass element is supported by four 8 mm hinge axles, featuring a total of 10 horizontal wheels
Durability of Nylon bearing wheel in random profile loading: undamaged over 600 kg Gearing heat resistance (POM): approx +90 Degree C
Frost resistance: over -30 Degree C
All metal parts are non-corrodible: only aluminum and stainless steel
Installation on concrete and brick surface is by 8 mm stainless steel bolts and brass anchor.
Sound insulation for laminated glazing balcony
For 100 Hz Reduction 6.7 dB
For 2400 Hz Reduction 13.5 dB
Measured according to international standards ISO 140-5 & ISO 717-1
Wind pressure for laminated glazing balcony
Finzone05 frameless window can support the wind speed according to the panel height and glass thickness
| wind speed | Beaufort scale description | Equivalent pressure | Maxiumum height for 8mm frameless window |
| 121km/h | Hurricane | 700Pa | 1.85m |
| 112km/h | Violent storm | 600Pa | 2m |
| 102km/h | Storm | 500Pa | 2.2m |
| 79km/h | Severe gale | 300Pa | 2.5m |
Function for laminated glazing balcony's shapes
Color choice for laminated glazing balcony
Customers coming for laminated glazing balcony
Exhibitions for laminated glazing balcony

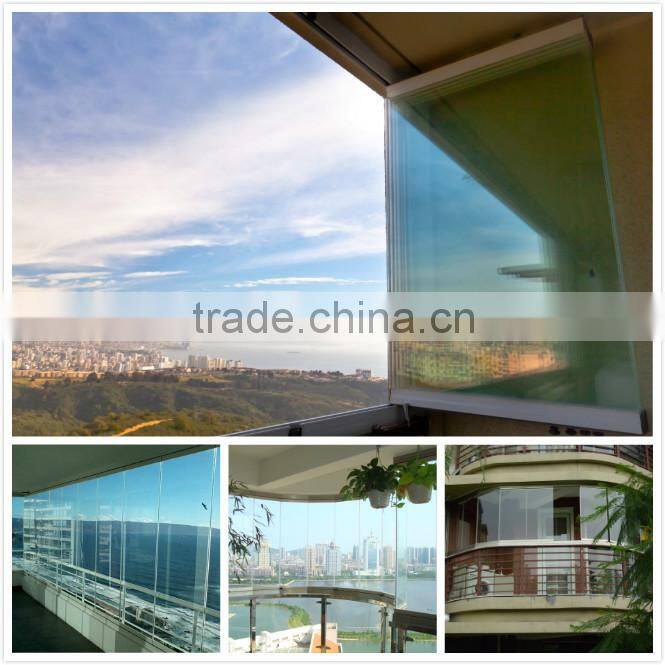

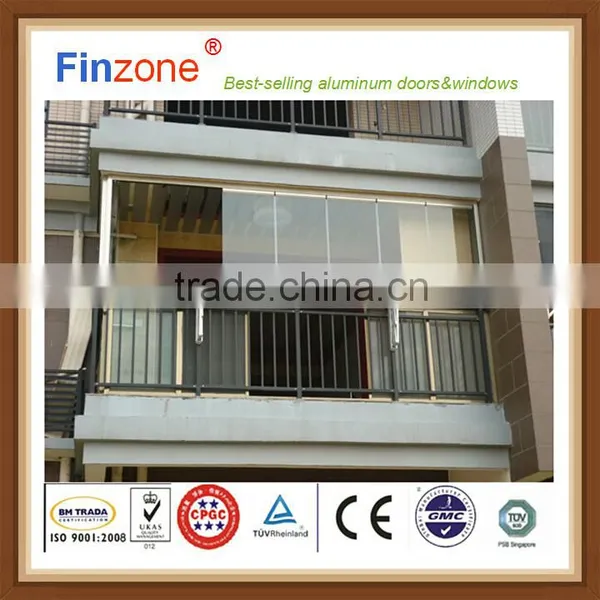

Users' projects for laminated glazing balcony
Effective Factory for laminated glazing balcony
Our Package for laminated glazing balcony
Certificates for laminated glazing balcony
laminated glazing balcony
