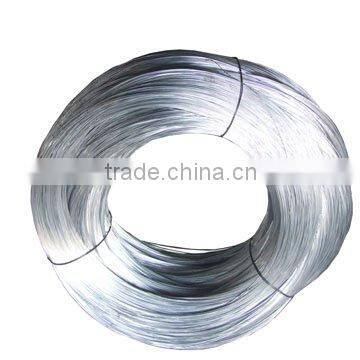

Hot Dip Galvanized Steel Wire With 7/16" Diameter

Name: Hot Dip Galvanized Steel Wire With 7/16" Diameter
Brand: HNTDDL
SKU: 132283413
Availability: InStock

US$ 1,000 - 1,400 MOQ: 1 Ton

Key Specifications

Steel Grade:

steel

Standard:

ASTM, BS, DIN, GB, JIS

Wire Gauge:

1.3-5mm

Henan Tong-Da Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO SHANGHAI NINGBO HUANGPU

Delivery Detail:

Delivery time depends on order quantity.

Steel Grade steel

Standard ASTM, BS, DIN, GB, JIS

Wire Gauge 1.3-5mm

Place of Origin Henan, China

Type Galvanized

Application Construction

Alloy Or Not Non-alloy

Special Use Cold Heading Steel

Model Number GSW

Brand Name HNTDDL

Specifications

Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable.

Galvanized Steel Wire

Standard: ASTM B498, BS 443, GB/T 3428, DIN 48200, JIS C 3110, etc.

GB/T 3428

Intensity level	Wire diameter	Min. tensile strength	Min. stress with 1% extension	Min. extension percentage when L=250	Min. No. of 3600 twist


	mm	Mpa	Mpa	%
General	1.24~2.25	1340	1170	3.0	16
	2.25~2.75	1310	1140	3.0	16
	2.75~3.00	1310	1140	3.5	16
	3.00~3.50	1290	1100	3.5	14
	3.50~4.25	1290	1100	4.0	12
	4.25~4.75	1290	1100	4.0	12
	4.75~5.50	1290	1100	4.0	12
High	1.24~2.25	1450	1310	2.5	16
	2.25~2.75	1410	1280	2.5	16
	2.75~3.00	1410	1280	3.0	16
	3.00~3.50	1410	1240	3.0	14
	3.50~4.25	1380	1170	3.0	12
	4.25~4.75	1380	1170	3.0	12
	4.75~5.50	1380	1170	3.0	12
Very high	1.24~2.25	1620	1450	2.0	14
	2.25~2.75	1590	1410	2.0	14
	2.75~3.00	1590	1410	2.5	12
	3.00~3.50	1550	1380	2.5	12
	3.50~4.25	1520	1340	2.5	10
	4.25~4.75	1520	1340	2.5	10
	4.75~5.50	1520	1270	2.5	10
