Specifications
HID 75W BALLAST1 Direct from factory
2 Quick and safety ignition
3 Sincerely cooperation
4 Good Quality Good Price

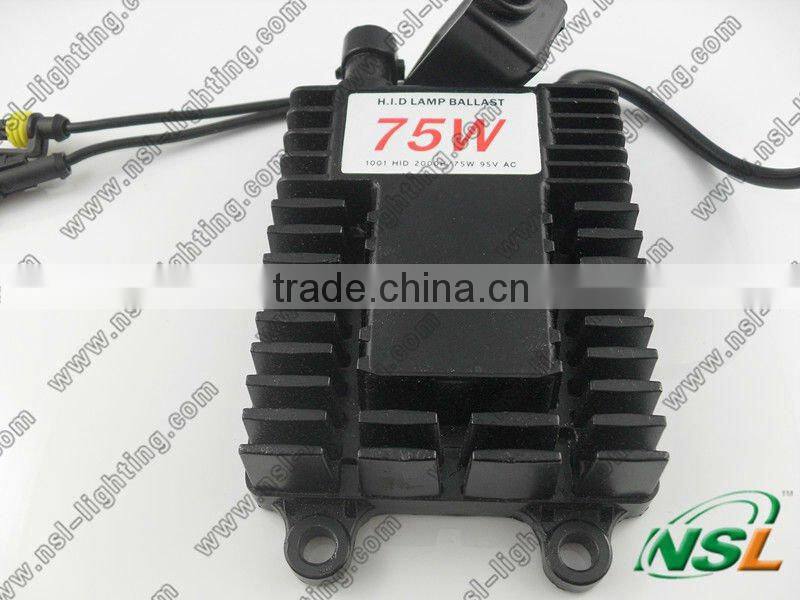

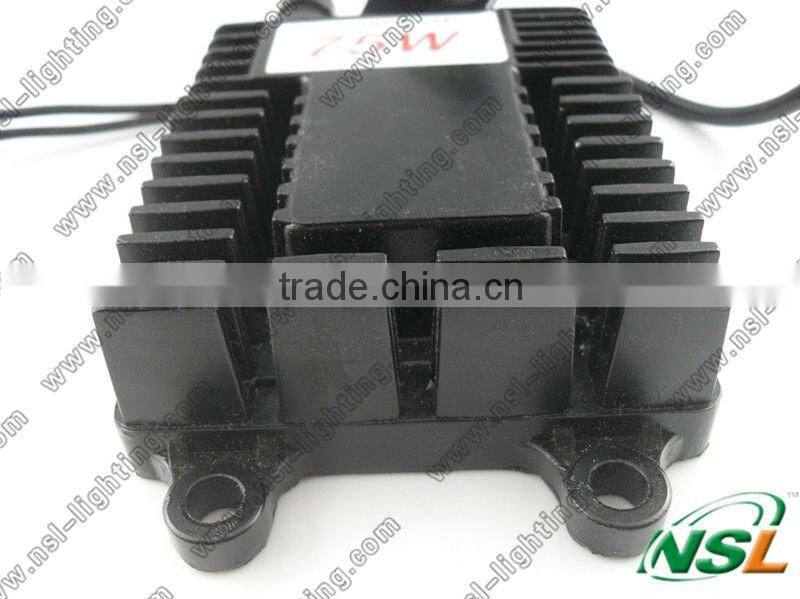

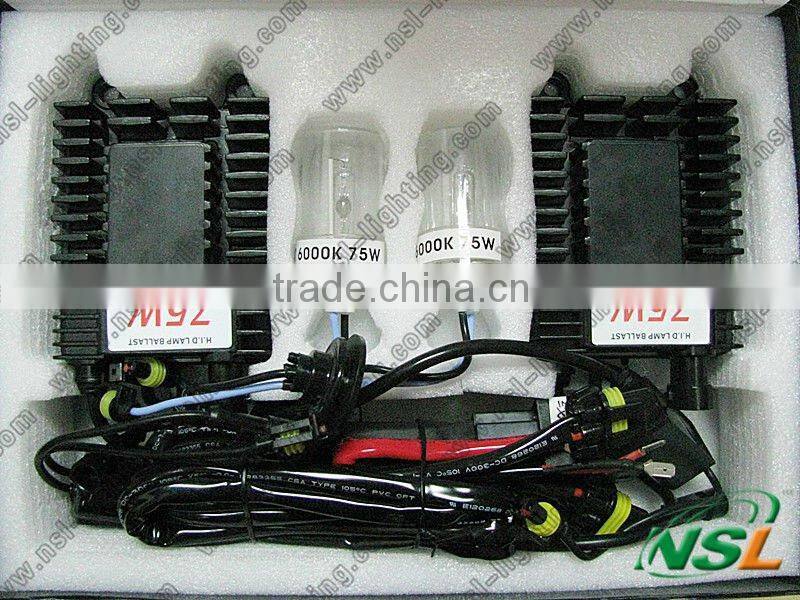

Super Power 75W 100W Ballast HID
Feature
1.High quality, high efficiency,low power consumption and favorable price.
2.waterproof, shockproof,high temperature resistance, long lasting(quartz).
3.With the certification of ISO9001 and CE.
4.Rated power:75W , Output voltage: AC 85V
5.Normal input current:3.2A
6.Output Short Circuit Protection :Automatically stop working within 2s which open circutied.
7.Output Open Circuit Protection:start-up continuously,power supply works constantly.
8.Quick Start:60% luminous flux within 1s,80% within 4s,100% within 6s.
9.Operation temperature:-40 degree~ +105 degree
10.Output power:reach 70% in cold starting in 2s,reach 80% in 4s,reach rating output power in 8s.
11.Momentary Maximum Ignition Voltage:23KV
12.Output voltage frequency:250HZ
13.Lifetime:≥3000hrs
14.Color available: Black
Specification
| 12V 75W Ballast | ||
| Applicance performance | Standard | Product actual text |
| Lumen | 90Lm per 1Watt | |
| Bulb Open circuit protection test | <1.5 second stop working | √ |
| Power short circuit protection test | <High voltage cable within2 seconds stop working | √ |
| Input power reversed connect protection test | after reversed connect keep normal work,no damage | √ |
| Over Voltage Protection test | Can not exceed MAX32V | MAX32V |
| Low Voltage Protection(Power off) | ≤9V | 9V |
| Cold Start Current | Voltage13.2V,≤9A | 13.2V=9A |
| Hot Start Current | Voltage13.2V,≤9A | 5A |
| Stable Current | Voltage13.2V,≤8A | 3.5A |
| Stable Output Power | Voltage20-30V,Voltage fluctuating:±3W | √ |
| Stable Bulb Power | 75W±5W | 77W |
| Inside consumed Power | ≤15W | 12W |
| Flash Text | Each 2 seconds On and Off,work under normal situation | √ |
| High Voltage isolated protection | Resistance≥1MΩ | √ |
| Lowest Start Power | ≥20.5V | 20V |
| Bulb Working frequency | 300Hz | 300Hz |
| Ballast working Temperature | after light 20min,Circumstance ≤ 25°C | 30°C |
| Ballast Efficiency | ≥85% | 87% |
| Input touch shake | Automatically reset within 1.2 seconds | Reaction time:0.1 sec |
| Working Voltage Range | 20-32V DC | √ |
| Electric Wave Radiation | Fit National Standard | √ |
| Max Current | ≤15A | MAX 0.01sec |
| Bulb working voltage | 95~150V AC Square wave | |
| Start Max Voltage | 26KV | |
| When install ballast please add our special relay | ||
| Length | 151mm | |
| Width | 97mm | |
| Height | 36mm | |
Protection
Output Open/Short Protection: Shutdown In 0.5Sec
End Of Life Lamp Voltage: >180V AC RMS Square Wave
Function for owe and over voltage protection
Function for reversed input protection
Water Proof
Thermal protection
