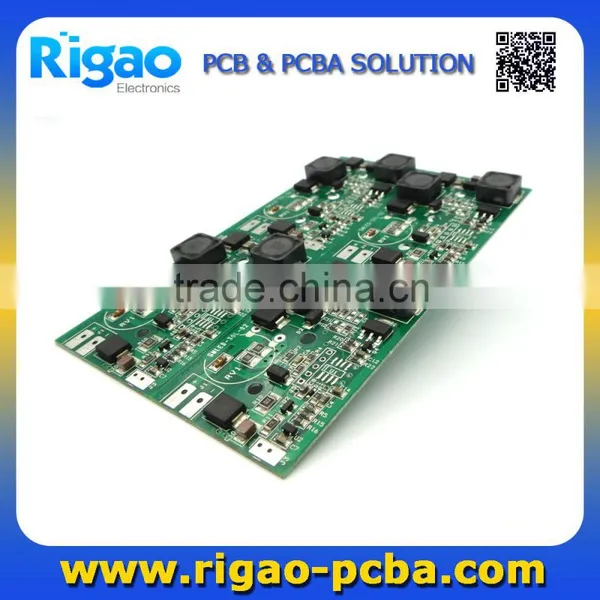

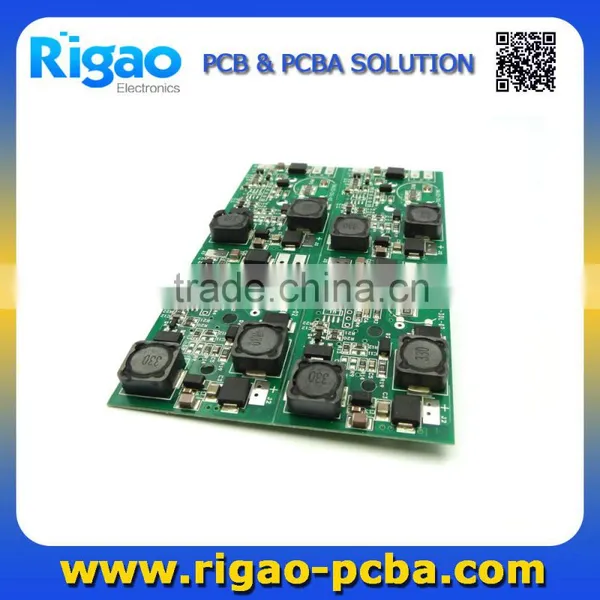

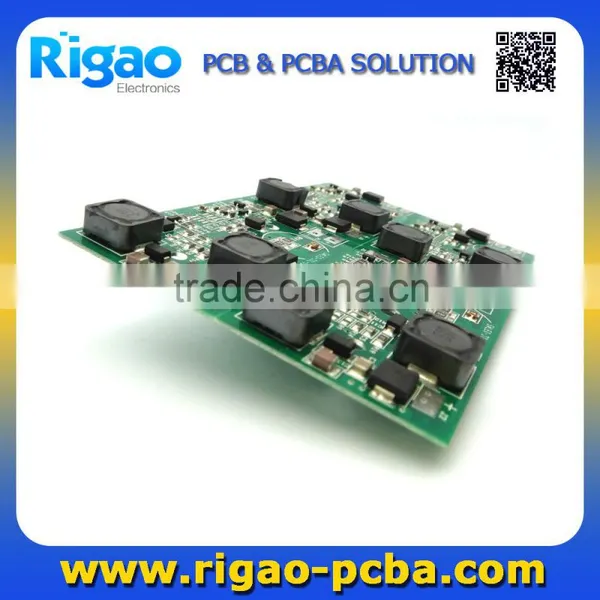

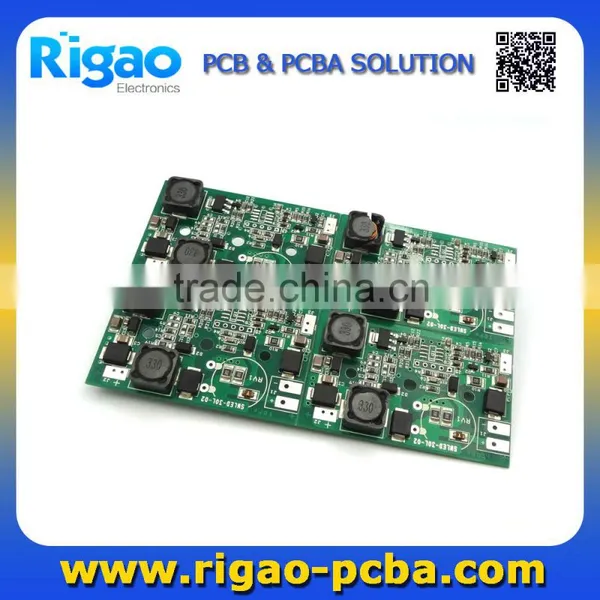

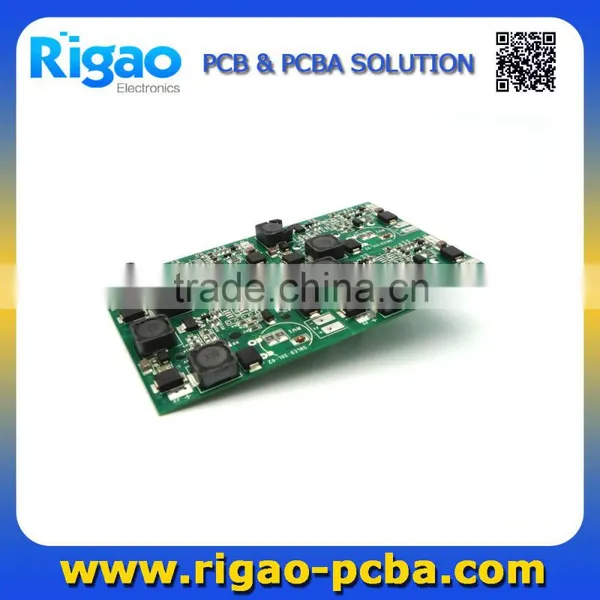

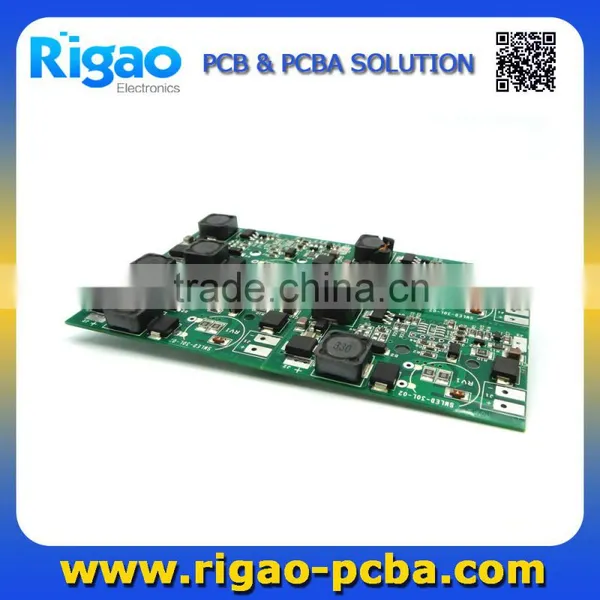

Panel circuit assembly with conductors
PCB, SMT & PTH, PCB Assembly service
Our products are made based on your design and requirement. The PCBA product we can
handle is from the Bare PC board, Full component procurement, BGA & Surface Mount PCBA
Assembly, Mixed Technology & Through-Hole PCB Assembly, Visual inspection / Functional
test, product assembly. All boards are electronically tested and shiped with a full set of QA
report document. Advantage speedy delivery, High reliable, Advanced equipment,Cheap price. UL, RoHS, ISO-9000, TS16949.
- Contract Manufacturing
- Mixed-technology (High speed SMT & Through hole assembly)
- PCB Design & Assembly and copy service
- Prototyping
- Components purchasing
- Metal box,Coil,Cable and Wire Assemblies
- Plastics and Molds
Application about circuit assembly
Products are applied to a wide range of High-tech industries such as: LED,
telecommunication, computer application, lighting, game machine, industrial
control, power,automobile and high-end consumer electronics, ect.
By unremitting work and effort to the marketing, products exports to American,
Canada, Europe counties,Africa and other Asia-pacific countries.
Advantage about Panel circuit assembly with conductors
1. PCB from factory directly.
2. PCB which have the comprehensive quality control system.
3. PCB with good price.
4. PCB with quick turn delivery time from 48hours.
5. PCB with certification (ISO/UL/RoHS/SGS).
6. PCB with many years experience in exporting service.
7. PCB is no MOQ/MOV.
8. PCB with high quality. strict test through AOI (Automated Optical Inspection),
QA/QC, Flying Proble Test, E-test fixture.
Capacity of circuit assembly
| 1 | Layer | 1-22 layer |
| 2 | Material |
FR4, CEM1, Aluminium Base, Cooper Base, High frequency material |
|
Thick copper foil,94-V0 (HB), PI Material, Roger,High TG:SL S1000-2,ITEQ:IT180. | ||
| 3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 610mm*1200mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment |
HASL,HASL lead free,OSP,Immersion tin, Immersion Gold |
|
Immersion Silver/Gold Finger ,Gold Plating, Selective OSP Immersion Gold | ||
| 9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing,Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076,NTPH:±0.05 |
| 14 | Profiling Punching | Routing,V-CUT,Beveling |
| 15 | Assembly Service |
Providing OEM service to all sorts of printed circuit board assembly |
Packing
Shipping
|
2-4 work days |
|
2-4 work days |
|
3-5 work days |
|
3-5 work days |
|
5-8 work days |
|
8-15 work days |
Q&A:
What products Rigao can supply?
Rigao supplies PCB,PCBA,FPC and assembly.
What kind of material Rigao can produce with?
Rigao offers CEM1,CEM3,FR4,Aluminum substrate,etc.
What kind of surface finish Rigao can make?
Rigao can make HASL lead/lead free,gold finishing.
Our Mission:
Credit on Customers/Focus on Quality/Rely on Management/Keen on Improvement
Requested information for circuit Assembly:
1. Gerber file & BOM list if possible
2. PCBA Samples
3. Testing procedure & Testing fixtures
4. Order Quantity
If you are interested in circuit assembly , pls feel free to contact me. Thank you.
Websites: http://rigao-pcba.en.china.cn
Tel: 86-755-29196695 Fax: 86-755-29196655
