Welcome to Rigao Electronics!

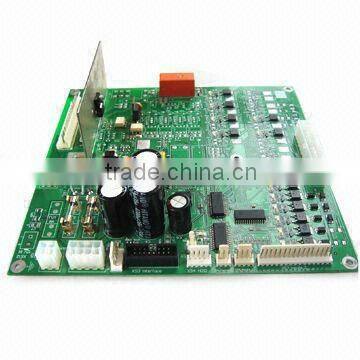

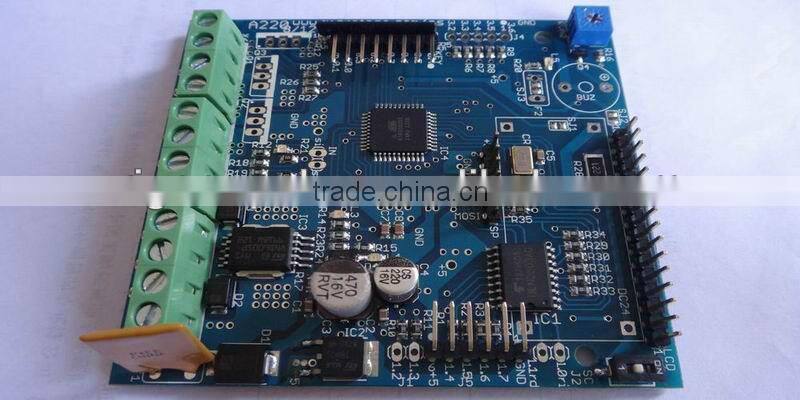

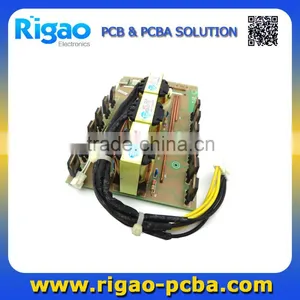

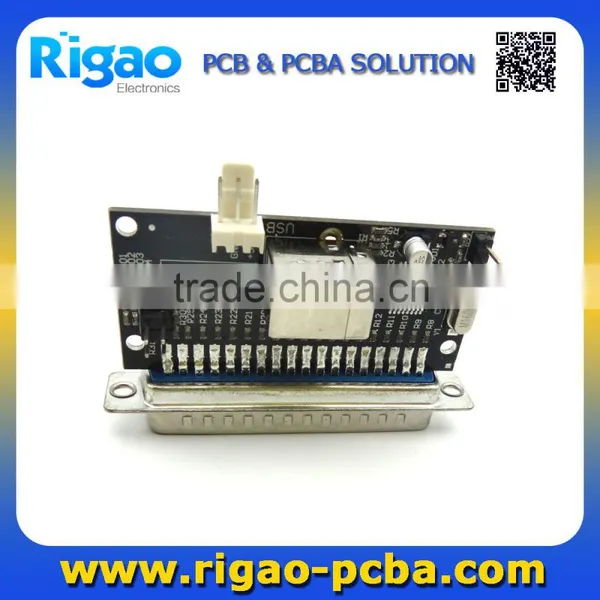

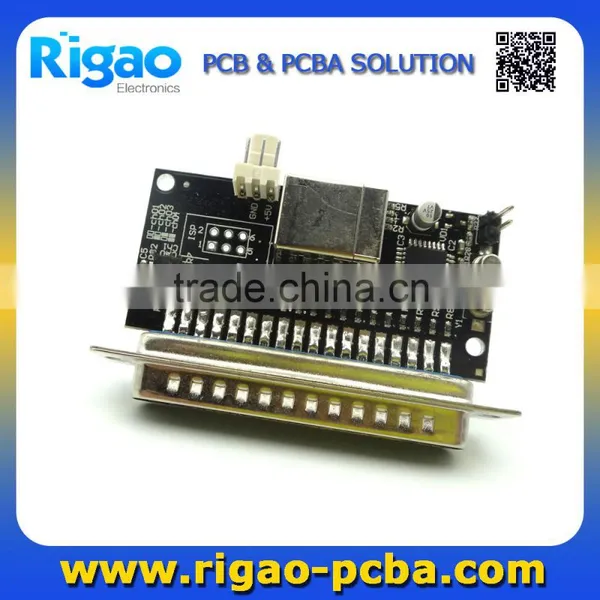

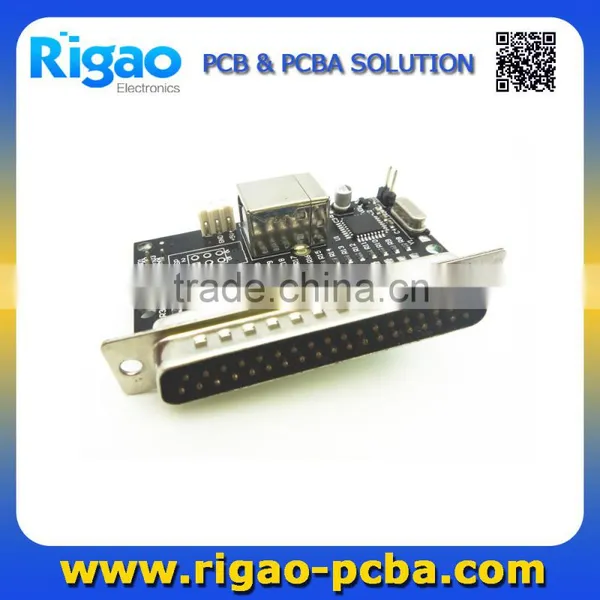

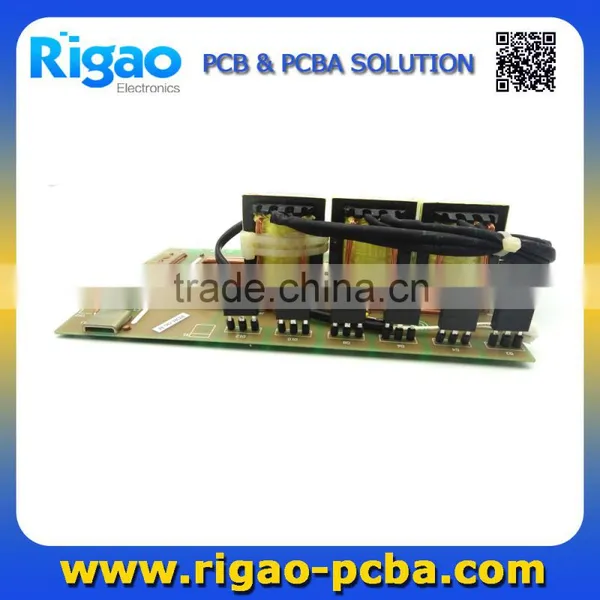

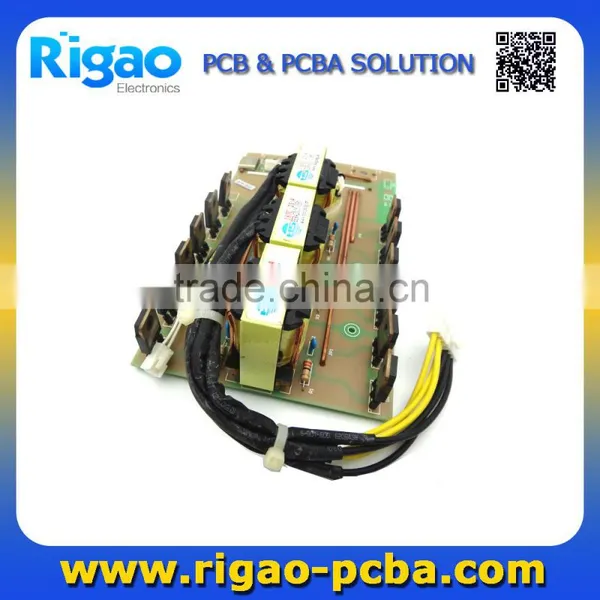

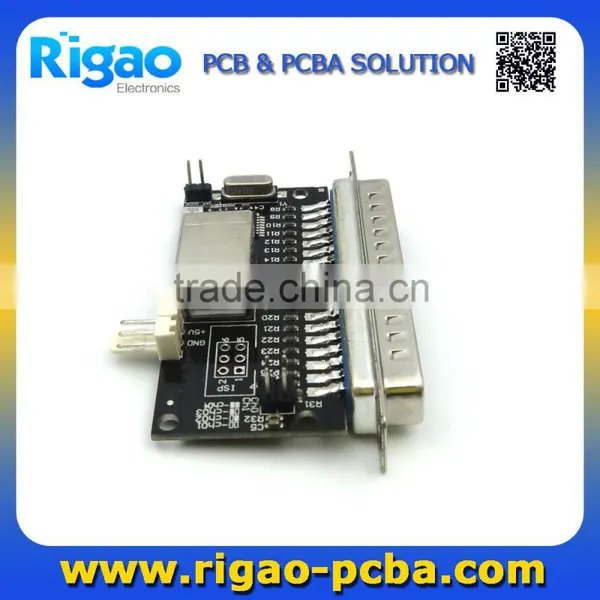

Amplifier controller board pcb assembly
One-stop EMS Service-- Your Reliable PCB and PCB Assembly Supplier
1. PCB Assembly Specification
Quantity |
Prototype, small-medium and high volume |
Type of Assembly |
SMT and Through hole |
Solder Type |
Water Soluble Solder Paste, Lead and Lead Free |
File Formats |
Bill of Materials |
Gerber files |
|
Bare Board Size |
Smallest:0.25*0.25 Inches |
Largest: 20*20 Inches |
|
Components |
Passives Down to 0201 Size |
BGA and VFBGA |
|
Leadless Chip Carriers/ CSP |
|
BGA Repair and Reball |
|
Part Removal and Replacement |
|
Component Packaging |
Cut Tape,Tube,Reels,Loose Parts |
Turn Time |
Same Day Service to 15 day service |
Testing |
X-RAY Inspection & AOI Test |
2. Process Capability
Item |
Technical Index |
|
Layer |
1-22 layers(Rigid Board) |
|
1-10 layers(Flexible Board) | ||
Multi-layer | ||
Base Material |
FR4, PI, PET |
|
Cooper Thickness |
Rigid PCB |
0.5Oz to12Qz |
Flexible PCB |
18μm-105μm |
|
Min. Hole Size |
0.2mm |
|
Min. Line Width |
Rigid PCB |
0.1mm |
Flexible PCB |
3mil |
|
Min. Line Spacing |
Rigid PCB |
0.1mm |
Flexible PCB |
3mil |
|
Surface Treatment |
OSP/HASL Lead Free/ ENIG/Immersion Gold/Immersion Tin |
|
External Treatment |
Precise V-cut, externally pressed or milled, laser appearance |
|
External Tolerance |
±0.05mm |
|
Solder Mask Color |
Blue/White/Green/Red/Yellow |
|
Welding Resistance Film |
Covered in layers with PI and PET film |
|
Sensitive welding resistant oil/ welding resistant dry film/silk printing oil/separable welding resistant oil | ||
Type of oil |
Applicable to silk printing in multi-colors |
|

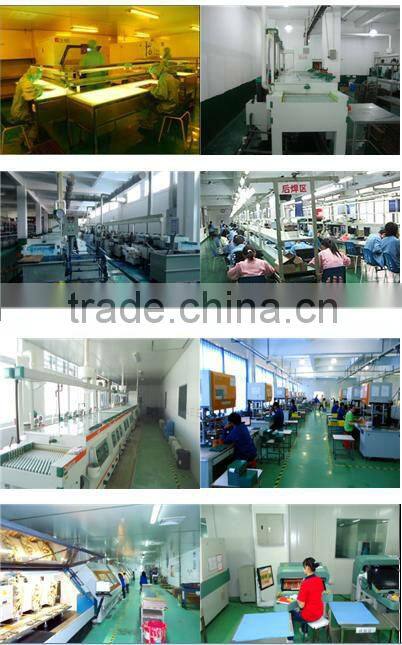

3. Factory Tour
Our Principle is simple, “Act by heart, Make the best.”
Our strength is distinct, “Years of experiences in PCB and PCBA field”
Our Goal is achievable, “ To be the most reliable supplier of PCB and PCBA.”
Our orientation is clear, “Focus on prototypes and low to medium volume business ”
