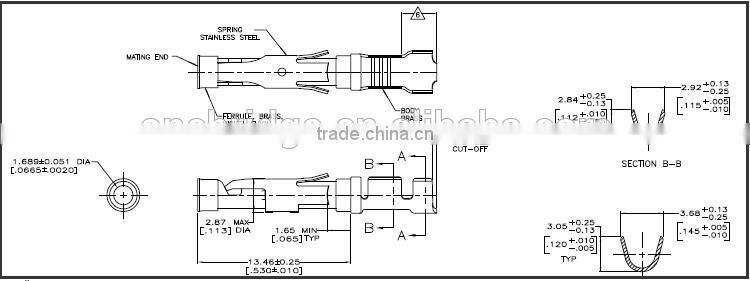

Product Name:66101-1 Stamping car electrical wire end terminal connector
| Product Description |
|
Contact Features |
Contact Type | Socket |
| Contact Mating Area Plating |
Gold | |
| Contact Size |
16 | |
| Contact Classification |
Signal | |
| Contact Base Material |
Brass | |
| Contact Mating Area Plating Thickness (µin) |
30 | |
| Termination Features | Termination Method to wire | Crimp |
| Termination End Plating Material |
Gold flash | |
Dimensions |
Wire Size (mm²) | 18-16 AWG |
| Wire Insulation Diameter | 2.03– 2.54 mm |
|
| Packing | Packaging Method | Carton |
| Packaging Quantity | 10000 |
| Related Products |
|
(1)We are a manufacturer specialized in Terminal,Connector,Shrapnel,Stamping parts,Mould,etc. |
|
(2)Terminal Material:Usually use Phosphor bronze,Brass,Stainless Steel,etc. |
|
(3)Connector Material:Usually use PA66+15%GF,PA6T,LCP,Nylon,etc. |
|
(4)Terminal Types:We have various kinds of terminal for your choice,such as FCI54001800,TE10052 TE100622X,TE100722XX,TE100922XX,TE108522XX. |
|
(5)And many parts,we can custom it according to your drawing. |
Our Products Moulds |
1)Below is some moulds of our products for your reference
2)And our mould material is SKD11,SKH9,Tungsten steel,etc.Mould life is 300,000- 5000,000 shots.
| Product Application-where need our products? |
| Contact Us |
| Customer Comments |
| Factory Information |
| Packing and Shipping |
1.Plastic bag+Standard Carton Packing
2.Tape and Reel+Standard Carton Packing
3.Blister box Packing+Standard Carton Packing
4.Packing can be according to your requirement
Shipping by DHL,FedEx,TNT,UPS,By air,By sea,etc.
1.Lead time for wire end terminal connector is 6-10 days.
2.Or according to your quantity.
3.We will send out the products within 24 hours when they finish wire end terminal connector production.
