Product Name:927775-1 3.5mm wiring progressive stamped terminal

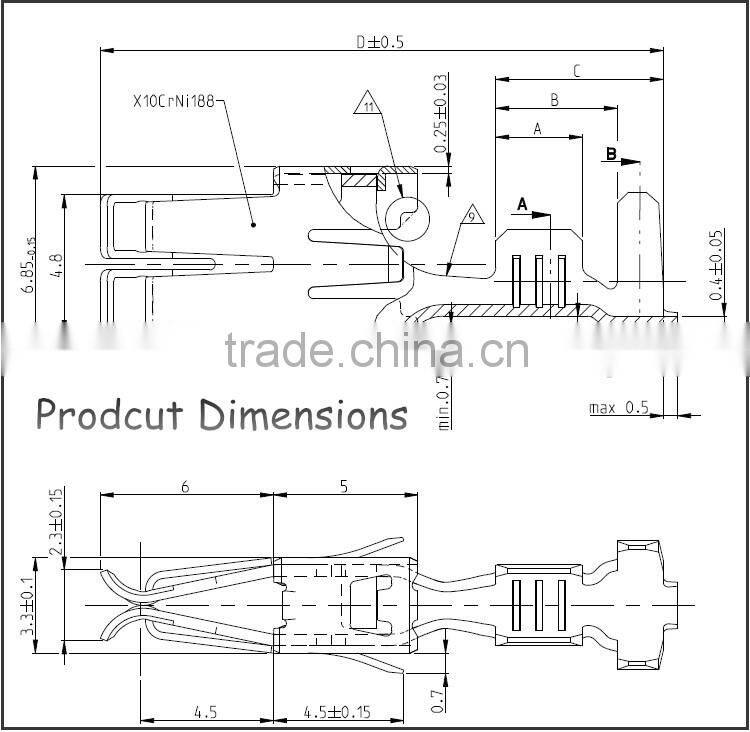

| Product Dimensions |
|
Contact Features |
Terminal Style | Receptacle/Socket |
| Mating Tab Width (mm) | 4.8, 5.8, 6.3 | |
| Mating Tab Thickness (mm) | .8 | |
| Interface Plating | Tin (Sn) | |
| Typical Current Rating (A) | 10 | |
| Contact Termination Area Plating Material | Tin (Sn) | |
| Termination Features | Termination Method | Crimp |
| Crimp Type | F-Crimp | |
Dimensions |
Wire Size (mm²) | .5 – 1 |
| Wire Insulation Diameter | 1.3 – 2.1 mm | |
| Packing | Packaging Method | Reel |
| Packaging Quantity | 2300 |
| Related Products |
|
(1)We are a manufacturer specialized in Terminal,Connector,Shrapnel,Stamping parts,Mould,etc. |
|
(2)Terminal Material:Usually use Phosphor bronze,Brass,Stainless Steel,etc. |
|
(3)Connector Material:Usually use PA66+15%GF,PA6T,LCP,Nylon,etc. |
|
(4)Terminal Types:We have various kinds of terminal for your choice,such as FCI54001800,TE10052 TE100622X,TE100722XX,TE100922XX,TE108522XX. |
|
(5)And many parts,we can custom it according to your drawing. |

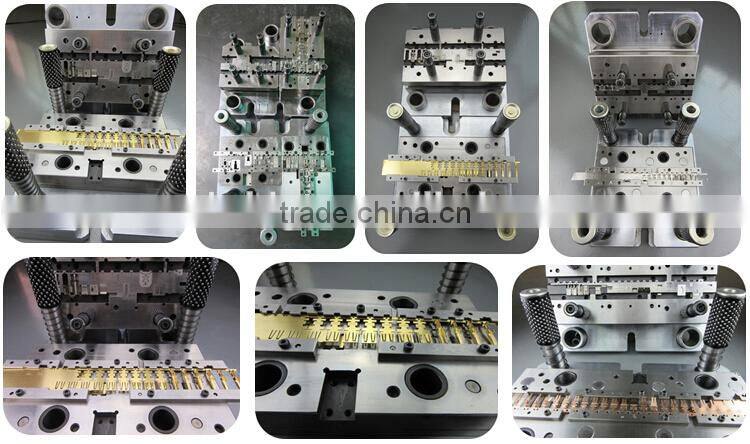

Our Products Moulds |
1)Below is some moulds of our products for your reference
2)And our mould material is SKD11,SKH9,Tungsten steel,etc.Mould life is 300,000- 5000,000 shots.
| Product Application-where need our products? |
| Contact Us |
| Customer Comments |

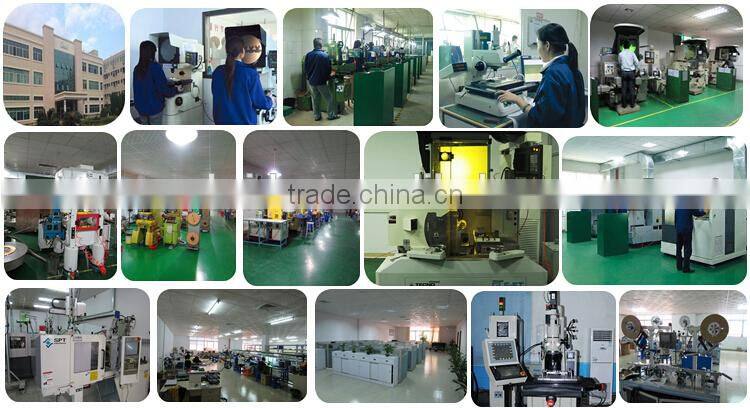

| Factory Information |

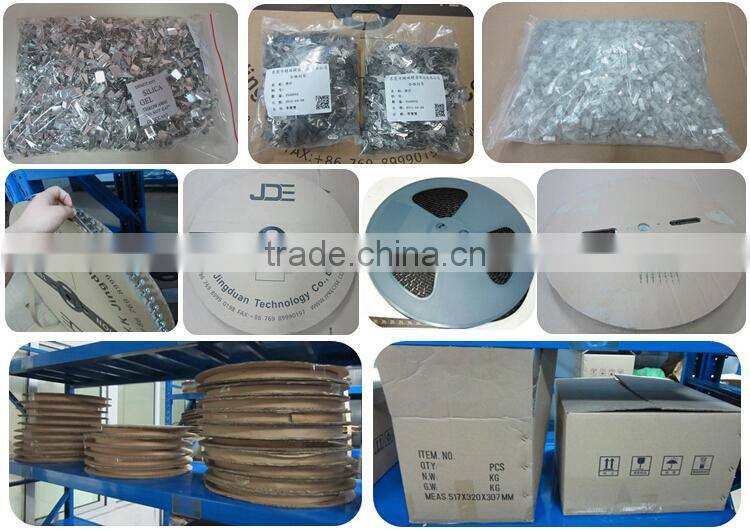

| Packing and Shipping |
1.Plastic bag+Standard Carton Packing
2.Tape and Reel+Standard Carton Packing
3.Blister box Packing+Standard Carton Packing
4.Packing can be according to your requirement
Shipping by DHL,FedEx,TNT,UPS,By air,By sea,etc.
1.Lead time for progressive stamped terminal is 6-10 days.
2.Or according to your quantity.
3.We will send out the products within 24 hours when they finish progressive stamped terminal production.
