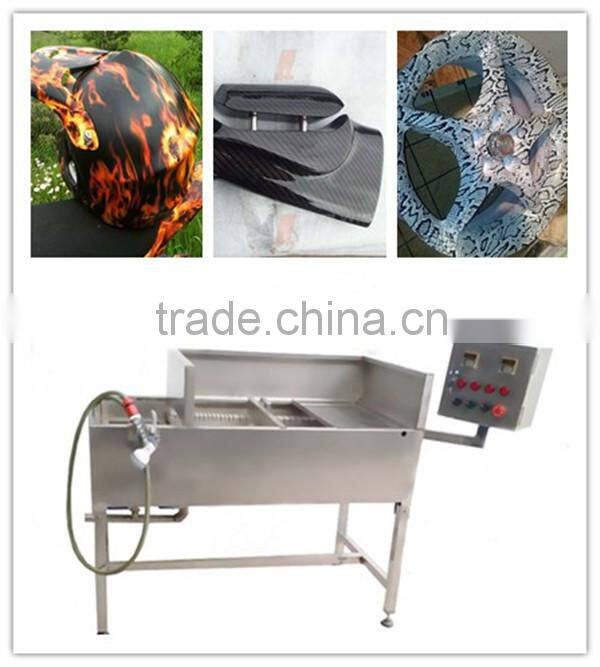

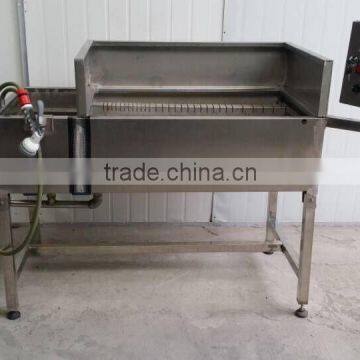

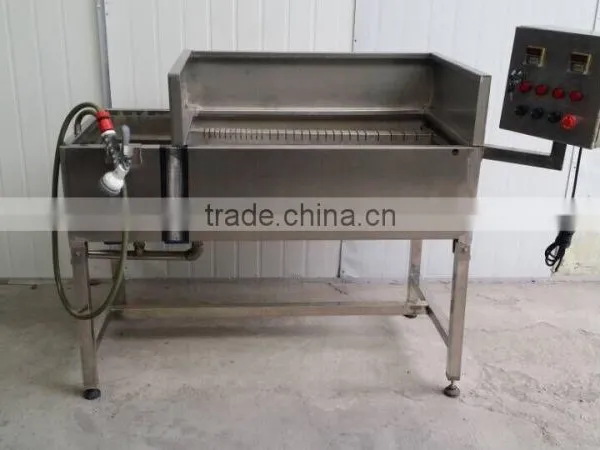

water transfer printing machine with washing gun NO. LYH-WTPM062-1 liquid image manufacturer
Brand: Liquid Image
Products name: water transfer printing machine, hydrographic printing tank, hydro dipping tank, dipping kit, hydrographic equipment
Item No.: LYH-WTPM062-1
Materail: stainless steel
Machine state: new
There is 40 sets in stock. So we can send out this equipment in 1-5 working days.
Machine Feature:
This water transfer printing machine conbines all functions of hydrographic dipping tank and washing tank together. Dipping products and washing them with only one machine, will save a lot of your cost.
Product Specification
Application: water transfer printing, hydrographic printing

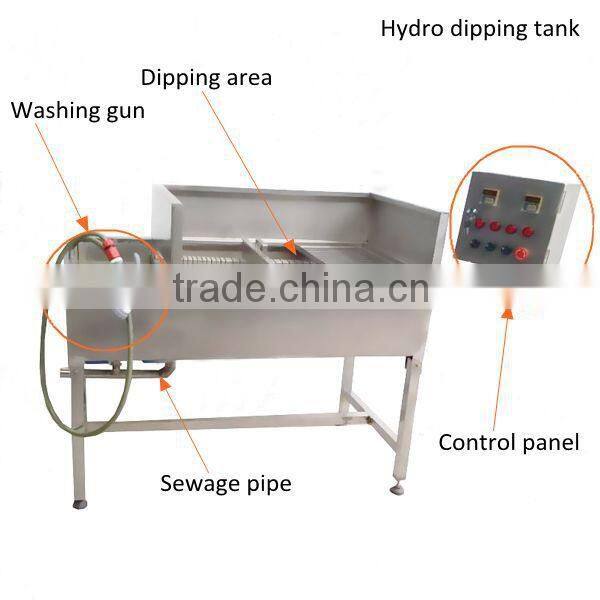

Function Introduction:
1. Heating elements: heat water fast to 25-30 degree C ( the most suitable water temperature for hydro dipping)
2. Water re-circulation system: recircle water, flow away remains after dipping, no need to discharge water every time.
3. Control panel: control power, heat elements, water re-circulation system, and pump. Press buttons, machine will works automatically.
4. Washing gun: wash away sticky remains on the products' surface. Washing water is from the tank, reducing water waste.

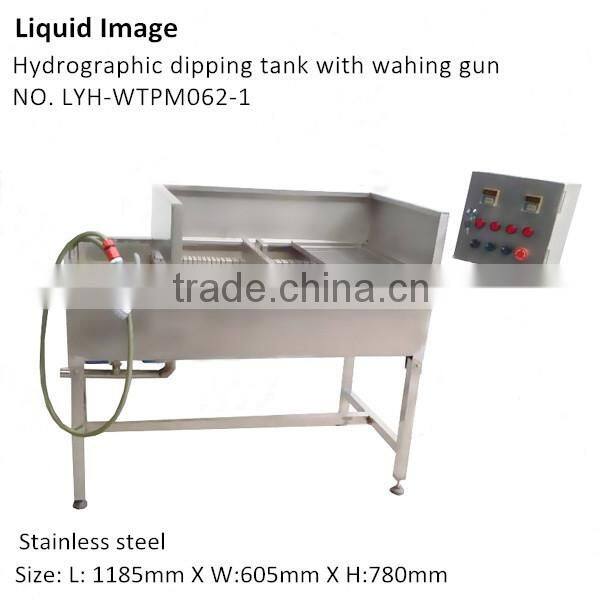

Size |
Outside Size |
L: 1185mm X W:605mm X H:780mm |
Dipping Area |
L: 950mm X W: 540mm X H: 300mm |
|
Material |
Stainless Steel |
T=2.5mm+-0.2mm |
Main Components |
Heating Elements |
220V, Single Phase, 50 HZ, 400W |
Water Re-circulation System |
Pump Power: 220V, Single Phase, 50 HZ, 30W |
|
Control Panel |
|
|
Water Capacity |
0.16 Ton |
|
Package |
Polywood case |
|
Net WT |
50 KGS |
|
Gross WT |
80 KGS |
|
Package Size |
L: 1250mm X W: 650mm X H: 350mm |
The advantages of our tank:
1. The stainless steel of the tank is 2.5mm, so it wouldn't be out of shape after you use it some days later.
2. Good welding to make sure machine won’t leak.
3. Stainless steel pump to keep a long lifespan.
4. Beautiful control panel with black color.
Our Service
1. Technical support of water transfer printing technology
2. Detailed introduction of products
3. 24 hours reply of your questions
4. Offer relative products, like water transfer printing films, speedshapes, activator, spray gun, blank hydrographic film paper, etc.
5. Customs documents for clearance
Packaging
First, packed as small size as possible to save your shipping cost.
Second, wrapped with protective films to protect machine from scratching
Last, packed with polywood case
Shipping:
Order release time: 1-5 working days after your payment.
Shipping time:
DHL, UPS, FedEx, EMS: 5-10 days to your address.
FOB: 4-6 days by truck to your forwarder.
CIF, DDP and DDU: 1-2 month to different countries by sea
Payment:
Paypal, Western Union, T/T are available.
1. Please send us an inquiry with products' item no., delivery address and sea port;
or click " Chat now" to chat with me online.
2. We send Proforma Invoice to you with products price and shipping cost, and you confirm the order.
3. You make the payment.
4. We prepare your products, and send them out ASAP.
5. You receive the order and send feeback to us.
Water Transfer Printing Operation Process
issued by Liquid Image
1. Pre-treat article
2. Printing process
3. Washing hydrographic products
4. Drying
5. Spray top coat and dry again.
Liquid Image is a manufacturer of water transfer printing equipments and water transfer printing films. We have been doing water transfer printing technology over 4 years. Our customers are from all over the world. And we have agents in Australia, Colombia, South Africa, U.A.E. etc.
Main products:
1. water transfer printing equipments:
dipping tank, washing machine, drying machine, spray booth.
There are mini, small, middle and big size machines. You can choose manual or automatic.
2. Water transfer printing films:
Material: PVA water soluble film
Pattern: flame, skull, carbon fiber, camo, decoration, wood, animal etc. 90% patterns are our royalty designs. New patterns come out every week. You also can customize your own design.
3. Plastic Speedshape, activator and spray gun
