Hydrographic Washing Machine for Water Transfer Printing Process NO. LYH-WTPM012-1

Hydrographic Washing Machine for Water Transfer Printing Process NO. LYH-WTPM012-1 thumbnail-1

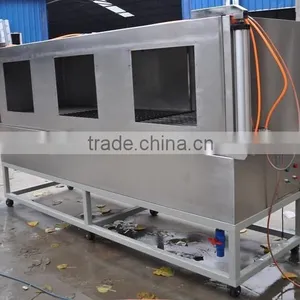

Hydrographic Washing Machine for Water Transfer Printing Process NO. LYH-WTPM012-1 thumbnail-2
Hydrographic Washing Machine for Water Transfer Printing Process NO. LYH-WTPM012-1 photo-1

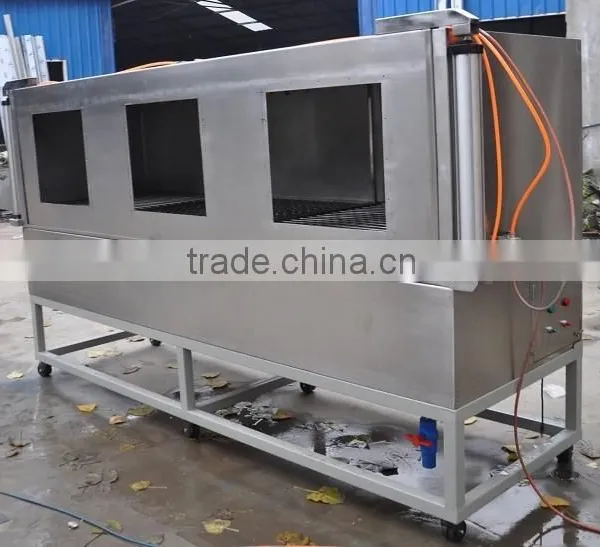

Hydrographic Washing Machine for Water Transfer Printing Process NO. LYH-WTPM012-1 photo-2
US$ 1,000 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Method:
Water Transfer Printing
Usage:
Other, water transfer printing
Place of Origin:
Sichuan, China
Contact Supplier Request Quote Chat Now
Liquid Image Machinery, LLC (Chengdu)
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Method Water Transfer Printing
Usage Other, water transfer printing
Place of Origin Sichuan, China
Brand Name Liquid Image
Model Number LYH-WTPM012-1

Stainless steel water transfer printing machine NO. LYH-WTPM012-1 liquid image manufacturer

Brand: Liquid Image



Product Description

Products name: water transfer printing machine, hydrographic washing machine, cleaning equipment

Item No.: LYH-WTPM089

Materail: stainless steel

Machine state: new

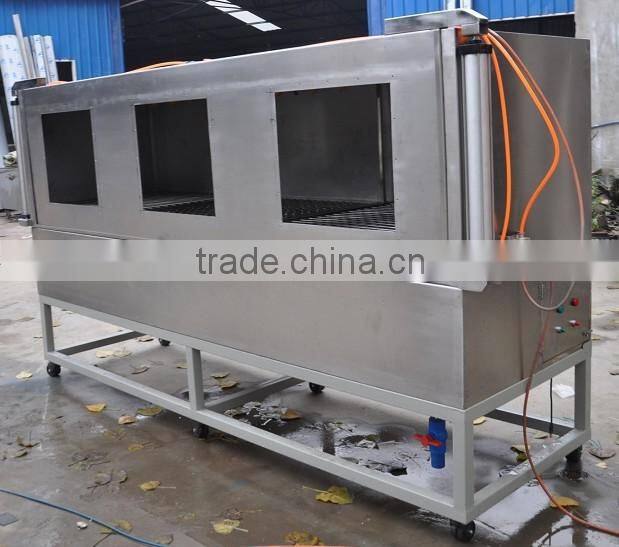

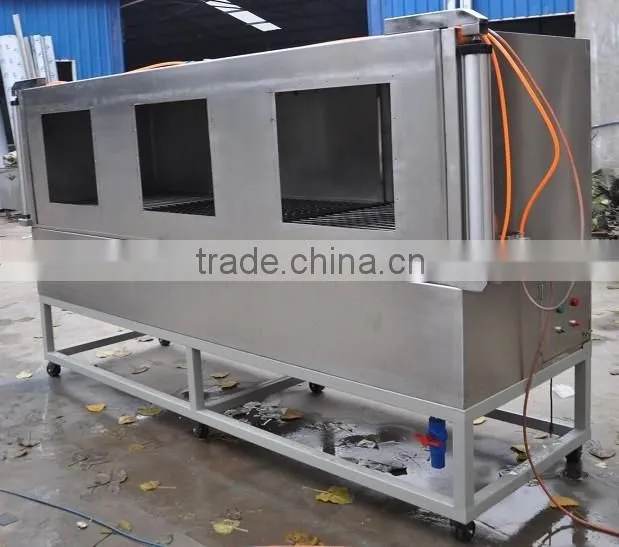

hydrographic washing machine for water transfer printing process NO. LYH-WTPM012-1

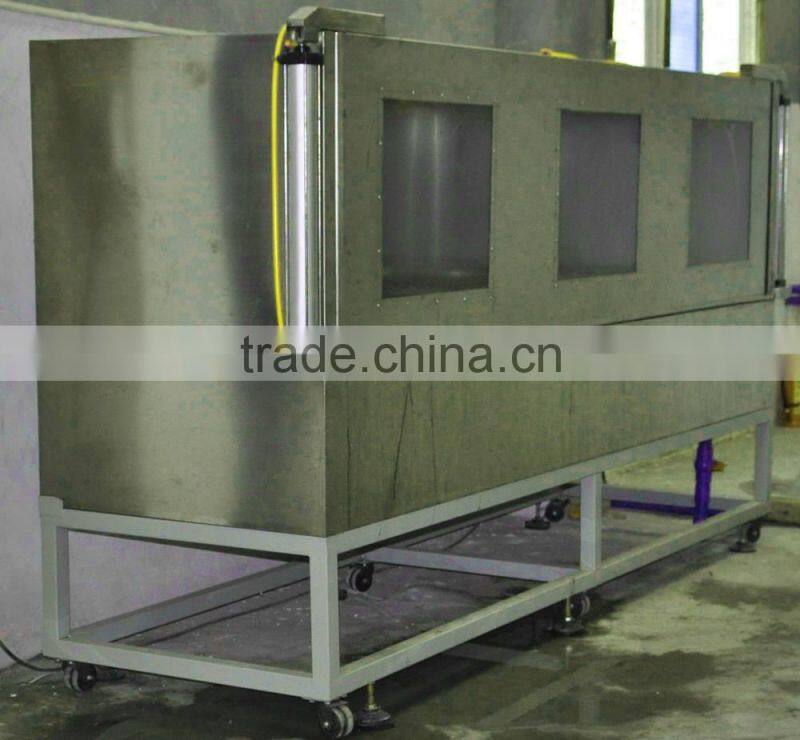

 hydrographic washing machine for water transfer printing process NO. LYH-WTPM012-1







The advantages of our machine:
1. The stainless steel of the tank is 2.5mm, so it wouldn't be out of shape after you use it some days later.
2. Good welding to make sure machine won’t leak.
3. Stainless steel pump to keep a long lifespan.





Detailed specifications:



Size

Out Size

L: 300CMX W: 100CM X H: 180CM

L: 118.1Inch X W:39.7 Inch X H: 70 Inch

Cleaning Area

L: 250CM X W: 80CM X H: 75CM

L: 98.4 Inch X W: 31.4 Inch X 70 Inch

Material

Stainless Steel

T=2.5mm+-0.2mm

Main

Components

Pneumatic valve

Capacity: 70KG, Range: 0.75 Meter

Water Recirculation System

Power: 220V, Single Phase, 50HZ, 750W

Head: 15m

Spray Nozzle

0.8mm, 40 PCS

Waved Conveyor



Pneumatic Lift

Capacity: 150 KGS

Control Panel
  1. Master Power On/Off Switch
  2. Pump On/Off Switch
  3. All the red and green lights needed for the switches.

Package

Plywood Case



Net WT

450 KGS

Gross WT

500 KGS

Package Size

L: 315CM X W: 125CM X H: 195CM

L: 124 Inch X W: 49 Inch X H: 76.7 Inch





Packaging & Shipping

Packaging

First,  packed as small size as possible to save your shipping cost.
Second, wrapped with protective films to protect machine from scratching

Last, packed with polywood case



hydrographic washing machine for water transfer printing process NO. LYH-WTPM012-1





Shipping:

EX-W, FOB, CIF, DDP and DDU are all available.

Please let us know your delivery address or sea port. Then we will quote freight for you.

Order release time: 10-15 working days after your payment.

Shipping time:

FOB: 4-6 days by truck

CIF, DDP and DDU: 1-2 month to different countries by sea



Payment:

Paypal, Western Union, T/T are available.



How to place order

1. Please send us an inquiry with products' item no., delivery address and sea port;

or click " Chat now" to chat with me online.

2. We send Proforma Invoice to you with products price and shipping cost, and you confirm the order.

3. You make the payment.

4. We prepare your products, and send them out ASAP.

5. You receive the order and send feeback to us.



WTP operation manual



Water Transfer Printing Operation Process

                                                                                           issued by Liquid Image





1. Pre-treat article







2. Printing process

hydrographic washing machine for water transfer printing process NO. LYH-WTPM012-1



 3. Washing hydrographic products

 hydrographic washing machine for water transfer printing process NO. LYH-WTPM012-1





4. Drying

 hydrographic washing machine for water transfer printing process NO. LYH-WTPM012-1


 5. Spray top coat and dry again.



Company Information

Liquid Image is a manufacturer of water transfer printing equipments and  water transfer printing films. We have been doing water transfer printing technology  over 4 years. Our customers are from all over the world. And we have agents in Australia, Colombia, South Africa, U.A.E. etc.



 hydrographic washing machine for water transfer printing process NO. LYH-WTPM012-1





Main products:

1. water transfer printing equipments:

dipping tank, washing machine, drying machine, spray booth.

There are mini, small, middle and big size machines.  You can choose manual or automatic.

hydrographic washing machine for water transfer printing process NO. LYH-WTPM012-1



2. Water transfer printing films:

Material: PVA water soluble film

Pattern: flame, skull, carbon fiber, camo, decoration, wood, animal etc. 90% patterns are our royalty designs. New patterns come out every week.  You also can customize your own design.

hydrographic washing machine for water transfer printing process NO. LYH-WTPM012-1





3. Plastic Speedshape, activator and spray gun

hydrographic washing machine for water transfer printing process NO. LYH-WTPM012-1
