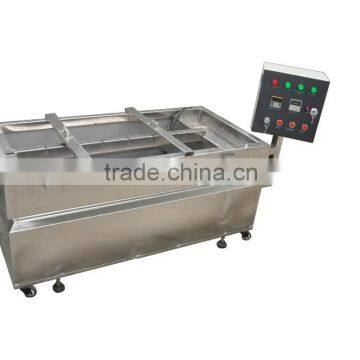

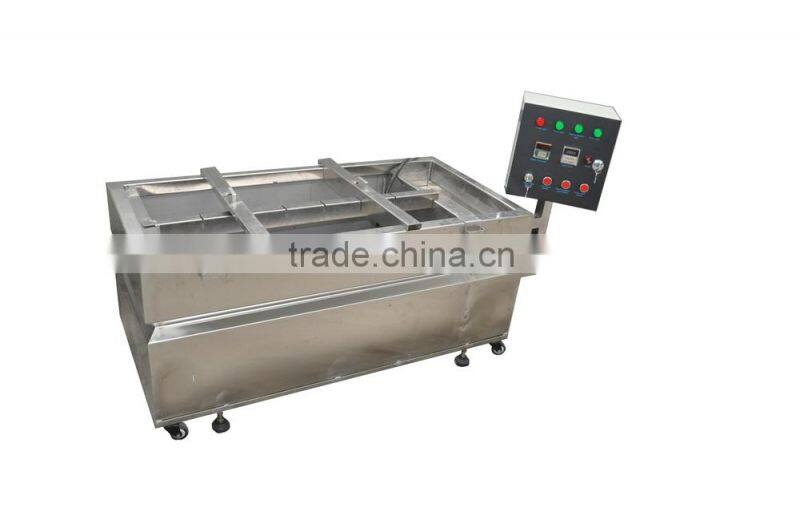

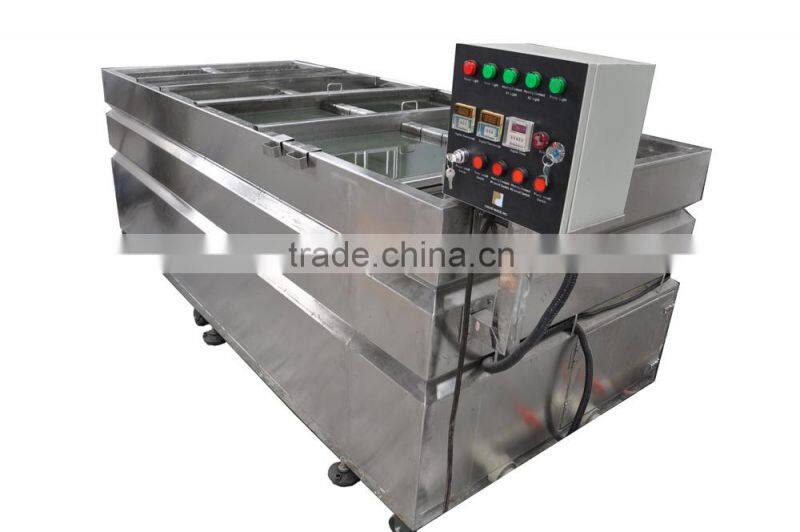

Stainless steel water transfer printing machine NO. LYH-WTPM051 liquid image manufacturer
Brand: Liquid Image
Products name: water transfer printing machine, hydrographic printing tank, hydro dipping tank, dipping kit, hydrographic equipment
Item No.: LYH-WTPM051
Materail: stainless steel
Machine state: new
Certification: CE certification
Dipping tank with dipping arm
The advantages of our tank:
1. The stainless steel of the tank is 2.5mm, so it wouldn't be out of shape after you use it some days later.
2. Good welding to make sure machine won’t leak.
3. Stainless steel pump to keep a long lifespan.
4. Beautiful control panel with black color.
5. Machine is designed by American.

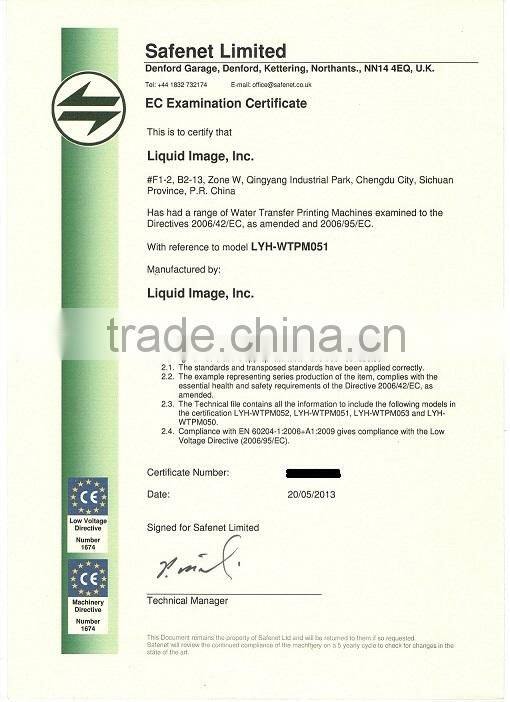

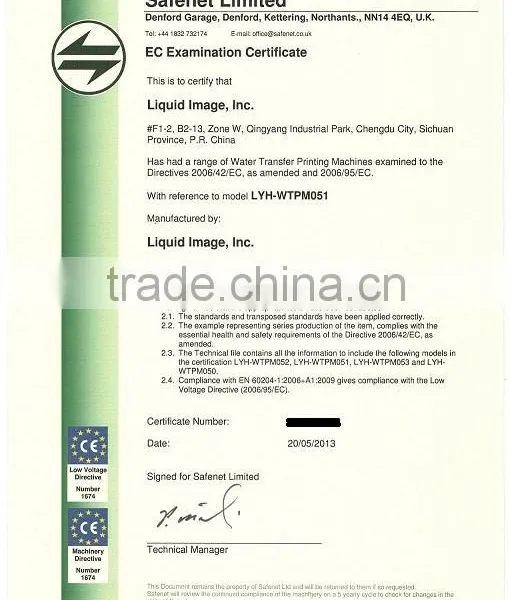

6. We have CE certification and patent, we can send you the no. for checking if you want.
7. You can choose dipping arm or not.
Detailed specifications:
Size |
Outside Size |
L: 240cm x W: 120cm x H: 100cm L: 94.4 Inches X W: 47.2 Inches X H: 39.7 Inches |
Dipping Area |
L: 200cm x W: 110cm x H: 85cm L: 78.7 Inches X W: 43.3 Inches X H: 33.4 Inches |
|
Material |
Stainless Steel |
T=2.5 mm+-0.2mm |
Main Components |
Heating Elements |
3 Sets, 220v, Single Phase, 50 Hz, 6000w |
Water Recirculation System |
Stainless Pump, 220v, Single Phase, 50 Hz, 750w |
|
Control Panel |
|
|
Water Capacity |
1.6 Ton |
|
Package |
Plywood Case |
|
Net WT |
400 KGS |
|
Gross WT |
450 KGS |
|
Package Size |
L: 250cm x W: 130cm x H: 120cm L: 98.4 Inches x W: 51.1 Inches x H: 47.2 Inches |
Packaging
First, packed as small size as possible to save your shipping cost.
Second, wrapped with protective films to protect machine from scratching
Last, packed with polywood case
Shipping:
EX-W, FOB, CIF, DDP and DDU are all available.
Please let us know your delivery address or sea port. Then we will quote freight for you.
Order release time: 10-15 working days after your payment.
Shipping time:
FOB: 4-6 days by truck
CIF, DDP and DDU: 1-2 month to different countries by sea
Payment:
Paypal, Western Union, T/T are available.
1. Please send us an inquiry with products' item no., delivery address and sea port;
or click " Chat now" to chat with me online.
2. We send Proforma Invoice to you with products price and shipping cost, and you confirm the order.
3. You make the payment.
4. We prepare your products, and send them out ASAP.
5. You receive the order and send feeback to us.

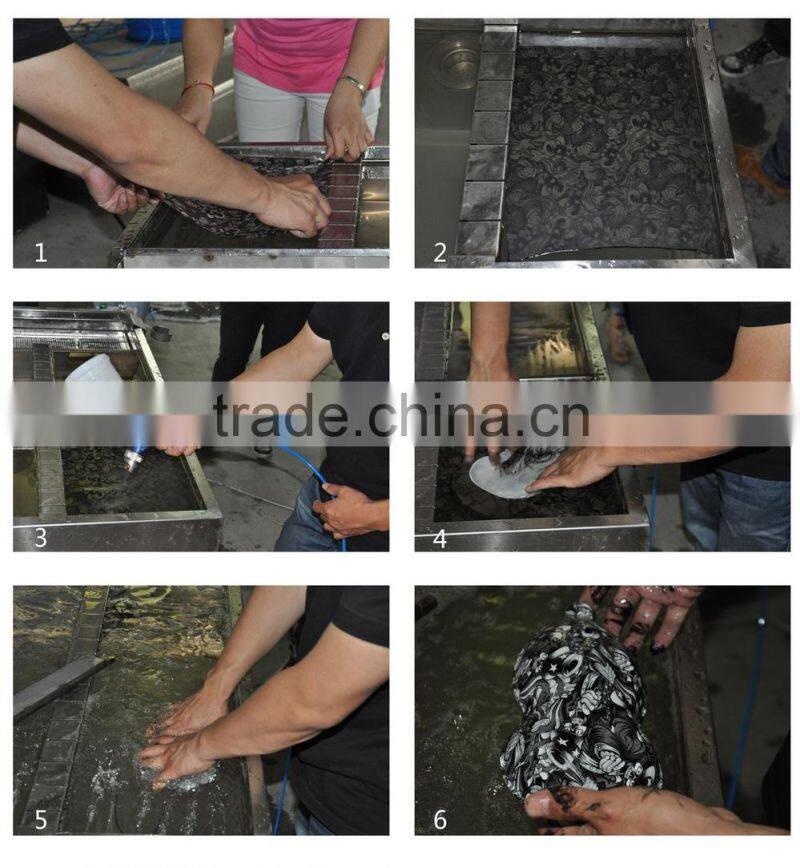

Water Transfer Printing Operation Process
issued by Liquid Image
1. Pre-treat article
2. Printing process
3. Washing hydrographic products

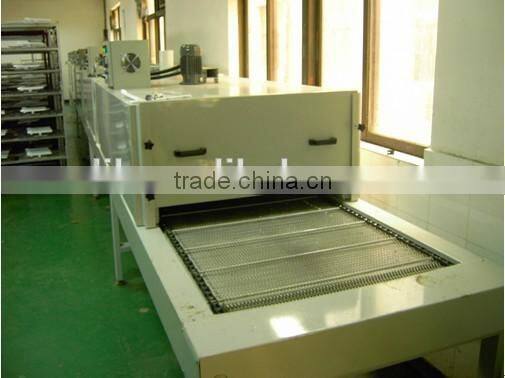

4. Drying
5. Spray top coat and dry again.
Liquid Image is a manufacturer of water transfer printing equipments and water transfer printing films. We have been doing water transfer printing technology over 4 years. Our customers are from all over the world. And we have agents in Australia, Colombia, South Africa, U.A.E. etc.
