Place of Origin Jiangsu, China
Brand Name TONGYU
Model Number TY7-TDS1302
Type Other, Tap & Die Set, Metric/UNC/UNF/BSW/BSP

Specifications

1.Alloy steel or High speed steel Material.
2.Strict heat treatment
3.Precisely Processing.
4.tap and die set

Introduction:

Taps and dies are cutting tools used to create screw threads, which is called threading. A tap is used to cut the female portion of the mating pair (e.g., anut). A die is used to cut the male portion of the mating pair (e.g., a screw). The process of cutting threads using a tap is called tapping, whereas the process using a die is called threading. Both tools can be used to clean up a thread, which is called chasing.



Specification:



Thread Taps

 We can provide taps strictly in accordance with the DIN standard.(Other standard like GOST, ISO and ANSI are also avaliable.

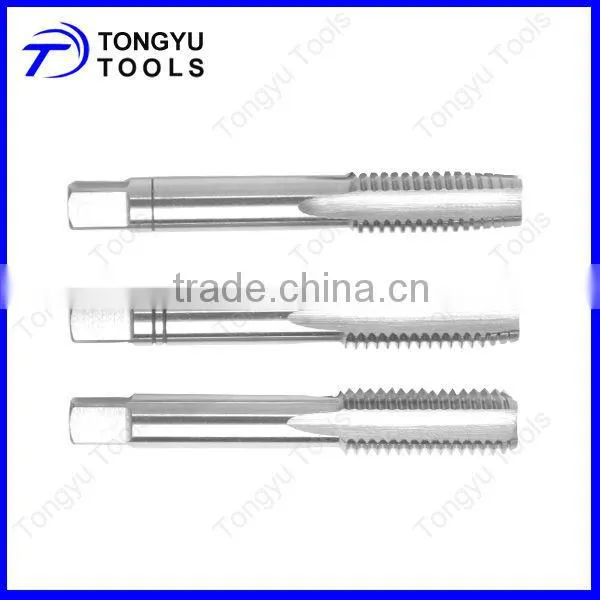

T1.DIN352 Hand Taps

1. Standard: DIN352 (Three pieces a set, Sets consist of taper, second and plug tap.)
2. Material: Alloy Steel, HSS 4241(W4Mo2Cr4V), HSS 4341(W4Mo3Cr4V),
  HSS 6542(W6Mo5Cr4V2)
3. Hardness:

Alloy steel: HRC56-58, HSS4241: HRC59-61, HSS4341:HRC63-64, HSS 6542:64-65

4. Surface

    finishing:

 Bright finishing;Tin-coated; or customization
5.Application: For drilling internal threads,  Ideal for auto repair and machinery where metric threads are specified.

6. Size:M1*0.5 To M62*4

 alloy steel or hss tap wrench die wrench DIN 352 hand taps machine taps Taps and Dies for creating screw thread tap and die set

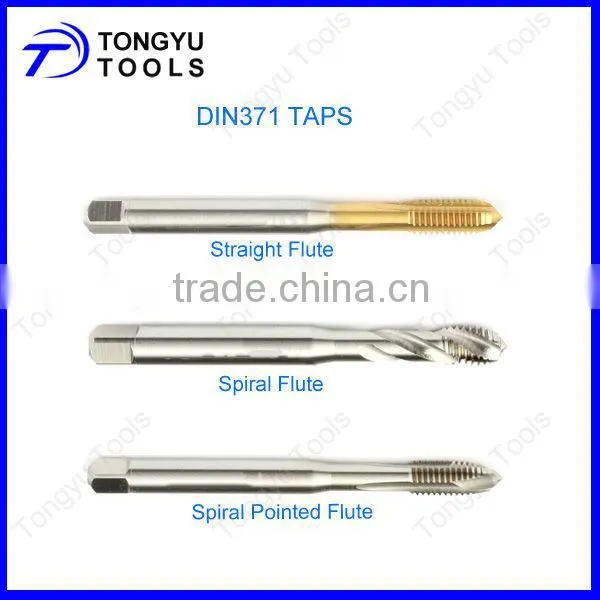

T2. DIN371 Machine Taps

1. Standard: DIN371(Metric size/UNC/UNF/BSF)
2. Material: HSS 4341(W4Mo3Cr4V), HSS 6542(W6Mo5Cr4V2), M35 (W6Mo5Cr4V2Co5)
 3. Flute: Straight flute;Spiral flute;Spiral pointed flute
3. Hardness:

HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67

4. Surface

    finishing:

 Bright finishing;Tin-coated; or customization
5.Application: For drilling internal threads.

6. Size:M1.6*0.35 To M10*1.5

           1/16BSW To 3/8-20BSF

           NO.1-64UNC To 3/8-16UNC

           NO.1-72UNF To 3/8-24 UNF

alloy steel or hss tap wrench die wrench DIN 352 hand taps machine taps Taps and Dies for creating screw thread tap and die set

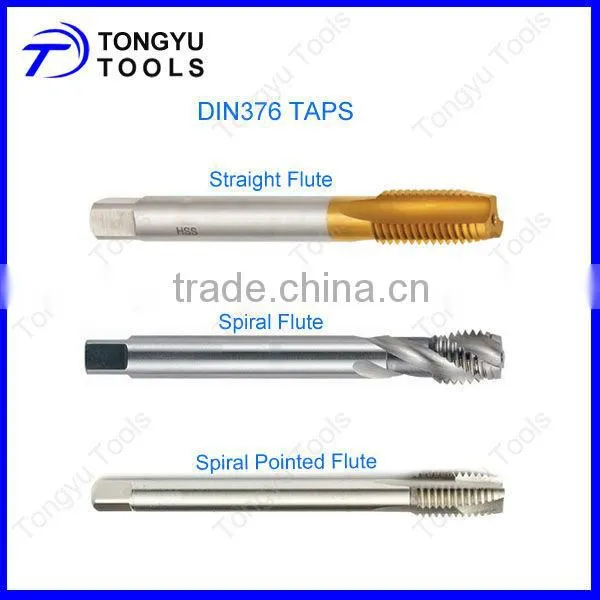

T3. DIN376 Machine Taps

1. Standard: DIN376(Metric size/UNC/BSF)
2. Material: Alloy Steel, HSS 4241(W4Mo2Cr4V), HSS 4341(W4Mo3Cr4V),
  HSS 6542(W6Mo5Cr4V2), M35 (W6Mo5Cr4V2Co5)
3. Hardness:

Alloy steel: HRC56-57, HSS4241: HRC59-61, HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67

4. Surface

    finishing:

 Bright finishing;Tin-coated; or customization
5.Application: For drilling internal threads.

6. Size:M3*0.5 To M52*5

            No.5-40UNC To 1-1/2-6UNC

            W1/4-20 To W1-1/2-6

            BSF1/4-26 To BSF1-10

alloy steel or hss tap wrench die wrench DIN 352 hand taps machine taps Taps and Dies for creating screw thread tap and die set



T4. DIN5157 Hand Pipe Thread Taps Set

1. Standard: DIN5157(2 piece a set)
2. Material: Alloy Steel, HSS 4241(W4Mo2Cr4V), HSS 4341(W4Mo3Cr4V),
  HSS 6542(W6Mo5Cr4V2), M35 (W6Mo5Cr4V2Co5)
3. Hardness:

Alloy steel: HRC56-57, HSS4241: HRC59-61, HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67

4. Surface

    finishing:

 Bright finishing;Tin-coated; or customization
5.Application: Mainly used for all kinds of inner thread machining of the pipe fittings, coupling parts

6. Size:G1/16 To G2"

alloy steel or hss tap wrench die wrench DIN 352 hand taps machine taps Taps and Dies for creating screw thread tap and die set



T5. DIN5156 Machine Pipe Taps

1. Standard:

DIN5156(Parallel pipe thread taps:G series, Rp series;

Taper pipe thread taps:BSPT series)
2. Material: HSS 4241(W4Mo2Cr4V), HSS 4341(W4Mo3Cr4V),
  HSS 6542(W6Mo5Cr4V2), M35 (W6Mo5Cr4V2Co5)
3. Hardness:

HSS4241: HRC59-61, HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67

4. Surface

    finishing:

 Bright finishing;Tin-coated; or customization
5.Application: Mainly used for all kinds of inner thread machining of the pipe fittings, coupling parts

6. Size: G1/16"-28 To G2"-11

             Rp1/16"-28 To Rp2"-11

             Rp1/8"-8 To Rp1-11

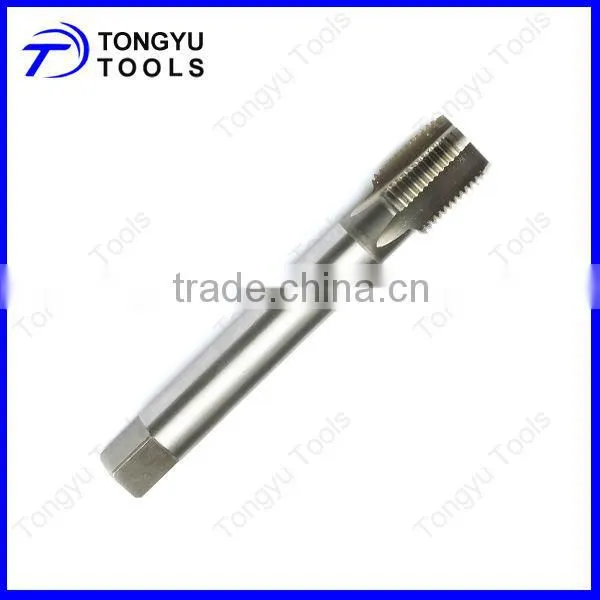

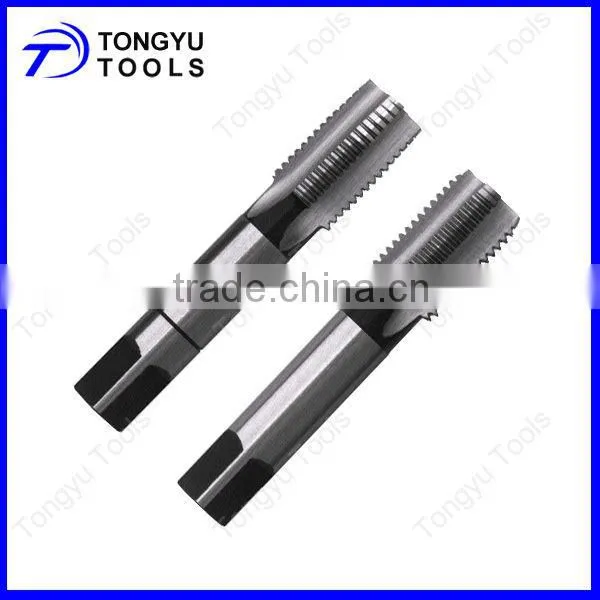

                                                    55 Degree  Parallel Pipe Thread Taps

alloy steel or hss tap wrench die wrench DIN 352 hand taps machine taps Taps and Dies for creating screw thread tap and die set

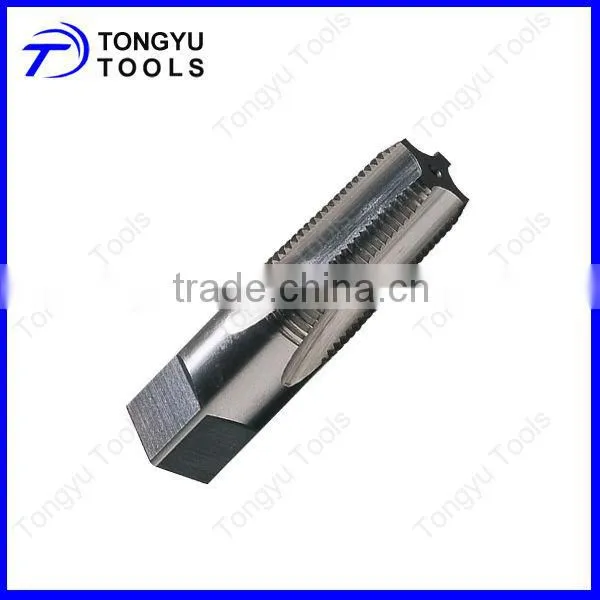

                                                 60 Degree Taper Pipe Thread Taps

alloy steel or hss tap wrench die wrench DIN 352 hand taps machine taps Taps and Dies for creating screw thread tap and die set

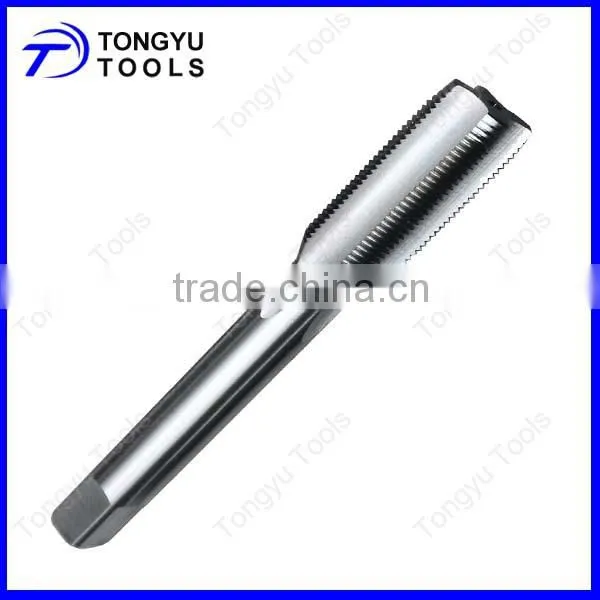

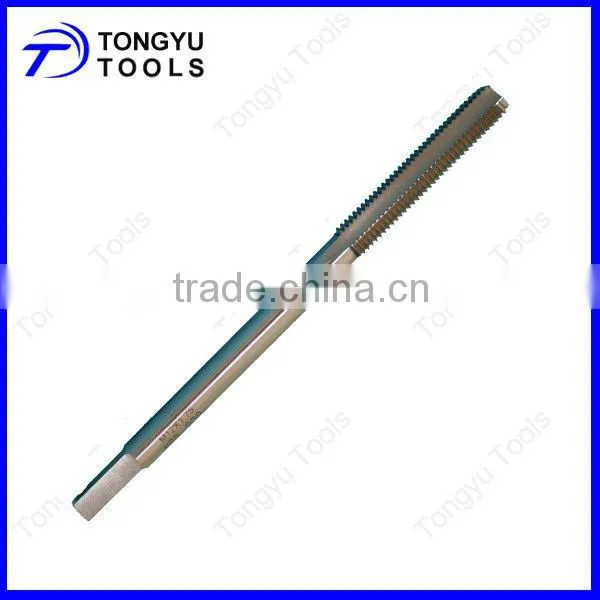

T6.DIN357 Nut Tap

1. Standard: DIN357
2. Material: HSS 4341(W4Mo3Cr4V), 6542(W6Mo5Cr4V2)
  M35 (W6Mo5Cr4V2Co5)
3. Hardness:

HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67

4. Surface

    finishing:

 Bright finishing;Tin-coated; or customization
5.Application: used to make a thread in inner part of the hole, mainly use for automatic tapping to process all kinds of nuts

6. Size: M3*0.5 To M30*3.5

 alloy steel or hss tap wrench die wrench DIN 352 hand taps machine taps Taps and Dies for creating screw thread tap and die set

The perfect form thread is generated by a combination of effective pitch diameter, major diameter

and chamfer length.



Round Dies

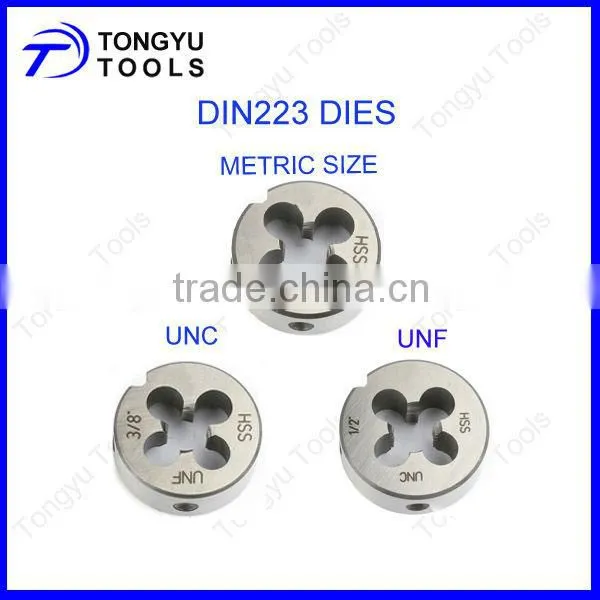

R1. DIN223 Round Dies

1. Standard:

DIN223 (Metric Size/UNC/UNF/BSW/BSF)

2. Material:

Alloy Steel, HSS 4241(W4Mo2Cr4V), HSS 4341(W4Mo3Cr4V),

HSS 6542(W6Mo5Cr4V2)

3. Type: Normal round die;adjustable round split die;
4. Hardness:

Alloy steel: HRC56-57, HSS4241: HRC59-61, HSS4341:HRC63-64, HSS 6542:64-65

5. Surface

    finishing:

 Bright finishing;Tin-coated; or customization
6.Application: For making outer threads

7. Size: M1*0.2 To M68*6

             NO.O-80UNF To 1-1/2"-12UNF

             NO.1-64UNC To 2-3/4"-4UNC

             1/8"-40BSW To 2-3/4"-3-1/2"BSW

             3/16"-32BSF To 2-3/4"--6BSF

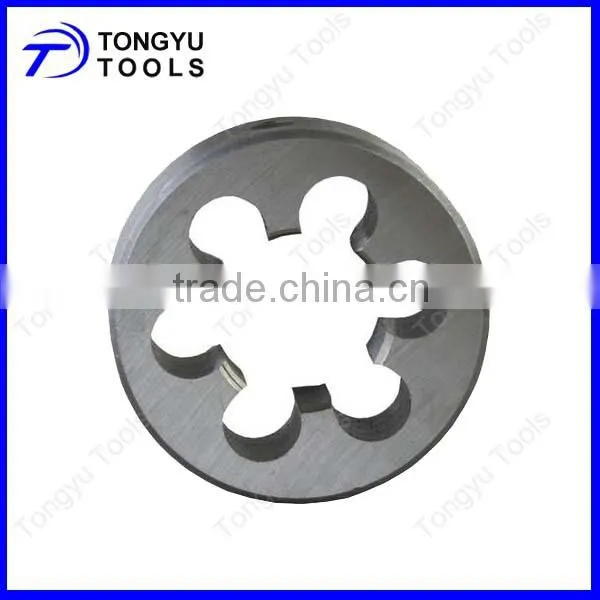

                                                          Normal Round Dies

alloy steel or hss tap wrench die wrench DIN 352 hand taps machine taps Taps and Dies for creating screw thread tap and die set

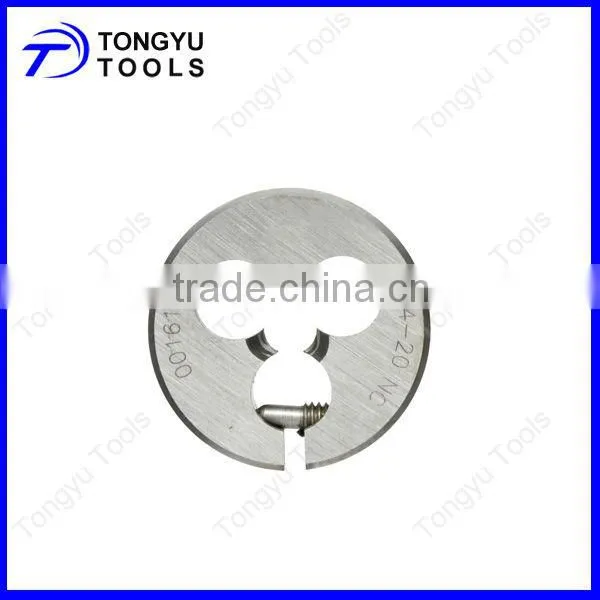

                                                        Adjustable Round Dies

alloy steel or hss tap wrench die wrench DIN 352 hand taps machine taps Taps and Dies for creating screw thread tap and die set



R2. Pipe Dies

1. Standard:

DIN5158(Parallel pipe thread dies)

DIN5159(Taper pipe thread dies)
2. Material:

Alloy Steel, HSS 4241(W4Mo2Cr4V), HSS 4341(W4Mo3Cr4V),

HSS 6542(W6Mo5Cr4V2)

3. Hardness:

Alloy steel: HRC56-57, HSS4241: HRC59-61, HSS4341:HRC63-64, HSS 6542:64-65

4. Surface

    finishing:

 Bright finishing;Tin-coated; or customization
5.Application:  Used in threading pipe fittings.

6. Size:  G1/16A To G2A

              R1/16 To R2

alloy steel or hss tap wrench die wrench DIN 352 hand taps machine taps Taps and Dies for creating screw thread tap and die set
