Specifications
HSS Circular Saw Blade for Metal Cutting2, TIALN surface coating
3, Used in Semi-automatic saqing machine.
4. Teeth type:BW

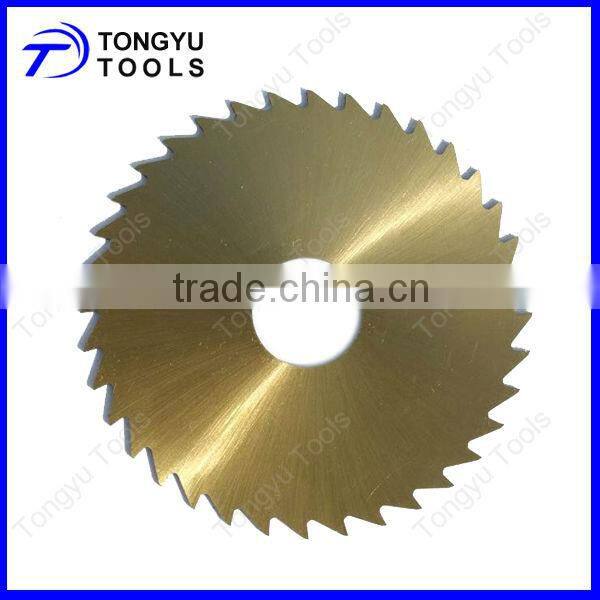

HSS Circular Saw Blade for Metal Cutting
1, Circular saw blades in HSS-DMO5
2, TIALN surface coating
3, Used in Semi-automatic saqing machine.
High speed steel molybdenum M2
Circular saws in high speed steel (5% molybdeunm content) suitable for cutting-off steels and alloys with hardness between 500N/mm and 800N/mm. The saw blades are used on manual semi-automaticand fully auto-matic sawing machine.

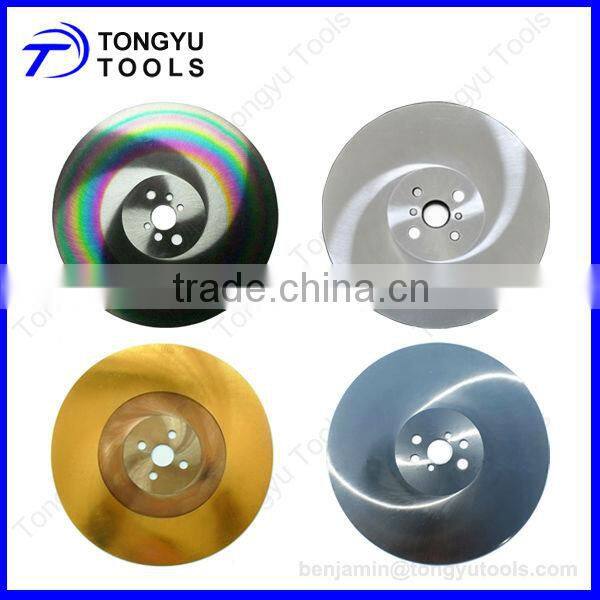

We can supply the following surface coated. :
- Special Oxidation-VAPO
- Titanium Nitrider Coating-TIN
- Titanium Aluminium Nitride Coating-TIALN
- Titanium Carbonit Nide Coating - TICN
- Chromium Nitride Coating-Crn
Surface Coating Introduction
It produces a layer of iron oxide (Fe3O4) on the surface, which increases the wear-resisting and increased the overall life. The saw blades are used on semi-automatic and fully automatic sawing machine. | |
| This is an excellent PVD coating for protecting saw blades from wear, which is a good choice for iron based material and cutting conditions requiring resistance to both abrasive and adhesive wear. |
|
| TIALN is a new multi-layer wear protection PVD coating. Recommended for high tensile strength material above 800N/mm and stainless steel. Responds very favourably to high speed and feed rates as rates well as extreme working conditions like dry cutting. |
|
| TICN is as "high performance" PVD coating suitable for severe abrasive wear cutting conditions. Recommended for high tensile strength material above 800N/mm and stainless steel. Especially for cutting the material in high speed and feed rates. Coating thickness 0.003mm. | |
| CrN is a specialized PVD coating that resists adhesive wear, corrosion and oxidation. Strongly recommended for cutting copper and titanium It has obtianed achievements in cutting off operations of brass, bronze and other light alloys. |
|
Material of HSS Circular Saw Blade
| HSS DMo5=M2=DIN 1 3343 | It is molybdenum series, so it has excellent tenacity |
| HSS DMo5 Co=M35=DIN 1.3243 | It contains 5% cobalt. It has excellent wear-resistance. |
| Oher material | W9 and W5 |
HSS-DMo5
High speed steel molybdenum M2
CIRCULAR SAWS IN HSS-DMo5
Circular saws in high speed steel (5% molybdeunm content) suitable for cutting-off steels and alloys with hardness between 500N/mm and 800N/mm. The saw blades are used on manual semi-automaticand fully auto-matic sawing machine.
HSS-Co5%
CIRCULAR SAWS IN HSS-CO5%
Circular saws in super high speed steel (5% cobalt content) suitable for cutting off steels and alloys with hardness above 800N/mm The saw blades are used on semi-automatic and fully automatic sawing machine.

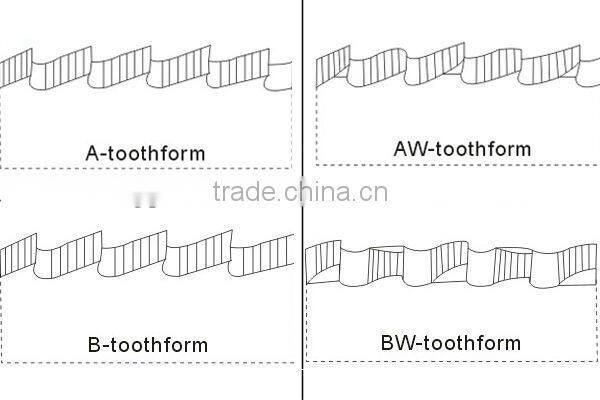

Type of Teeth
| Diameter | Thickness | Bore Dia | Teeth Type | Teeth NO. |
| mm | mm | mm | ||
| 175 | 1.2/1.5/2.0 | 32 | Bw | 180 |
| 200 | 1.0/1.2/1.5/1.6/1.8/2.0/2.5 | 32 | Bw | 200 |
| 210 | 2.0 | 32 | Bw | 210 |
| 225 | 1.2/1.5/1.6/1.8/1.9/2.0/2.5 | 32/40 | Bw | 220 |
| 250 | 1.0/1.2//1.5/1.6/2.0/2.5/3.0 | 25.4/32/40 | Bw | 250 |
| 275 | 1.6/2.0/2.5/3.0 | 25.4/32/40 | Bw | 280 |
| 300 | 1.6/2.0/2.5/3.0 | 32/40 | Bw | 300 |
| 315 | 1.6/2.0/2.5/3.0/3.5 | 32/40 | Bw | 300 |
| 350 | 1.8/2.0/2.5/3.0/3.5 | 32/40/50 | Bw | 350 |
| 400 | 2.5/3.0/3.5/4.0 | 40/50 | Bw | 350 |
