White SMD LED 3528 Warm White, Cool White
- Shanghai or Ningbo
- T/T D/P D/A Credit Card PayPal
You May Like
-
High Brightness 3528 SMD LED Warm White, Cool White
-
White SMD LED 3528 6-8lm Warm White, Cool White in Low Price
-
White SMD 3528 LED 5-8lm With RoHS Approved
-
Cheap 3528 Smd Led White Color With RoHS Approved
-
Bright Led 3528 Smd White Color With RoHS Approved
-
Smd 3825 Led White Color With RoHS Approved
Product Details
| Model Number | ATI-3528SXW01-C | Chip Material | InGaN | |
| Emitting Color | Cool White | Luminous Intensity | 3000mcd | |
| Luminous Flux(lm) | 6 | Optical Attenuation(%) | 0.005 | |
| Power | Other, 0.1 | Power Dissipation | 0.006 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 2200~8200 | |
| Operating Temperature(℃) | -30, 80 | Storage Temperature(℃) | -30, 80 | |
| Place of Origin | Jiangsu, China | Brand Name | ATI- SMD LED 3528 white | |
| Certification | CE |
Product Description
ATI SMD LED 3528 White
Features—Our Products Stand out of Others
1.Over 12 years LED-producing experience as the vendor of Samsung,Haier,LG etc.
2.Big scale of producing makes sure that your purchase cost is lower but with higher quality.
3.Advanced production line guarantees stable quality and longer life span.
4.Use the most mature international well-known LED chip from Epistar as the light source, which can ensure the SMD LED brightness and long lifetime, also can reduce the light decay.
5. Electrodes are made of copper with silver plating which leads to best quality and longer life span.

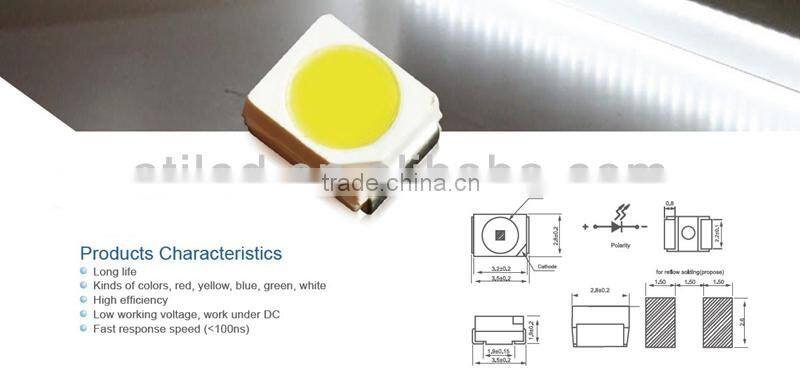

Product Exhibition—Show the Details for You
ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:
Part No | Emitting Color | Color Temp(K) | Luminous Flux(Lm) | VF(V) | IF(MA) | CRI(Min) |
ATI-3528SWW01-M | Warm White | 2800-3300 K | 6-9 Lm | 3.0-3.6V | 20 mA | 70 |
ATI-3528SNW01-C | White | 4500-5600 K | 6-9 Lm | 3.0-3.6V | 20 mA | 70 |
ATI-3528SCW01-M | Cool White | 5400-7700 K | 6-9 Lm | 3.0-3.6V | 20 mA | 70 |
ATI-3528SWW02-M | Warm White | 2800-3300 K | 10-13 Lm | 3.0-3.6V | 30 mA | 70 |
ATI-3528SNW02-C | White | 4500-5600 K | 10-13 Lm | 3.0-3.6V | 30 mA | 70 |
ATI-3528SCW02-M | Cool White | 5400-7700 K | 10-13 Lm | 3.0-3.6V | 30 mA | 70 |

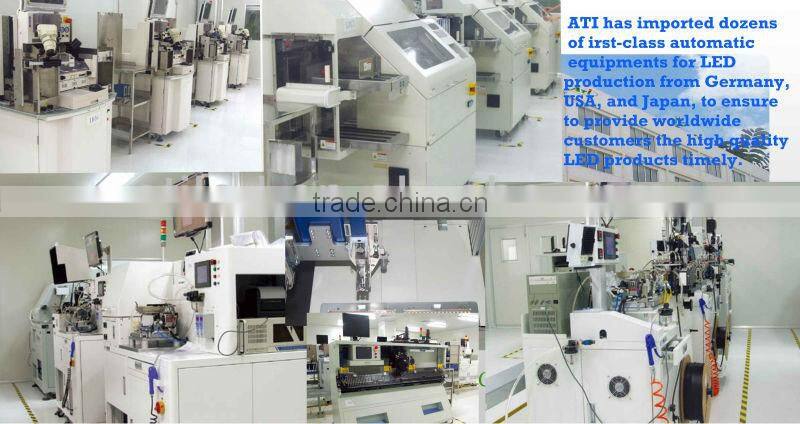

Automatic SMD LED Production Line—High Quality Low Rejection
Perfect Product Package—We Care about Your Goods and You
LED Product Certificates—No Worry for Our Products

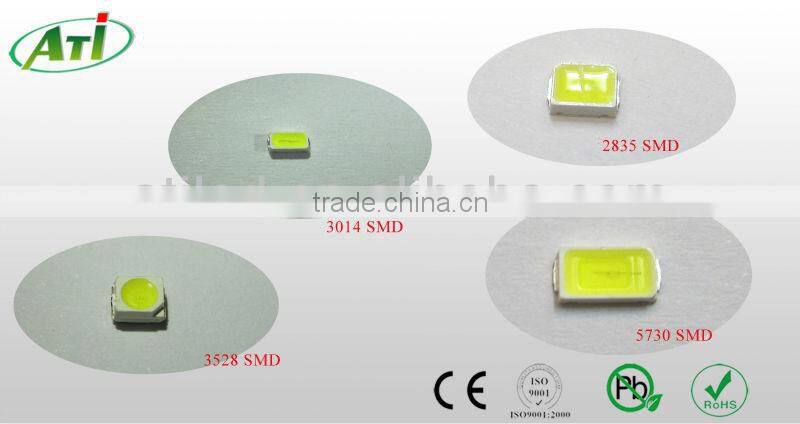

SMD LED Series —More Choices for Your Purchase
More Information, You Could Easily Contact Us
