ATI Warm White 5730 SMD LED
Features—Our Products Stand out of Others
1.Over 12 years LED-producing experience as the vendor of Samsung,Haier,LG etc.
2.Big scale of producing makes sure that your purchase cost is lower but with higher quality.
3.Advanced production line guarantees stable quality and longer life span.
4.Use the most mature international well-known LED chip from Epistar as the light source, which can ensure the SMD LED brightness and long lifetime, also can reduce the light decay.
5. Electrodes are made of copper with silver plating which leads to best quality and longer life span.

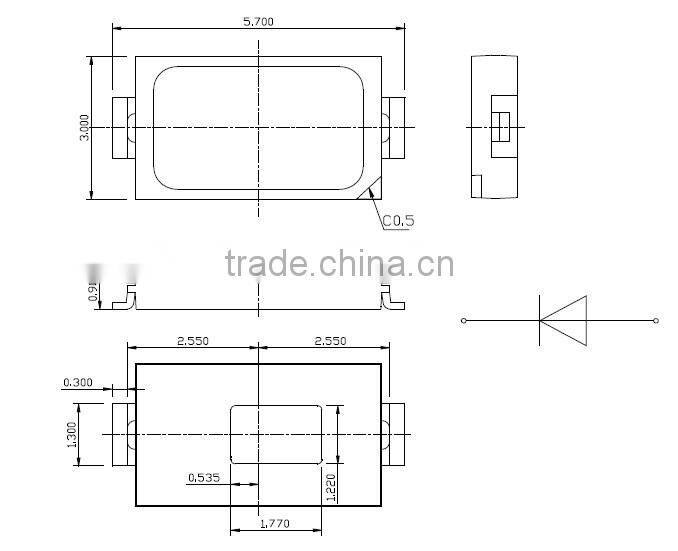

Product Exhibition—Show the Details for You
WHITE 5730/5630 SMD ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:
Part No | Emitting Color | Color Temp(K) | Luminous Flux(Lm) | VF(V) | IF(MA) | CRI(Min) |
ATI-5630SWW05-M | Warm White | 2800-3300 K | 55-60 Lm | 3.0-3.8V | 150 mA | 80 |
ATI-5630SNW05-C | White | 4500-5900 K | 55-60 Lm | 3.0-3.8V | 150 mA | 80 |
ATI-5630SCW05-M | Cool White | 5800-8600 K | 55-60 Lm | 3.0-3.8V | 150 mA | 80 |
ATI-5730SWW05-C | Warm White | 2800-3300 K | 55-60 Lm | 3.0-3.8V | 150 mA | 80 |
ATI-5730SNW05-C | White | 4500-5900 K | 55-60 Lm | 3.0-3.8V | 150 mA | 80 |
ATI-5730SCW05-C | Cool White | 5800-8600 K | 55-60 Lm | 3.0-3.8V | 150 mA | 80 |
Automatic SMD LED Production Line—High Quality Low Rejection
Perfect Product Package—We Care about Your Goods and You
LED Product Certificates—No Worry for Our Products
SMD LED Series —More Choices for Your Purchase
More Information, You Could Easily Contact Us
