US$ 0.01 - 0.03 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
ATI-RGBLED-SLM
Chip Material:
AlGaInP
Emitting Color:
Tri-Color(Red-Blue-Green)
Contact Supplier Request Quote Chat Now
ATI Electronics Technology Limited (Wuxi)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number ATI-RGBLED-SLM
Chip Material AlGaInP
Emitting Color Tri-Color(Red-Blue-Green)
Luminous Intensity Red:500~600mcd; Pure Green: 1500~2000mc; Blue:500~700mcd
Luminous Flux(lm) 1000LM
Optical Attenuation(%) 3%
Power 0.1W
Power Dissipation 0.06
Color Rendering Index(Ra) 85
Color Temperature 2200-10000K
Operating Temperature(℃) -25, 60
Storage Temperature(℃) -40, 80
Place of Origin Jiangsu, China
Brand Name ATI- RGB LED
Certification CE

ATI RGB LED Features

OUR RGB LED Product Stand out of Others



Over 12 years producing experience as the vendor of Samsung,Haier,LG etc.

Big scale of producing makes sure that your purchase cost is lower.

Advanced production line guarantees stable quality and long life span.

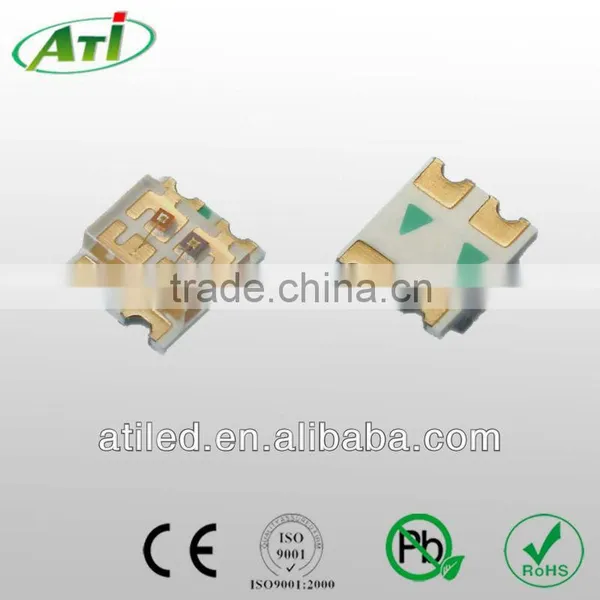

We are producing0805RGB LED; 0603RGB LED; 5050 RGB LED; 5mm RGB LED; 3W RGB LED.

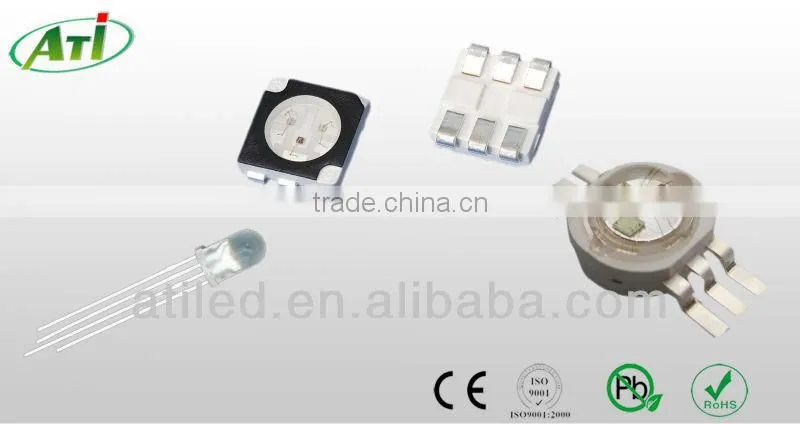

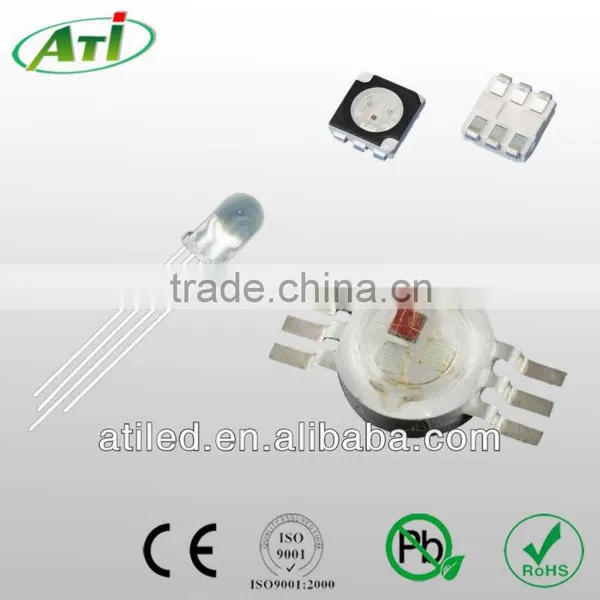

 RGB LED, CE and ROHS apprved DIP RGB LED, SMD RGB LED and high power RGB LED

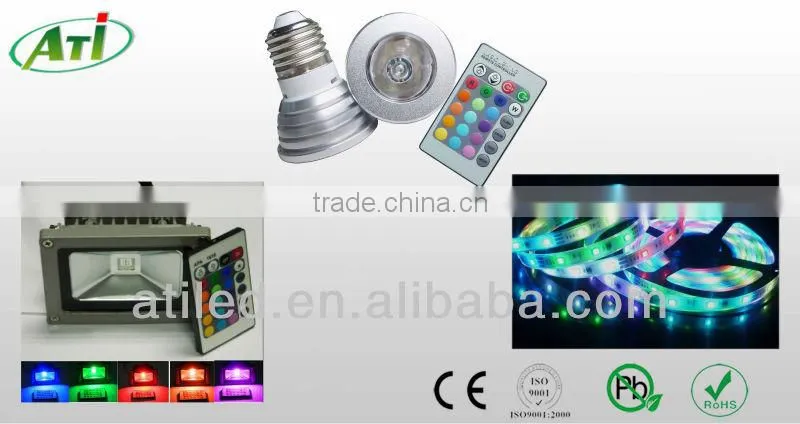

RGB LED application Indoor lighting: Christmas RGB LED strips;RGB down light; RGB flood light; RGB Landscape lighting, etc.











RGB LED, CE and ROHS apprved DIP RGB LED, SMD RGB LED and high power RGB LED









ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:



PARAMETER

SYMBOL

TEST CONDITION

Color

MIN

TYP

MAX

UNIT

Forward Voltage

VF

IF=20mA

Red

1.8

1.9

2.3

V

BL

3.2

3.4

3.6

PG

    3.0

3.2

3.4

Luminous Intensity

IV

IF=20mA

Red



600



MCD

BL



600



PG



1800



Peak Emission Wavelength

λP

IF=20mA

Red

620

----

630

nm

BL

460

---

465

PG

520

----

525

Reverse Current

IR

VR=9V

     R&BL&PG



5

μA



Perfect Product Package—We Care about Your Goods and You







High Level Production Line

RGB LED, CE and ROHS apprved DIP RGB LED, SMD RGB LED and high power RGB LED





We are approved

RGB LED, CE and ROHS apprved DIP RGB LED, SMD RGB LED and high power RGB LED
