0603 green smd led chip features—Our Products Stand out of Others
Over 12 years producing experience as the vendor of Samsung,Haier,LG etc.
Big scale of producing makes sure that your purchase cost is lower.
Advanced production line guarantees stable quality and long life span.
ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:
Parameter |
Symbol |
Condition |
Min |
Typ. |
Max |
Unit |
Luminous Intensity |
Iv |
IF=20mA |
|
150 |
|
mcd |
Dominant Wavelength |
λD |
IF=20mA |
565 |
570 |
575 |
nm |
Peak Emission Wavelength |
λp |
IF=20mA |
|
570 |
|
nm |
Viewing Angle |
2θ1/2 |
IF=20mA |
|
120 |
|
Deg |
Forward Voltage |
VF |
IF=20mA |
1.7 |
2.1 |
2.4 |
V |
Reverse Current |
IR |
VR=5V |
|
|
10 |
μA |

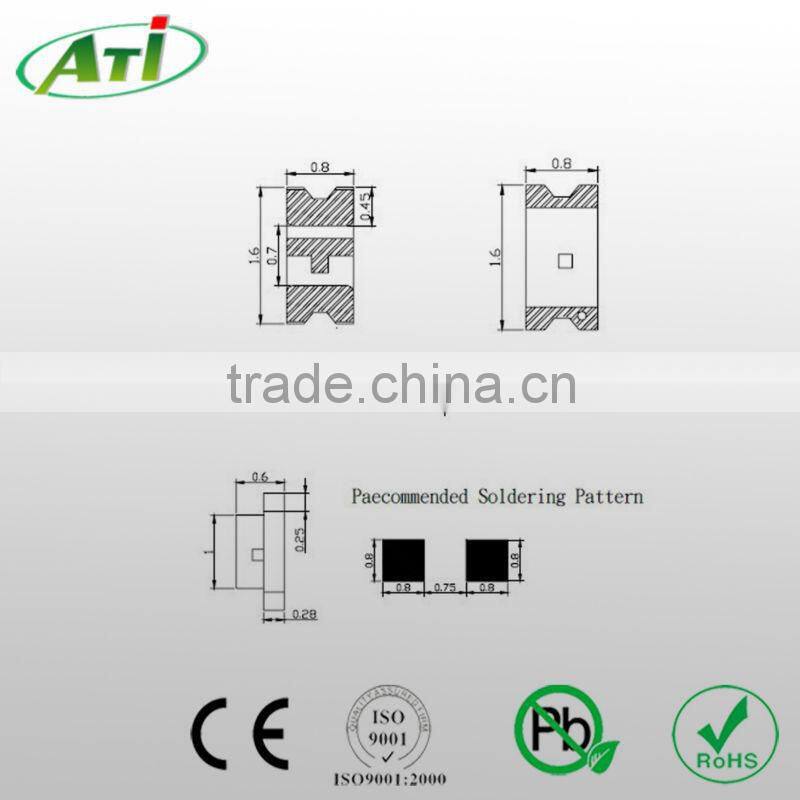

0603 smd led dimension draw
0603 SMD LED Package—We Care about Your Goods and You
Our New Production Line—Make Your Choice to be The Best
Our Certifications—No Worry for Our Products
SMD LEDs —More Choices for Your Purchase
More Information, You Could Easily Contact Us
