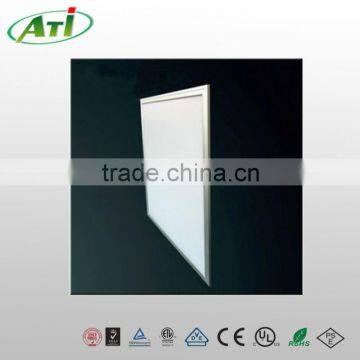

30x30 LED Panel Light, LED Panel Light

US$ 15 - 90 MOQ: 1 Piece

Key Specifications

LED Light Source:

LED FRIEND

Warranty(Years):

Input Voltage(V):

ATI Electronics Technology Limited (Wuxi)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai; Ningbo

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source LED FRIEND

Warranty(Years) 3

Input Voltage(V) 1

Lamp Power(W) 60

Lamp Luminous Flux(lm) 4500

Lamp Luminous Efficiency(lm/w) 75

Color Temperature(CCT) Pure White

Working Temperature(℃) -20, +60

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum Alloy

IP Rating IP55

Certification CCC, CE, Energy Star, EMC, PSE, UL

Place of Origin Jiangsu, China

Brand Name ATI

Model Number ATI.12.Y008.P18S02A

Specifications

1. No flicker, nice looking
2. Ultra slim 10mm
3. Super bright>75lm/W
4. CRI>72
5. Japanese Mitsubishi LGP, Taiwan LED.

Product Features

With External power supply, Driver input voltageAC85-265V, 50/60Hz; Lighting input voltageDC30-42V, Constant current.
PF>0.95, Power Efficiency: >0.85
Material: AL+PMMA+PC Diffuser
Protection grade IP42; Insulation class II.
Ambient temperature:-20°C~45°C, Surface temperature: 42°C~45°C; Relative humidity 10%-80%RH.
Energy-saving, Super bright, environmental-friendly, saving 65% energy than the traditional panel lights.
Uniform light output, bright and comfortable, alleviating eye fatigue, wide beam angle
Under the condition of voltage instability, the LED panel light could work properly.

Product Details -------- Parameters

Electrical Characteristics		Optical Properties
Power Supply	With External Constant Current Power Supply	LED Type	SMD3014
Input Voltage	AC85-265V / 50-60Hz	LED Q’ty	120 pcs
Working Voltage	DC30-42V 400mA	Lumen	1350-1530 lm
Power	18W	CRI	70 Ra or 80 Ra
Power Factor	0.90-0.95	Beam Angle	120°
Life Time	50000H	CCT	2800-3200K/4000-4750K/ 5500-6500K
Standard Dimensions
Product Dimension	N.W.	Packing Dimension	G.W.
29529510 mm	1.1 kg	37345.5 cm	1.5 kg

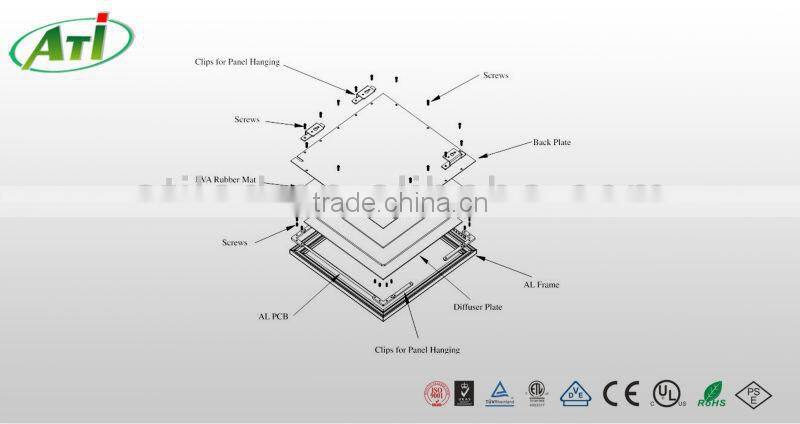

Product Details --------Product Structure

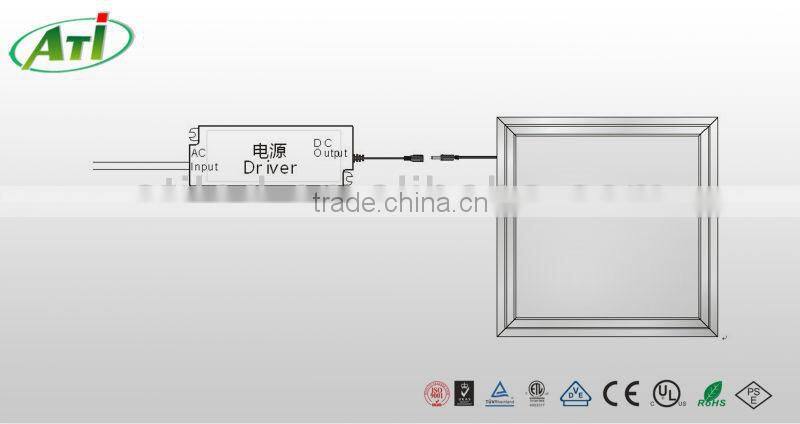

Product Details ------- Connection Way

Product Details ------- Packing Details
