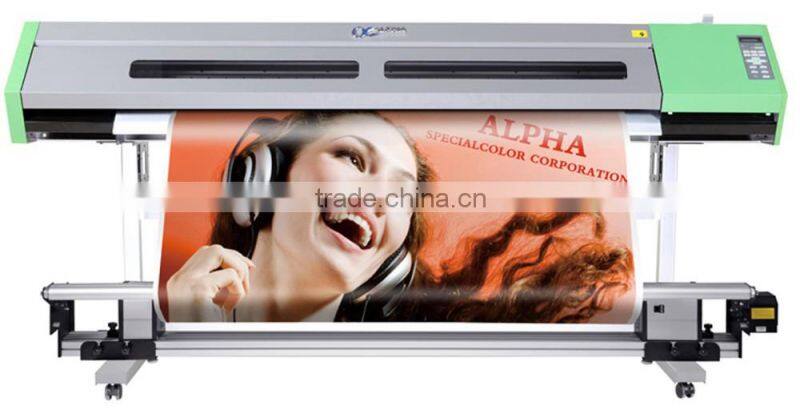

Help CenterAlpha 1.6m Water Based Printer,sublimation Printer for Indoor Printing Jobs
Related Products
-
1.62m Water Based DX5 Print Head Digital Ink Jet Printer AlphaNegotiableMOQ: 1 Set -
Eco Solvent Large Format Printer Dx5 Head Plotter SolventNegotiableMOQ: 1 Set
-
1.6 m 1440dpi Eco Solvent Printing Machine AlphaNegotiableMOQ: 1 Set
-
Water Based DX5 Print Head Digital Ink Jet Printer AlphaNegotiableMOQ: 1 Set
-
1.9m Large Format Eco Solvent Digital Printing MachineNegotiableMOQ: 1 Set
CHAMPION OF STABLE---------
----------- LONG TIME PRINTING
PRINTER INTRODUCTION
Higher Precision and Mechanical Print Head Adjustment Free
-Automatic Take-up Device (Optional)
-Top-The-Line Standard Original THK Guiding Rail
-Three-Phase Heating for Eco Solvent Printing
-High Quality & Long Duration Motor
-8-Line Independent Ink Supply System
-Automatic Cutter
-Adjustable Print Head Height
-Double 4-Color High Speed Production
FEATURE
| |
Intelligent RIP Software
ALPHA printer comes with the intuitive and highly productive RIP and design editor Photo Print , ONYX or Maintop RIP software, those RIP imports all popular file formats like Adobe Illustrator,PDF’s and JPEG´s. |
| |
Three-Phase Heating for Eco Solvent Printing
The three independent heating systems can assure the proper temperature of media to improve the image output, and the after heating can speed up the drying and boost the efficiency of taking up media.
|
| |
Advanced Electrical Control System
Smart wide voltage ultra-integrated switch energy saving design, 100V240V adaptive wide voltage, ensure a long timestable operation of the machine. |
| |
Flawless Print Quality
Equipped with DX5 print head, using a unique and very efficient ” eclosion ” function and 7 variable droplet sizes. ALPHA printer can produce flawless high quality printouts on a variety of medias.
|
| |
Ink Dot Transformation Technology
3 kinds different sizes of the ink point realization of ink dot transformation
technology
|
| |
Automatic Cutter
With automatic cutter , you can cut your printed jobs easily
|
| |
Automatic Cleaning Function
Ensure 24hour printing without worker handle.
|
|
Speed Higher Than Single Head Printer
With two DX5 print head , by coordinating with high quality printer structure,
printing speed raising one times,real high speed 35m2/h(4 pass)
|
| Model | AJ-2601(W) | |
| Print Head | Double Heads | |
| Priting Technology | Piezoelectric Inkjet | |
| Media Width | 210-1620mm-1.6M | |
| Media Width | Type | Roll or Sheet |
| Thickness | Maximum 1.5mm | |
| Roll Weight | 25kg | |
| Ink Cartridge | Type |
Waterbead dye ink Pigment ink Sublimation ink |
| Capacity | 220ml/440ml Refill Cartridge | |
| Color | Double 4-Color (CMYK) | |
| Ink Supply | Continuous Ink Supply Cartridge | |
| Color Gamut Performance | 1670 Million Color | |
| Media Control | Automatic Feeding System and Sheet Cutter | |
| Media Sensors | Paper Sensor & Width Sensor | |
| Print Head Cleaning | Automatic Cleaning and manual cleaning | |
| Programming Language | RD-RTL,RD-PJL | |
| Interface | USB2.9/HIUSB | |
| Power Requirement | During Operation | 100V to 240V±10%,50/ 60 Hz |
| Sleep Mode | 100V to 240V±10%,50/ 60 Hz | |
| Power-saving Function | Automatic Power Saving | |
| Acousic Noise Leve | During Operation | ≤65 dB (according to ISO 7779) |
| During Standby | ≤40 dB (according to ISO 7779) | |
| Package Dimension (with stand) | 2680mm(W)x850mm(D)x790mm(H) - 1.6M Printer | |
| Weight(with stand) | 148kg ( 1.6M ) | |
| Power Consumption | ≤1500VA | |
| Environment | Power On | Temperature: 20 to 32°C Humidity: 35 to 80%RH (non-condensing) |
| Power Off | Temperature: 5 to 40°C Humidity: 20 to 80%RH (non-condensing) | |
| Accessories | Power Cord, Drain Bottle, Manual | |
APPLICATION
FACTORY SHOW
OUR SERVICE
24-Hour Online Service
Pre-Sales Service After-Sales Service
*Inquiry and consulting support * Training how to install the machine and training use
*Sample testing support * Engineers availa to service machine overseas
* View our factory * One year warranty
PACKING & DELIVERY
|
Packing |
|
Size |
2680mm(W)*850mm(D)*790mm(H) |
|
Weight |
148kg |
|
Details |
on wooden |
|
